Galvanized Wire Rope Drums with bigger groove for Cable Storage
Galvanized Wire Rope Drums with bigger groove for Cable Storage
Product introduction:

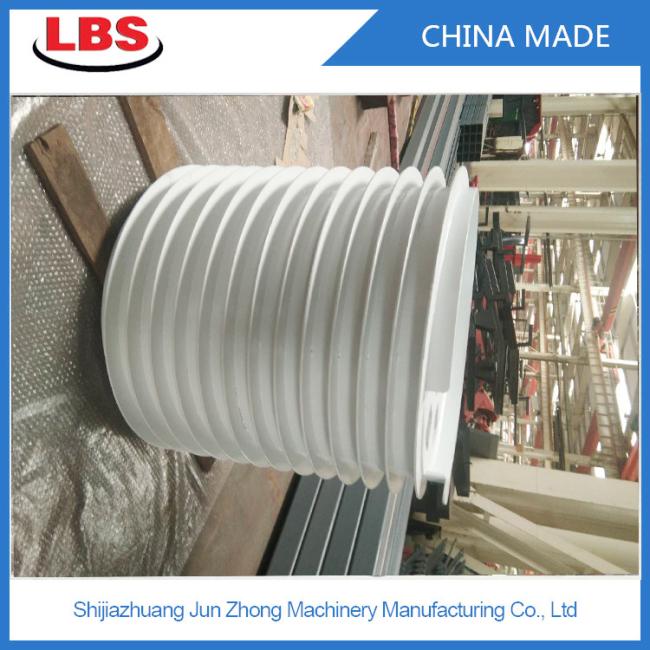

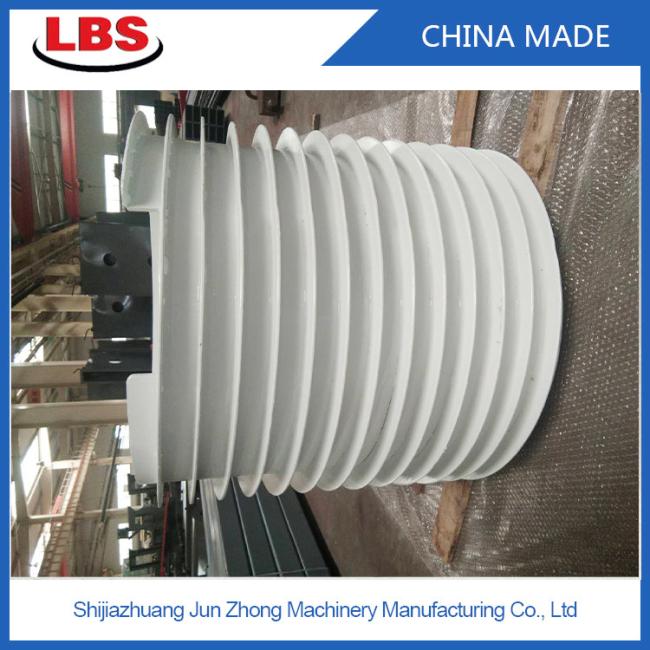

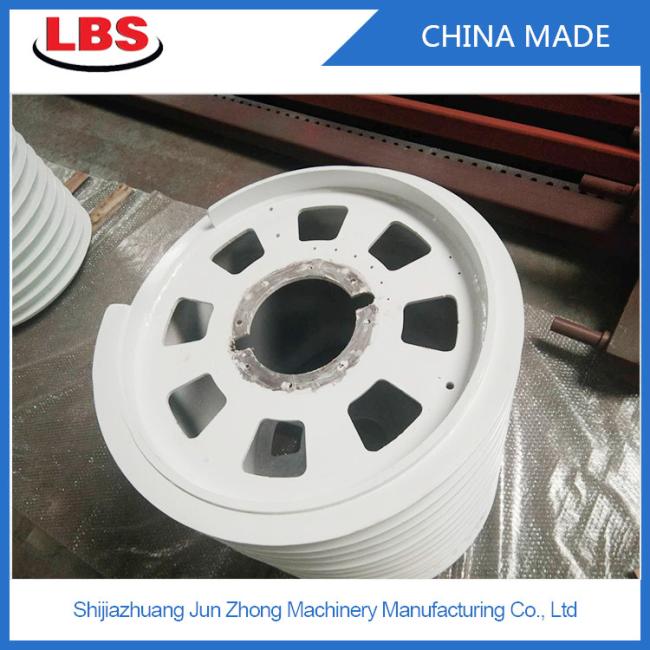

The LBSD series winch drums produced by our company are classified intro three:plain drum,helical drum and LBS grooved drum. And the winch drum is composed of drum body,flanges on both sides(baffles) and rope fixed device.
This wire rope drum always is used for storing all sort of ropes. And it also can be used for spooling in or off.
Product advantages:
| 1.The strength imposed by the wire rope can be calculated. |
| 2.Make the spooling under control,avoiding rope mess problems. |
| 3.Reduce the damage to wire rope and increase the service life of wire rope. |
| 4.Make wire rope spooling uniform distribution of load between each layer. |
Product parameters:
| Model | diameter of drum | wire rope diameter | number of layers | rope capacity | rotation direction |
| LBSD350 |
350mm |
10mm 12mm | 3 | 50m | left |
| LBSD600 | 600mm | 17mm 20mm | 4 | 150m | left |
| LBSD750 | 750mm | 21.5mm 26mm | 3 | 210m | right |
| LBSD 1100 | 1100mm |
30mm 28mm |
5 | 500m | right |
Product parameters:
| Model | diameter of drum | wire rope diameter | number of layers | rope capacity | rotation direction |
| LBSD350 |
350mm |
10mm 12mm | 3 | 50m | right |
| LBSD600 | 600mm | 17mm 20mm | 4 | 150m | left |
| LBSD750 | 750mm | 21.5mm 26mm | 3 | 210m | left |
| LBSD 1100 | 1100mm |
30mm 28mm |
5 | 500m | right |
Product application:
1.Offshore marine mechinery:offshore oil crane winch,mooring winch,traction winch,Man-riding winch and anchor winch.
2.Engineer machinery:cable winch,tower crane,pile driver,hydraulic winch.
3.Oil industry:Oil drilling rig and oil workover rig
4.building machinery:construction winch such as wall-cleaning winch,winding hoist and windlass.
5.Mining winch:dispatching winch,traction winch and sinking winch.
6.Hoist machinery:bridge crane,tower crane,portal crane and crawling winch.
After-sales Service
1. Provide technical advice during installation process;
2. In warranty period, if a quality-related problem occurs in normal use, please send a written description of the problem to us. We will respond within 24-48 hours.
3. Even if the warranty has expired, we are still glad to solve problems that are not due to improper use for you. All repairs will be billed at cost, and for long term, we supply spare parts at favorable price.
