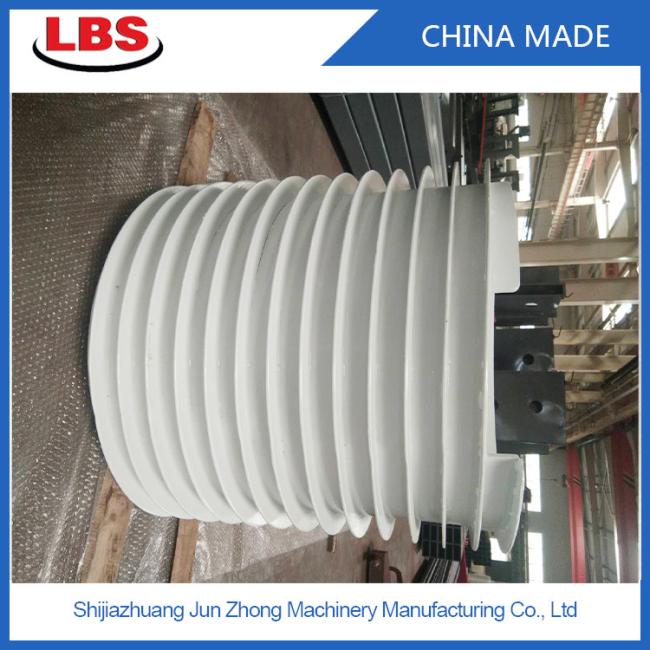

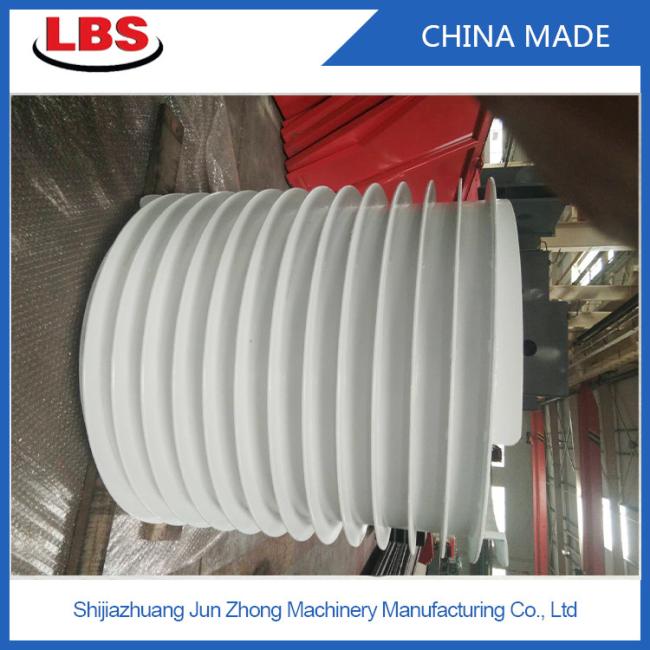

Drums-Smooth & Grooved /Customization LBS Grooved Winch Drum for Spooling

Title:Drums-Smooth & Grooved /Customization LBS Grooved Winch Drum for Spooling

Product overview:

Processing equipment:CNC machining center

Rotation direction:left or right

Rope inlet:on the side of flanges

Rope-fixed device: Yes

Drum capacity:3m-10000m

Rope diameter:3mm-190mm

Customization:yes

Main products-LBS Grooved drum and Split sleeves

• the split-type groove generally can be mounted on a smooth, grooveless drum-for for retrofit or where the drum needs to be replaced.
• The split -type sleeve system consists of a pair of outer casings that are bolted or assembled on a smooth light cylinder, so that the outer surface of the cylinder becomes a grooved form, and the split sleeve is composed of a spiral groove and a parallel groove, and the groove is formed. The design conforms to the specific rope structure, diameter and length.
• LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating.

Product parameters:

Product Application:

1. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
2. The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
3. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
4. The construction machinery: Building wipe wall winch, Winding hoist, Windlass
5. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
6. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
