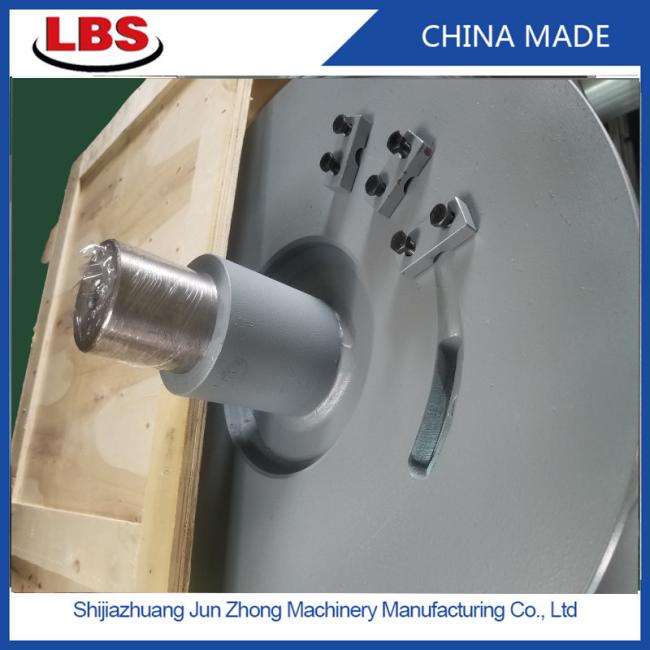

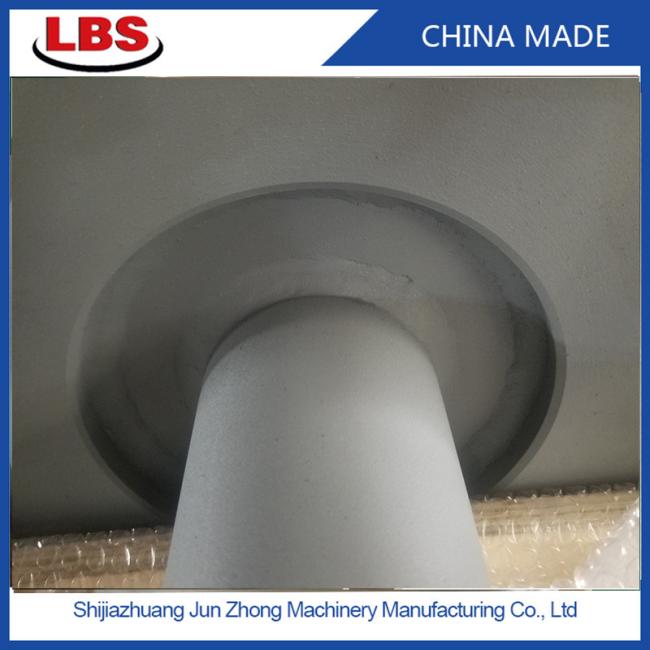

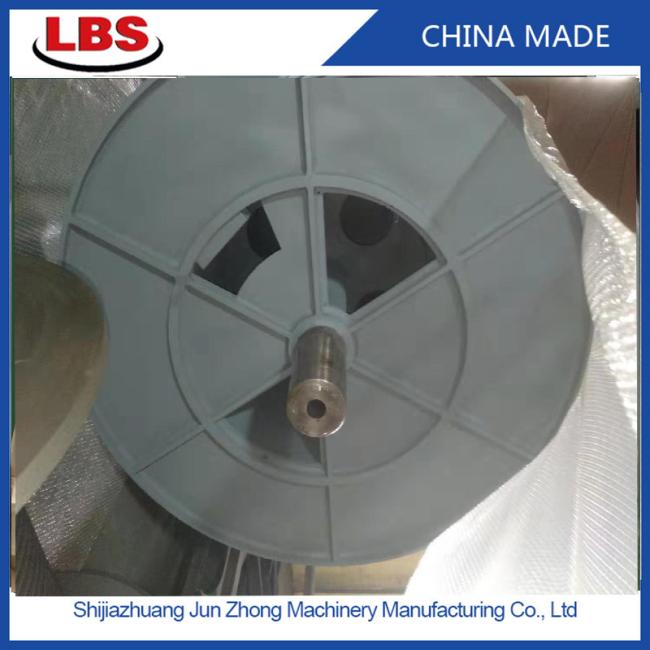

construction winch use grooved drum and reels with connection shaft
Product specifications:
Custom design based on the requirements
Wire rope diameter (mm) : 3-100mm
The main drum diameter (mm) : 80-2000mm
The main drum length (mm): 100-2000mm
sleeve rotation: Lefthand, Righthand
Processing equipment: CNC machining center
Product Material:
Polymer nylon, Alloy steel, cast steel, aluminum, all kinds of high-strength steel Q355,Q420,Q460,15CrMo,20GrMo, 40GrMo, 42GrMo...
Material standards: GB, AISI, ASME, ASTM, JIS DIN, NF, BS, EN ...
Classification societies certified: DNV, ABS, GL, LR, BV, CCS, RINA, NK, KR ...
Product structure:

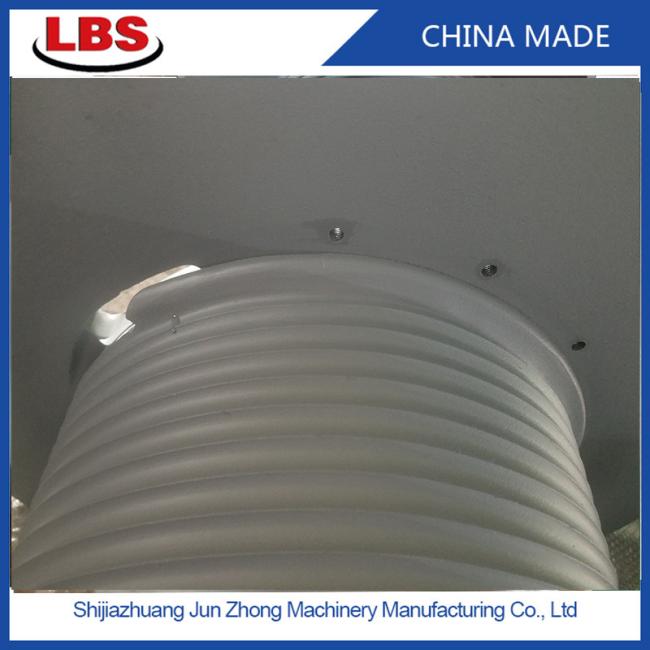

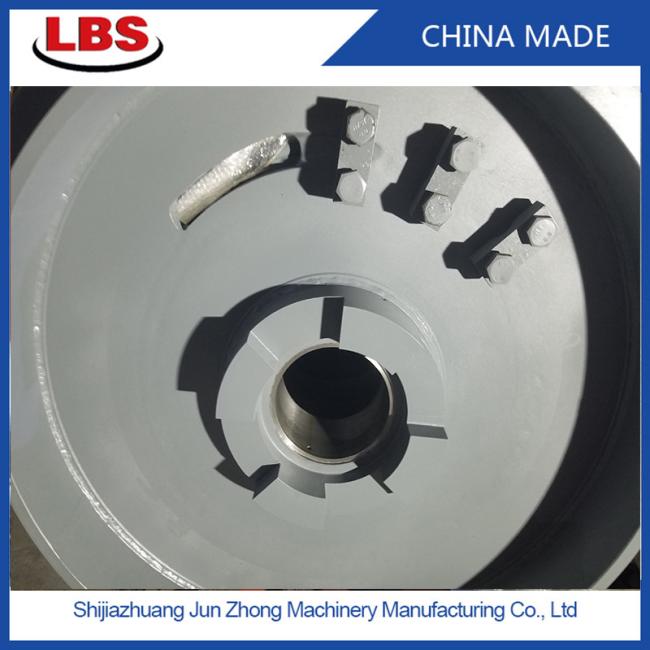

LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.
Related Product - grooved Sleeves:
Split wire rope groove sleeves: grooved split sleeves can be placed over smooth and ungrooved drums - suitable for modification or replacement of drum,It is usually cheaper to replace a worn out sleeve instead of replacing or repairing the complete drum assembly.
Split-sleeve system consists of a pair of outer shells that are bolted or welded onto a smooth drum,The split sleeve is composed of spiral groove and parallel groove,the groove design conforms to the specified wire rope structure, diameter and length.
FAQ:
| Q1:What's your terms of payment? A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance. |
| Q2:What's your terms of delivery? A. EXW, FOB CIF CFR etc |
| Q3:How about your delivery time? A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty. |
| Q4:Can you produce according to the samples? A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures. |
| Q5: What's your sample policy? A. We can supply sample, but the customer have to pay the sample cost and courier cost. |
| Q6: Do you test all your goods before delivery? A. Yes, we have 100% test before delivery. |
