Metal Shot H Beam Production Line Blasting Cleaning For Steel Profile 800X1600mm
Surface Dustless H beam Metal Shot Blasting Machine for Steel Profile
H-beam shot-blasting machine and cleaning machine with SPQ continuous rolling series is researched and developed on accordance with the feature of the steel structure.
The machine is adopted with computer 3-dimension dynamic simulating design to locate the position of the shot -blasting machine.The machine is equipped with a highly efficient filter-barrel pulse back-blowing removal.
Technical Parameters:
| Model | SPQ0816 | SPQ1018 | SPQ1220 |
| Section (Width x Height) | 800×1600mm | 1000×1800mm | 1200×2000mm |
| Length of The Work-piece | 3000×12000mm | 3000×15000mm | 3000×15000mm |
| Cleanness of Surface | A-B Sa2~Sa2 ½ | A-B Sa2~A-BSa2 ½ | A-B Sa2~A-BSa2 ½ |
| Roughness of Surface | 15-50 | 15-50 | 15-50 |
| Quantity | 8 | 8 | 8 |
| Quantity of shot-blasting | 8*200kg/min | 8*200kg/min | 8*200kg/min |
| Power | 8*11kw | 8*11kw | 8*11kw |
| conveyor allowable load | 1000kg/m | 1000kg/m | 1000kg/m |
| conveyor speed | 0.5-5m/min | 0.5-5m/min | 0.5-5m/min |
| Ventilation capacity | 12000m³/h | 12000m³/h | 12000m³/h |
| Circulating quantity of shots | 120T/h | 120T/h | 120T/h |
| Nominal size(L x W x H) | 6770x2100x2900mm | 7200x2300x3250mm | 7200x2520x3650mm |
| Depth of the pit | 1950mm | 1950mm | 1820mm |
| Total power | 135kw | 140kw | 140Kw |

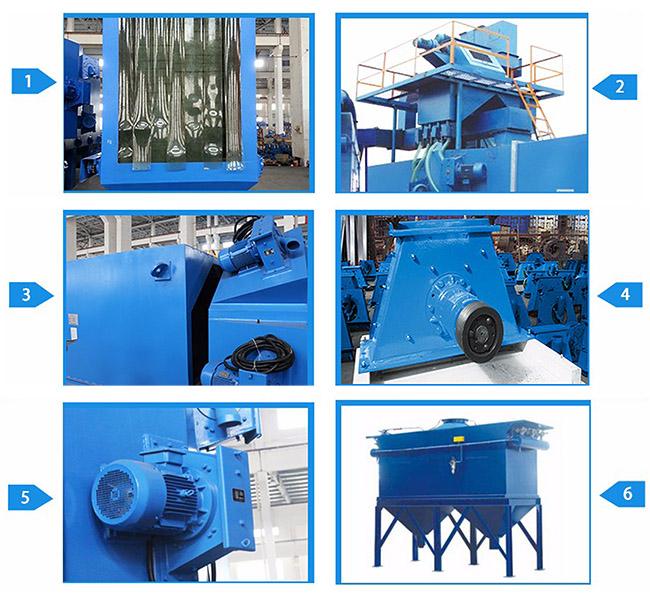

Product Details
1) The import and export are equipped with multi-layer rubber curtains sealed tightly,it prevent rust and dust pouring out.
2) The separation device uses the most advanced full curtain type shot and slag separator, the separation efficiency can reach 99%.
3) The arrangement of chamber and shot blaster is confirmed after shot blasting simulation by Solidworks
3D dynamic software, there’s a certain angle between shot blaster and work-piece.
4) It adopts high efficiency QZ320 shot blaster, which can significantly improve the cleaning efficiency, to achieve a satisfactory cleaning quality..
5) Shot blaster adopts QZ3204 curve vane with precision manufacturing. The wearing parts has long service life, easy to replace.
6) It adopts filter cartridge type dustcollector, dust emission within 80-120mg/m³, which can improve
the working environment.
Questions:
1. Are you a trading company or factory?
--- We are factory occupying more than 100,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 200 workers producing more than 1000 sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What's the material of your H beam?
• What's the min and max thickness of web plate?
• What's the min and max thickness of flange plate?
• What's the min and max flange width?
• What's the min and max web height?
• What’s the size of your workpiece?
These information is helpful for us to choose suitable equipment solution and price quickly.
