Portable Gas CNC Plasma White Cutting Machine CNC1-1500X3000 For Metal Plates

Price Negotiable
Price: Negotiable
MOQ: 1 set
Delivery Time: 20 days
Brand: Metalwork
Product Description



Portable Gas CNC Plasma White Cutting Machine CNC1-1500X3000 For Metal Plates



This Portable CNC Flame Plasma cutter machine can cut mild steel with oxy fuel gas cutting, and cut high carbon steel, stainless steel,aluminum, copper and other non-ferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.



Suitable for sheet processing, do word, etc., and other advertising equipment (vacuum molding machine, engraving machine, slotting machine, etc.,) the formation of advertising word processing line. Dozens of times higher than that of traditional craft processing efficiency.



Applicable materials:



Iron plate, aluminum plate, titanium, stainless steel plate, galvanized sheet, white steel plate, metal materials.



Machine Application:



Aerospace technology, rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.



Machine Structure:





China FangLing FL-2100 CNC System

Plasma Torch Height Controller

Model: XPTHC-Portable 300

Gas Cutting Torch

6-150mm Cutting Thickness

Plasma Cutting Torch

Cutting Thickness: Depends On Plasma Source

Rail Base

Plasma Source:

USA Victor, USA Hypertherm, Chinese Brand



Technical Parameters:





Model CNC-1200 X 2000 CNC-1500 X 3000
Input Voltage 220V/110V 220V/110V
Power Supply Frequency 50HZ / 60HZ 50HZ / 60HZ
Rated Power Supply 180W 180W
LCD Dimension 5.7 Inches 5.7 Inches
Effective Cutting Width (X axis) 1200mm 1500mm
Effective Cutting Length (Y axis) 2000/3000/6000mm 3000/6000mm
Cutting Speed 0-2500mm per minute 0-2500mm per minute
Plasma Cutting Thickness 2--20mm (0.08''--0.79'') 2--20mm (0.08''--0.79'')
Flame Cutting Thickness 6--150mm (0.2''--5.9'') 6--150mm (0.2''--5.9'')
Emergency Stop Button No Yes
Free (Off) Button No Yes
Cross Beam Length 1700mm 2200mm
Longitudinal Rail Length 2500/4000/6000mm 4000/6000mm
Longitudinal Rail Width 196mm 345mm
Host Machine Dimension (L*W*H mm) 508*344*305 600*449*350
Cross Beam Weight 9.3kg 12kg
Host Machine Weight 26.7kg 30kg
Longitudinal Rail Weight 34.5kg 53.5kg
Total Weight 70.5kg (156 lbs ) 95.5kg (211 lbs)
Gas Pressure Max. 0.1Mpa (14.5 PSI ) Max. 0.1Mpa (14.5 PSI )
Oxygen Pressure Max. 1.0Mpa (145 PSI ) Max. 1.0Mpa (145 PSI )
Cutting Gas Acetylene/Propane/Methane Acetylene/Propane/Methane
Plasma Power Source THERMADYNE Cutmaster A120 /
Hypertherm PowerMAX 105
THERMADYNE Cutmaster A120 /
Hypertherm PowerMAX 105
Plasma Air Only pressed Air Only pressed Air
Plasma Air Pressure Max. 0.8Mpa (116 PSI) Max. 0.8Mpa (116 PSI)

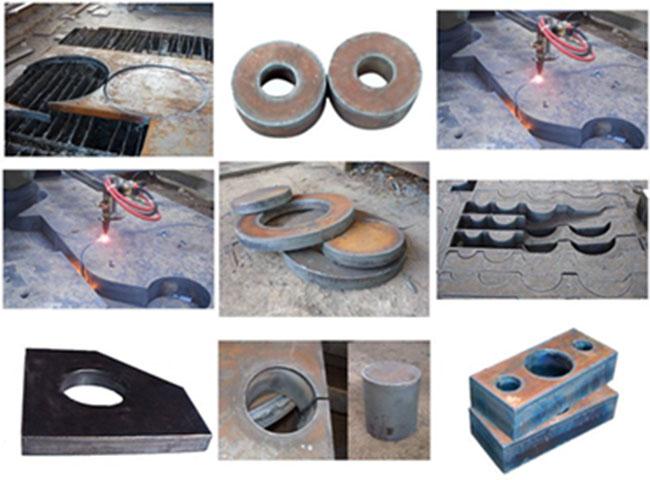

Cutting Samples:
