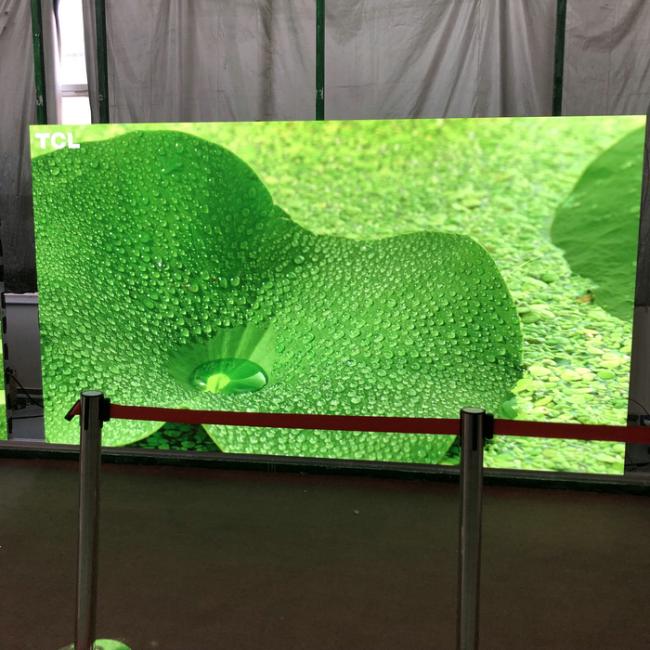

Digital LED Pantallas P1.875 High Resolution Indoor Full Color Panel 480x480mm Wide View Angles
Digital LED Pantallas P1.875 High Resolution Indoor Full Color Panel 480x480mm Wide View Angles
Features:
High definition,High refresh rate,High resolution 3840Hz,Seamless installation Pantallas LED.
High temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)
Specification:
| P1.875 Indoor Full color LED Display Specification | ||||||||||||
| NO: | Product Name | Specification | ||||||||||
| 1 | Pixel Pitch | 1.875mm | ||||||||||
| 2 | Pixel Configuration | 1R1G1B/SMD1515 Black lamp | ||||||||||
| 3 | Density | 284,444 pixel/m2 | ||||||||||
| 4 | Moduel Size(L×W)mm | 240mm×240mm | ||||||||||
| 5 | Cabinet Size(L×W×H)mm | 480mm×480mm×70mm | ||||||||||
| 6 | Module Resolution | 128×128 | ||||||||||
| 7 | Cabinet Resolution | 256×256 | ||||||||||
| 8 | Driving Method | 1/32 Scan | ||||||||||
| 9 | Driving IC | MBI5153 | ||||||||||
| 10 | Brightness | 600cd/㎡ | ||||||||||
| 11 | Contrast | 1000:1 | ||||||||||
| 12 | Brightness Adjustment | Auto and Manual | ||||||||||
| 13 | Power Consumption | Max Power:＜600W | ||||||||||
| 14 | Average power: ＜300W | |||||||||||
| 15 | Module Weight | 0.5kg | ||||||||||
| 16 | Color Temperature | 2000K—9500K | ||||||||||
| 17 | Horizontal Viewing Angle | 160º | ||||||||||
| 18 | Vertical Viewing Angle | 140º | ||||||||||
| 19 | Signal Processing | 10 or 14bit | ||||||||||
| 20 | Grey Processing | 1024×1024×1024 16834×16834×16834 |
||||||||||
| 21 | Control Distance | cable100m,Multimode500m,Single mode 2km | ||||||||||
| 22 | Frame Frequency | 65 Hz | ||||||||||
| 23 | Refresh Rate | >3840Hz | ||||||||||
| 24 | Control Mode | Synchronous/Asynchronous | ||||||||||
| 25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
| 26 | Users can choose the recommended curve or adjust it based on actual situation | |||||||||||
| 27 | MTBF | >50000 hours | ||||||||||
| 28 | Life Span | 100,000 Hours | ||||||||||
| 29 | Operating Temperature | Working : -20 - 65 ℃ | ||||||||||
| 30 | Storage : -40 - 85 ℃ | |||||||||||
| 31 | Environment Temperature | -30℃ to 60℃; humidity Rh10% to 95% | ||||||||||
| 32 | Remote Control | Can realize remote control and send alarm signal to operators in case of logging failure (Be customized) | ||||||||||
| 33 | Self-checking Technique | Self-inspection, communication test, power test, temperature monitoring (Be customized) | ||||||||||
| 34 | Operating System Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
| 35 | Power Supply | AC 85-264V | ||||||||||
| 36 | Protection Level | IP 41 | ||||||||||
Indoor Full Color LED Display Applications:
Shopping Malls
Music Venues and Concerts
Large Offices
Theater and Arts
TV Shows
Car Shows
CCTV Digital signage
Congress
Airport Billboard
Others:
1. Budget friendly product, ideal for basic rental and fixed installations.
2. Extremely close view distances and wide view angles.
3. Silent operation, little heat generated
4. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
