Sharp Blade Type Ultrasonic Textile Cutter 40Khz For Textiles Thermoplastic Films
New Replacement Sharp Blade Type Ultrasonic Cutter 40Khz
Descripersion:
Ultrasonic Cutter are designed to cut textiles thermoplastic films, rubber woven and non-woven fabrics. Ultrasonic Cutting Systems can be operated as hand-held units or incorporated into automated machinery. Ultrasonic Cutters are small in size and do not require large installation areas. Special equipment is not required for the installation. Ultrasonic Cutters are small enough to be hand-held for many operations.
Ultrasonic Cutters can also be attached to automated machinery arms. Although they may not be familiar to you, they play an active role in the manufacturing processes of various industrial products which we use daily.
- Solid, one-piece construction of horn blade virtually eliminates breakage and energy loss.
- Minimal blade flexure yields straighter cuts without having to support the blade.
- Compatible with ultrasonic probe systems.
- Available in 20, 30 or 40 kHz frequencies,20Khz customized.
- Easy to clean and easy to change knife.
- New ultrasonic cutting horn features replaceable carbide cutting tips for long tool life.
ULTRASONIC CUTTING TECHNOLOGY
Very much safer as compared to traditional cutting methods such as Pen-Knife
Don't spoil your masterpiece of art. NO MORE ugly cutting edges.
"One-Touch" button with no settings required
No special training required
WHAT IS ULTRASONIC CUTTING
Cut with ultrasonic vibration.
Vibration on blade enables a smooth cutting without heavy force. Each ultrasonic cutter is equipped with a vibrator on its blade.
THE PRINCIPLE OF ULTRASONIC CUTTING
Transducer makes fine vibration on blade
The principle of ultrasonic cutting is simply explained by “Ultrasonic vibration on blade makes cutting effect to improve."
Conventional frequency used for ultrasonic cutting is 15 to 40kHz, and the vibrational amplitude is mainly 5 to 30μm (Frequency indicates the number of vibrations per second, and vibrational amplitude indicates the intensity of the vibration).
Parameter:
| Item | 30Khz cutter | 40Khz cutter |
| Frequency | 30khz | 40khz |
| Power | 300w | 200w |
| Amplitude | 10-60μm | 10~50μm |
| Blade tips thickness | 1mm | 0.6mm |
| Horn | Rapid steel | Rapid steel |
| Cutting thickness | 0.1~10mm | 0.1~8mm |
| Suitable material | Carbon fiber, Nomex, honey combs, Prepreg materials,Rubber,Thermoplastics,Leather,Cloth Non woven, fabric, Paper Plastic sheet etc., | |

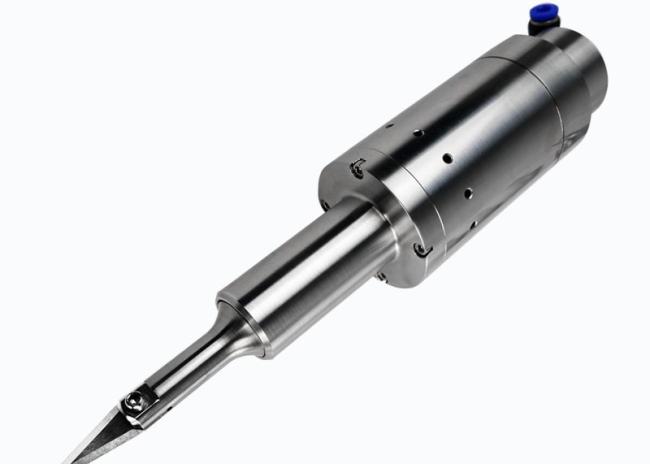

SHARP BLADE
ASSAMBLED ON MACHINE ARM
OUR WARE HOUSING
OUR SHOW HOUSING
