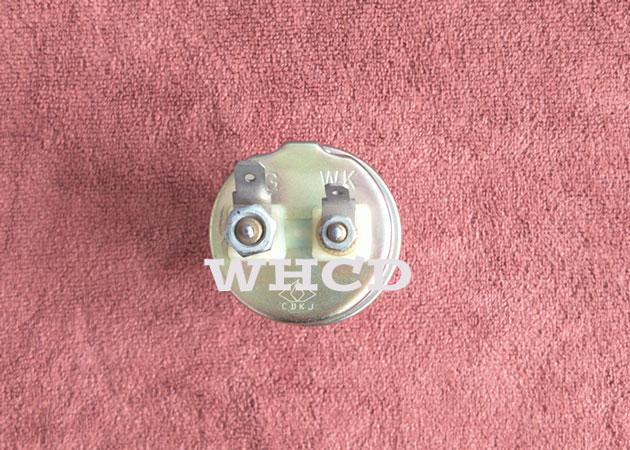

NPT 1/4 Color Zinc Plated Engine Oil Pressure Sensor For Excavator , Isuzu
NPT 1/4 Color Zinc Plated Engine Oil Pressure Sensor For Excavator
Technical Data
Operating voltage: 6~24V
Conducting power: < 5W
Operating temperature: -25 ~120℃ (120℃ MAX 1H)
Measuring range: 0~5Bar or 0~10Bar
Alarm: 0.8Bar or 1.4Bar
Output signal: Standard resistance value: 10~184Ω
Thread fitting: NPT1/4,NPT1/8, M10x1, M12x1.5 or customized as requires.
Protection rank: IP66
Feature
Superior long term stability
Temperature compensated over wide range
Low power consumption
Excellent repeat-ability / Hysteresis
Special design for customer
Many OEM options
Instruction
This product is matched with the pressure gauge and alarm, it senses the change of engine oil pressure (or brake system pressure), and transfers the amount of change to the pressure gauge for real-time display. When the pressure is lower than the set value, the low voltage switch is on and the alarm light is bright. This product is simple in structure, convenient in use and reliable in performance.
Cautions
1. this product needs a wrench to be clamped to the six side nut and tighten the thread. The maximum tightening torque is 17N.m.

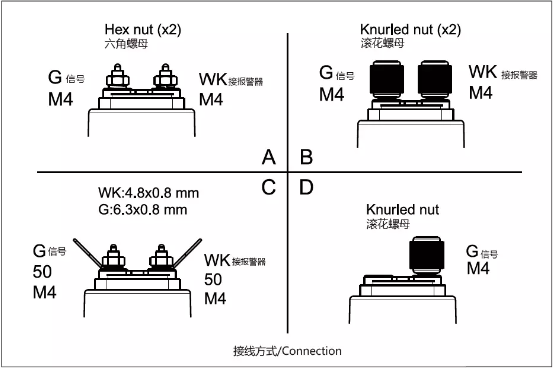

2.the output end of this product is connected with the wire harness to ensure the reliable transmission of the signal.

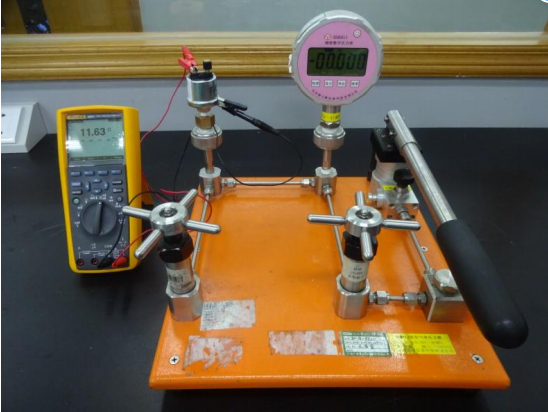

Basic Function Test

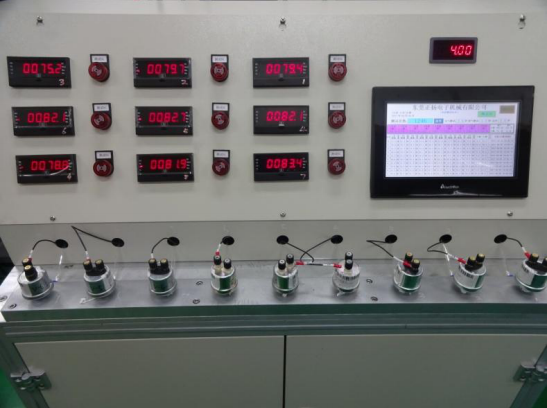

Life Test

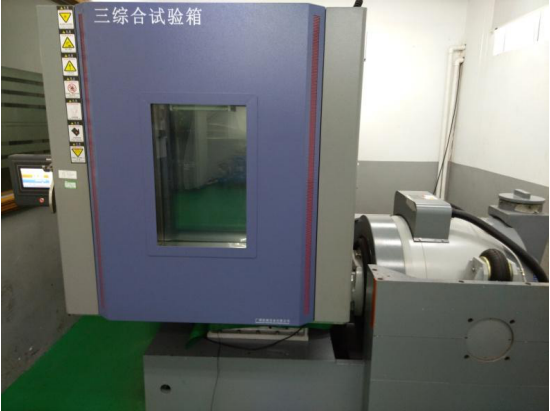

Vibration Test

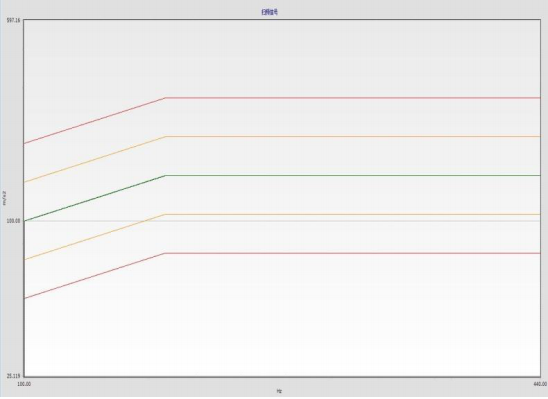

Vibration Test Parameters

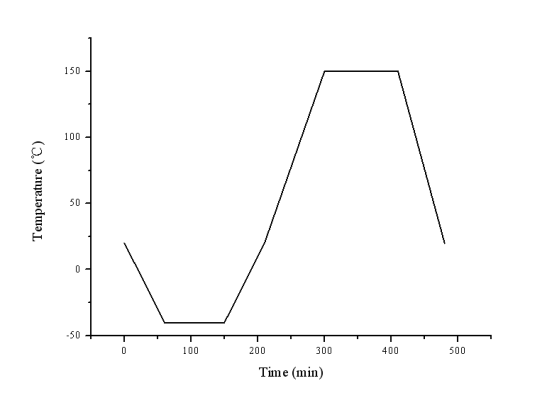

Temperature Cycling Parameters
Advantage
| Offer Top quality & competitive products |
| Support 12-month warranty |
| 100% tested before shipping |
| Delivery in time |
| A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for universal vehicles |
| More than 15 years production and 11 years foreign trade experience |
| Professional QC team |
| Best sales team, 24 hours service |
Q & A
| Question | Answer |
| What’s your main products? | oil pressure sensor, liquid level sensor, water temperature sensor, speed sensor |
|
Where are you? |
Wuhan city, Hubei Province, China |
| Do you accept OEM? | Yes, OEM is welcomed |
| Are you manufacturer or trading company? | We are manufacturer with export license. |
| Do you provide sample? | Yes |
| Do you have any certificate? | Yes,we have ISO/TS16949, RoHS |
| What’s the MOQ? | There’s no limit for MOQ |
