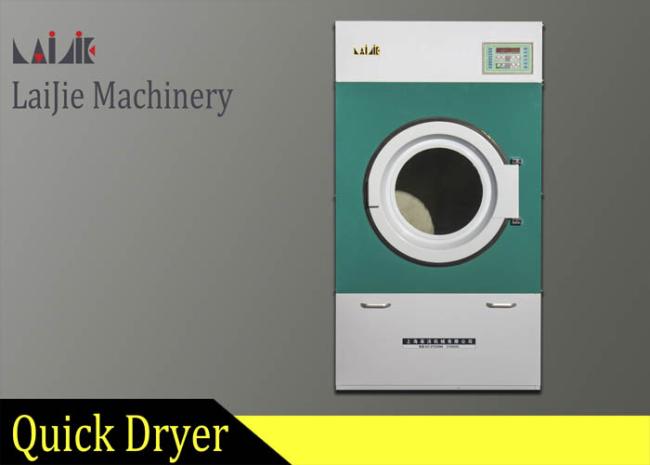

Professional Hotel Commercial Clothes Dryer , Industrial Tumble Dryer Steam Heating
Professional industrial laundry dryer machine Clothes Tumble Dryer for hotel
The technical of Professional industrial laundry dryer machine Clothes Tumble Dryer for hotel :
1, Large diameter door designed ,it is convenient for loading . The door with reverse overshoot design to effectively avoid scratching and pulling cloth.
2, Computer control system,the operator can set different drying time and temperature according different fabric material
3, The transmission system adopts two stage triangle belt deceleration drive, strong transmission ability, good wear resistance, high stability, and convenient maintenance.
Product specification of Professional industrial laundry dryer machine Clothes Tumble Dryer for hotel :
| Model | Unit | GDZ-35 | GDZ-50 | GDZ-100 |
| Rated Capacity | kg | 35 | 50 | 100 |
| Drum Diameter | mm | 990 | 1190 | 1445 |
| Drum Depth | mm | 940 | 850 | 1190 |
| Drum speed | rpm | 35 | 32 | 28 |
| Heating | Steam-Heating | |||
| Steam pressure | Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Power Supply | V/P/Hz | 380/3/50 | 380/3/50 | 380/3/50 |
| Motor Power | kw | 1.1 | 1.1 | 1.5 |
| Fan Motor Power | kw | 1.1 | 1.1 | 2.2 |
| Weight | kg | 480 | 550 | 900 |
| Dimension | mm | 1150*1590*1940 | 1330*1520*2200 | 1590*1900*2450 |
How to maintain Professional industrial laundry dryer machine Clothes Tumble Dryer for hotel ?
The first time for drying, must open the steam bypass valve, discharge heater and condensate water , and then close the steam bypass valve. Every day after working, drain water, open the front door, close the inlet valve .
