1000mAh 2S 7.4V High Discharge Battery / 18C Lithium Ion Polymer Battery 823048 for Adult Toys
1000mAh 2S 7.4V High Discharge Battery / 18C Lithium Ion Polymer Battery 823048 for Adult Toys
High Discharge Battery Applications
(1) Portable electronic devices, (2) Bluetooth headset, (3) Digital camera, (4) MP3 player, MP4 player,
(5)Cellular phone, Digital phone, mobile phone, (6) PDA,(7)DMB, (7) DVD, Portable DVD,
(8) Digital camcorder, Digital camera, (9) Notebook computer, Portable computer, Lap-top computer (10) E-book, GPS (11) Adult Toys
High Discharge Battery Description

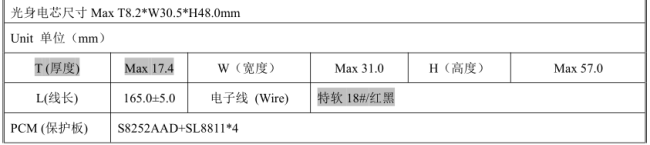

Cell Size : T8.2*W30.5*H48.0mm
Finished Product Size : T17.4*W31.0*H48.0*57.0mm
|
Item |
Specification |
Remark※ |
|
|
1.1.1 Typical Capacity |
1000mAh |
0.5C charge 1.0C discharge |
|
|
Minimum Capacity |
980mAh |
||
|
1.1.2 Nominal Voltage |
7.4V |
|
|
|
1.1.3 End Voltage |
6.0V |
|
|
|
1.1.4 Charging Current (Std.) |
0.5CA=(500mA) |
Ambient temperature |
|
|
1.1.5 Charging Current (Max.) |
1.0CA=(1000mA) |
Ambient temperature |
|
|
1.1.6 Charging Voltage |
8.4V |
|
|
|
1.1.7 Charging Time (Std.) |
2~3.0 hours |
|
|
|
1.1.8 Charging Time (Max.) |
1.0-2.0hours |
|
|
|
1.1.9 Discharging Current (Std.) |
0.2CA=(200mA) |
Ambient temperature |
|
|
1.1.10 Continuous Discharging Current (Max.) |
18.0CA=(18A) |
Ambient temperature |
|
|
1.1.11 Cell Internal Resistance(25℃) |
≤360mΩ |
AC Impedance 1KHz |
|
|
1.1.13 Soft pack Weight |
About 20g |
Battery only |
|
|
1.1.14Temperature range for storage |
less than 1 month |
-5~+45℃ |
Percentage of recoverable capacity 80﹪ |
|
less than 3 month |
0~+35℃ |
||
|
less than 1 year |
23±5℃ |
||
|
1.1.15 Open Circuit Voltage |
7.60-7.80V |
Measure with voltmeter. |
|

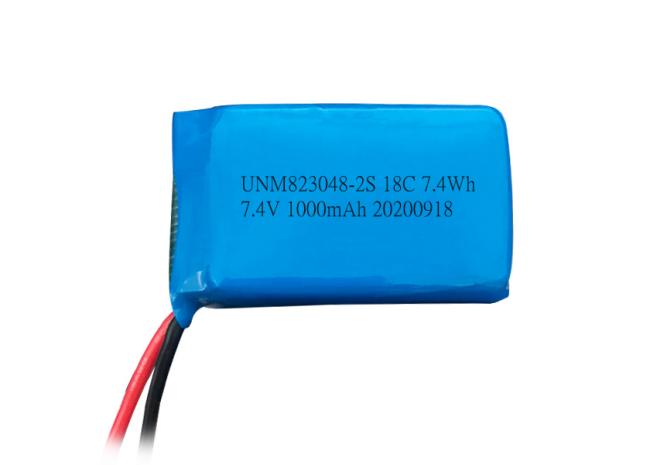

823048 1000mAh 7.4V Battery Pack Pictures
Battery Advantages
1. Long life, large capacity and good shock resistance
2. Low self-discharge and good discharge performance at low temperature
3. Strong charging acceptance and quick-charging capability
4. Strong over-discharge resistance and charge retention
5. Maintenance-free and no acid or water for maintenance in usage
6. Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance 8. Environmental friendly
8. Lighter weight smaller size
