3.7V 1150mAh Small Lipo Battery , Bank Payment Machine Custom Made Lipo Batteries
Custom Rechargeable Polymer Lithium Battery 3.7V 1150mAh 384860 for Bank Payment Machine
1.Cell Type and Model
1.1 Cell Type : Lithium Ion Polymer Battery
1.2 Cell Mode: UNM384860
1.3 Cell Outer Dimension: 3.6±0.2 mm (T)×48.0±0.5 mm (W)×60.0±0.5mm (L
2.Cell Performance
| Item | Specification | Remark | |
| 2.1 Typical Capacity | 1150mAh | 0.2C discharge | |
| Minimum Capacity | 1100mAh | 0.2C discharge | |
| 2.2 Nominal Voltage | 3.7V | ||
| 2.3 End Voltage | 2.75V | ||
|
2.4 Charging Current (Std.) |
0.2CA(=230mA) |
Ambient temperature 0~+45℃ |
|
|
2.5 Charging Current (Max.) |
0.5CA(=575mA) |
Ambient temperature 0~+45℃ |
|
| 2.6 Charging Voltage | 4.2±0.03V | ||
| 2.7 Charging Time (Std.) | 6~7.0 hours | ||
|
2.8 Charging Time (Max.) |
2~3.0 hours | ||
|
2.9 Discharging Current (Std.) |
0.2CA(=230mA) |
Ambient temperature -20~+50℃ |
|
|
2.10 Discharging Current (Max.) |
1.0CA(=1150mA) |
Ambient temperature -20~+50℃ |
|
| 2.11 Cell Internal Resistance | <60mΩ |
AC Impedance 1KHz |
|
| 2.12 Weight | About 21.0g | Battery only | |
|
2.13Temperature range for storage |
less than 1 month |
-20~+40℃ | Percentage of recoverable capacity 80﹪ |
|
less than 3 month |
-10~+35℃ | ||
|
less than 1 year |
-0~+30℃ | ||
3.Pack Performance
3.1 Pack Electron Performance
| Item | Specification | Remark※ | |
| 3.1.1 Typical Capacity | 1150mAh | 0.2C discharge | |
| Minimum Capacity | 1100mAh | 0.2C discharge | |
| 3.1.2 Nominal Voltage | 3.7V | ||
| 3.1.3 End Voltage | 2.4V±0.05V | ||
|
3.1.4 Charging Current (Std.) |
0.2CA(=230mA) |
Ambient temperature 0~+45℃ |
|
|
3.1.5 Charging Current (Max.) |
0.5CA(=575mA) |
Ambient temperature 0~+45℃ |
|
|
3.1.6 Charging Voltage |
4.30±0.05V | ||
|
3.1.7 Charging Time (Std.) |
6~7.0 hours | ||
|
3.1.8 Charging Time (Max.) |
2.0~3.5 hours | ||
|
3.1.9 Discharging Current (Std.) |
0.2CA(=230mA) |
Ambient temperature -20~+50℃ |
|
| 3.1.10Suggested Continuous Discharging Current (Max.) | 1.0CA(=1150mA) |
Ambient temperature -20~+50℃ |
|
| 3.1.11 Suggested Peak Discharging Current (Max.) | 1.5A |
<2 seconds <2s |
|
| 3.1.11 Soft Pack Internal Resistance | <160mΩ |
AC Impedance 1KHz |
|
| 3.1.12 Soft pack Weight | About 22.0g | ||
|
3.1.13Temperature range for storage |
less than 1 month | -20~+40℃ | Percentage of recoverable capacity 80﹪ |
| less than 3 month | -10~+35℃ | ||
| less than 1 year | -0~+30℃ | ||

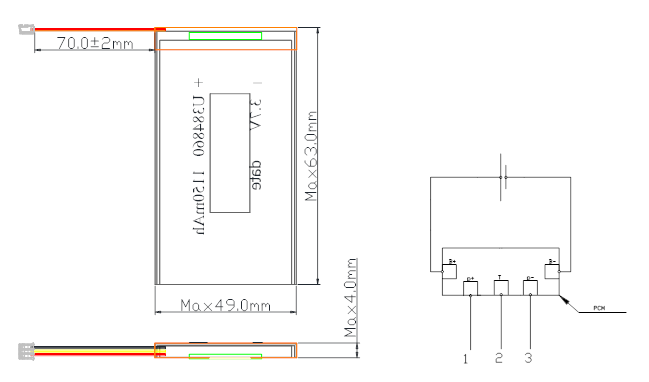

3.2 Battery Pack Dimension(MAX): 4.0 mm (T)×49.0mm (W)×63.0mm (L)

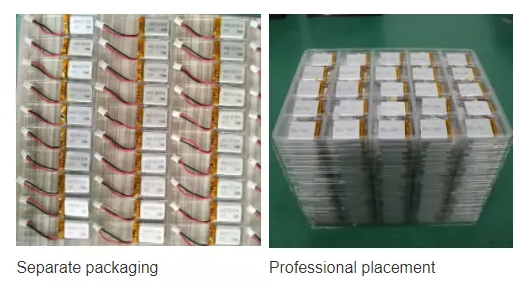

About Packaging Details
- Standard export package with Inner Tray + Carton or Custom-made Package
- Mode of Transport
About Battery Samples
- For small lithium polymer battery(capacity< 1000mAh), we can provide 5pcs free samples and buyers pay the shipping cost, for the model in our stock, we can send out within 5 days.
- Making the sample until you are satisfied with it.
About Battery Production Date
7~10 days for stock , 25 ~35 days for customized or modified batteriers
Notice:
1) Check the battery for wear and damage every time you handle it. If in any doubt please dispose off the battery.
2) Always handle the batteries with great care. Do not drop the batteries.
3) Store the batteries on a safe and dry place and make sure that the battery cannot get into contact with metal items.
4) Do not dispose the batteries to temperature above 100 degrees Celsius.
5) Only use chargers designed for charging Lithium-lon batteries.
6) When charging keep the charger away from items that can cause fire.
7) If you are not going to use the battery for a period longer than 6 months, please make sure that it is charged first.
