China Manufacturer Construction Machinery 16tons 70m jib PT7030 Flat-top Tower Crane
Price:
Negotiation
MOQ:
1 set of flat top tower crane
Delivery Time:
about 45 days after receiving the deposit
Brand:
HYCM
Product Description
China Manufacturer Construction Machinery 16tons 70m jib PT7030 Flat-top Tower Crane
Specifications for China Manufacturer Construction Machinery 16tons 70m jib PT7030 Flat-top Tower Crane
| Main Performance | Main Specifications | |
| Rated lifting moment (KN.m) | 2500 | |
| Max. lifting load(t) | 16 | |
| Tip load(t) | 2.5 | |
| Working range(m) | 3~70 | |
| Lifting height(m) | Freestanding height | 50 |
| Attaching height | 206 | |
| Mast section | Main limb angle steel (mm) | ∠200X200X26/ Q345B |
| Section size(mm) | 2000X2000X3000 | |
| Lifting jib | Upper chord(mm) | φ140 round steel/ Q345B |
| Lower chord(mm) | ∠180X18 two angle steel / Q345B | |
| Parallel face width (mm) | 1450X2200 | |
| Hoisting mechanism | Reducer | 55TLQ40 |
| Motor | YZTPF250M-4-55KW | |
| Capacity of wire rope | 560m | |
| Wire rope | 35W×7-20-1960 I right lay | |
| Hoisting speed (m/min) | 0-100 0-50 | |
| Slewing mechanism | Reducer | HP90.160.195 |
| Motor | YPHW132L2-4-9KW | |
| Slewing speed (r/min) | 0-0.57 | |
| Trolleying mechanism | Reducer | 7.5TXB7 |
| Motor | YZZ132S1-4-7.5KW | |
| Trolleying speed( m/min) | 0-78 | |
| Jacking-up speed |
Hydraulic pump station Jacking oil cylinder |
TQZ180/125 |
| Motor | Y132M-11KW | |
| Slewing bearing | Type | 1830.50 |
FAQ for China Manufacturer Construction Machinery 16tons 70m jib PT7030 Flat-top Tower Crane
Q1: What is the Warranty for tower cranes?
A1: For the tower cranes, we can supply 1 year warranty. If there is quality problem of any parts (excluding easy worn spare parts) on our side during this period, we will supply a new one by free for replacement.
Q2: What is the mean of QTP for tower crane model? And please illustrate.
A2: QTP is classified according to China National Standard.
“Q” is the acronym of Crane in Chinese language (Qing Zhongji);
“T” is the acronym of Tower head type in Chinese language (Ta Shi);
And “P” is the acronym of topless in Chinese language (Ping Tou).
For example: QTP40 (4810) means topless tower crane, the rated lifting moment is 400 KN.m (40 is 10-1 of the rated lifting moment). The working jib length is 48 meter and tip load is 1.0t when jib length is 48m.
Q3: What are the optional parts for your tower cranes?
A3: 1) Anemometer

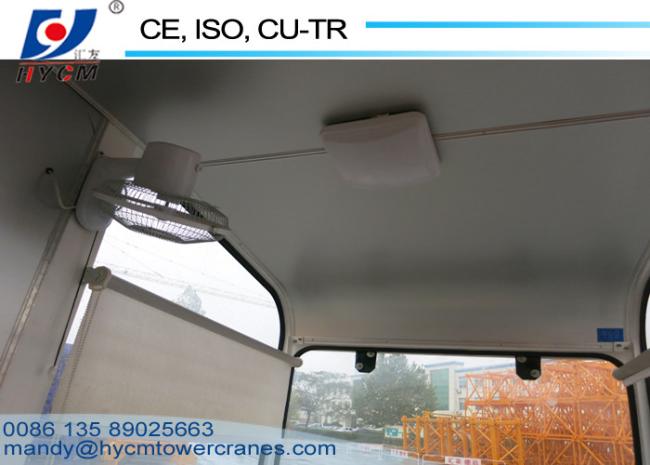

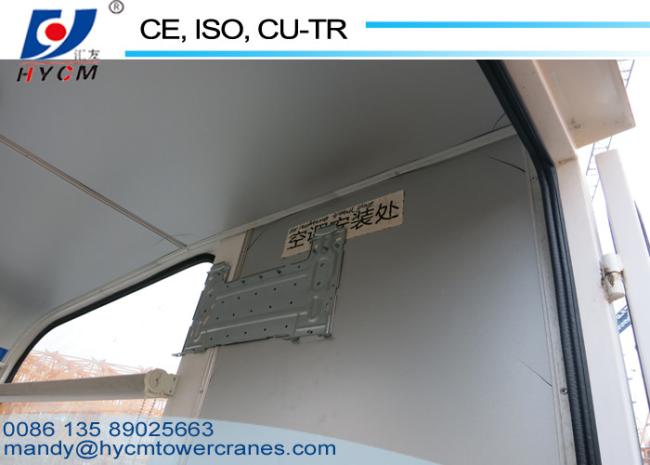

2) Air conditioner for operation cab
3) Black box for operation cab
4) Remote control
5) Full VFD (Variable Frenquency Drive) control
Q4: How many types of foundation for your tower crane?
A4: The most popular types of foundation are Cross-beam type, Well-shaped type, Base with ballast type and Outrigger type.
By the way, our commonly used one is Cross-beam type. If you need any other type, please let us know when you make the order. Thanks!
Q5: How many countries had your tower cranes exported to?
A5: Our tower cranes had exported to more than 30 countries, such as Vietnam, Philippines, Indonesia, India, Sri Lanka, Cambodia, Russia, Kazakhstan, Brazil, Cyprus, Belgium, Madagascar, Thailand and Algeria etc.
Q6: What is your trade items of Tower Crane?
Qingdao or Shanghai or according to Clients' need. We could accept 1 set of our products as your trial order.
Our Skilled Team
Our R&D team is made up of the most prestigious, experienced engineers and experts in this field.
Our technicians team are all experienced senior mechanicians.
We provide satisfactory service (pre-sale, while-sale, after-sale).
Our professional advice and instruction are always available and acceptable.

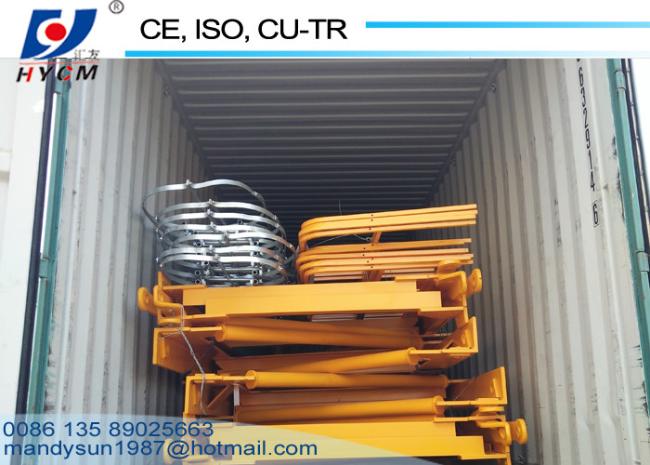

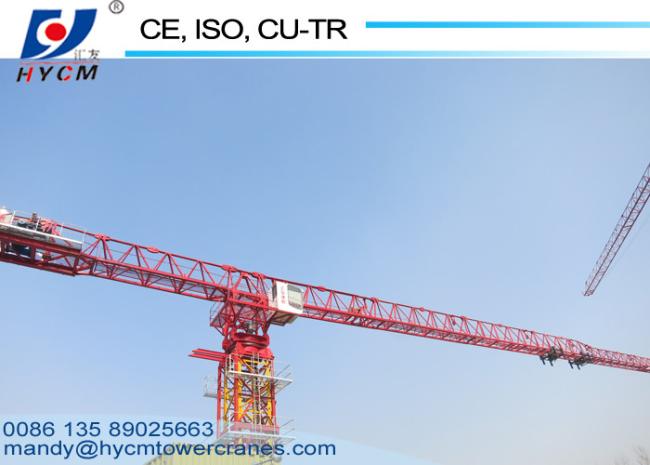

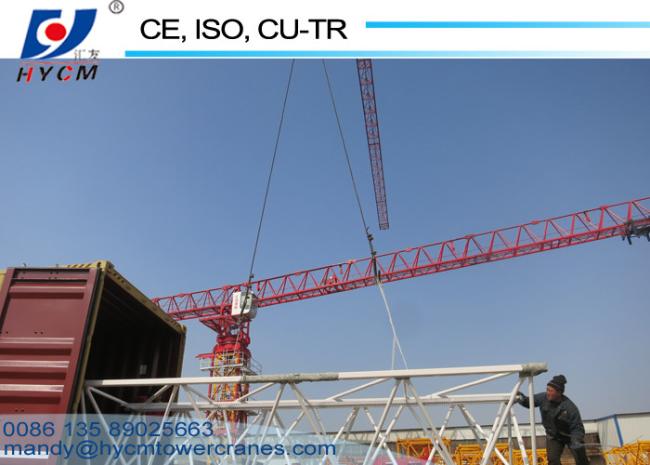

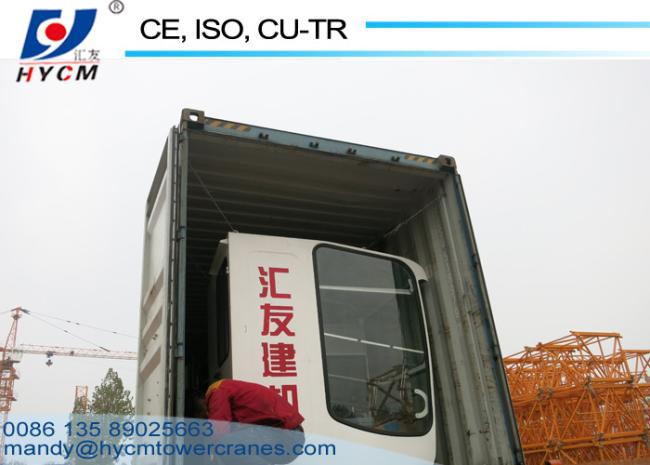

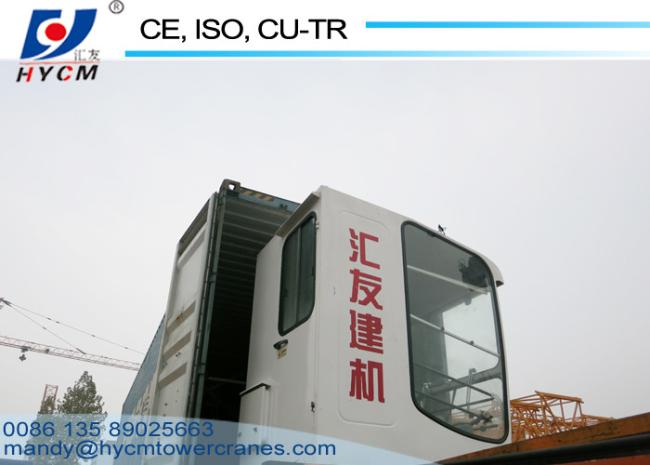

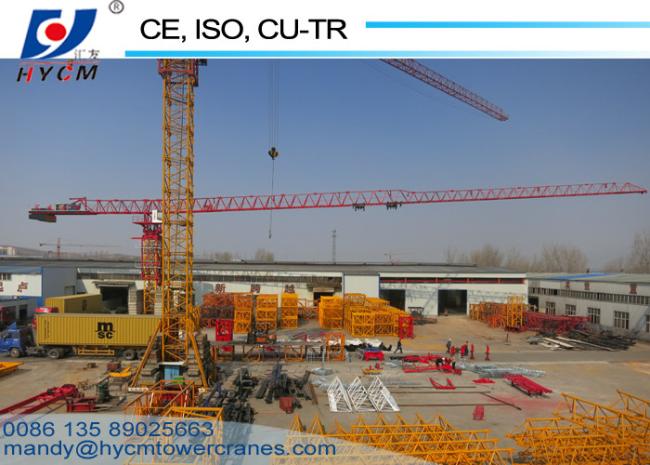

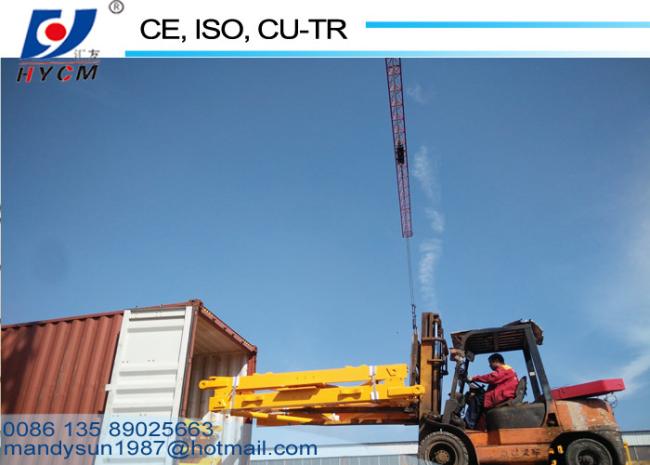

Photos for China Manufacturer Construction Machinery 16tons 70m jib PT7030 Flat-top Tower Crane
