2024 New Manufacturer 200m High 18 tons PT7532 Flat Top New Construction Tower Cranes with Low Price
Price:
Negotiation
MOQ:
1 set of 18ton flat top tower crane
Delivery Time:
about 55 days after receiving the deposit
Brand:
HYCM-TOWER CRANES
Product Description
2024 New Manufacturer 200m High 18 tons PT7532 Flat Top New Construction Tower Cranes with Low Price
Specifications for 2024 New Manufacturer 200m High 18 tons PT7532 Flat Top New Construction Tower Cranes with Low Price
| Main Performance | Main Specifications | |
| Rated lifting moment (KN.m) | 3150 | |
| Max. lifting load(t) | 18 | |
| Tip load(t) | 3.2 | |
| Working range(m) | 3~75 | |
| Lifting height(m) | Freestanding height | 62 |
| Attaching height | 200 | |
| Mast section | Main limb angle steel (mm) | ∠200X200X26/ Q345B |
| Section size(mm) | 2000X2000X3000 | |
| Lifting jib | Upper chord(mm) | ∠160X16 two angle steel with rebar / Q345B |
| Lower chord(mm) | ∠160X16 two angle steel with rebar / Q345B | |
| Parallel face width (mm) | 1450X2200 | |
| Hoisting mechanism | Reducer | 75TLQ45 |
| Motor | YZTPF250M-4-75KW | |
| Capacity of wire rope | 560m | |
| Wire rope | 35W×7-20-1960 I right lay | |
| Hoisting speed (m/min) | 0-54 0-27 0-18 | |
| Slewing mechanism | Reducer | HP90.160.195 |
| Motor | YPHW132L2-4-9KW | |
| Slewing speed (r/min) | 0-0.57 | |
| Trolleying mechanism | Reducer | 711TXB7 |
| Motor | YZZ132S1-4-11KW | |
| Trolleying speed( m/min) | 0-78 | |
| Jacking-up speed |
Hydraulic pump station Jacking oil cylinder |
TQZ315/180/125 |
| Motor | Y132M-11KW | |
| Slewing bearing | Type | 013.50.1830 |
FAQ for 2024 New Manufacturer 200m High 18 tons PT7532 Flat Top New Construction Tower Cranes with Low Price
Q1: What is the Warranty for tower cranes?
A1: For the tower cranes, we can supply 1 year warranty. If there is quality problem of any parts (excluding easy worn spare parts) on our side during this period, we will supply a new one by free for replacement.
Q2: What is the mean of QTP for tower crane model? And please illustrate.
A2: QTP is classified according to China National Standard.
“Q” is the acronym of Crane in Chinese language (Qing Zhongji);
“T” is the acronym of Tower head type in Chinese language (Ta Shi);
And “P” is the acronym of topless in Chinese language (Ping Tou).
For example: QTP40 (4810) means topless tower crane, the rated lifting moment is 400 KN.m (40 is 10-1 of the rated lifting moment). The working jib length is 48 meter and tip load is 1.0t when jib length is 48m.
Q3: What are the optional parts for your tower cranes?
A3: 1) Anemometer
2) Air conditioner for operation cab
3) Black box for operation cab
4) Remote control
5) Full VFD (Variable Frenquency Drive) control
Q4: How many types of foundation for your tower crane?
A4: The most popular types of foundation are Cross-beam type, Well-shaped type, Base with ballast type and Outrigger type.
By the way, our commonly used one is Cross-beam type. If you need any other type, please let us know when you make the order. Thanks!
After-sale service for 2024 New Manufacturer 200m High 18 tons PT7532 Flat Top New Construction Tower Cranes with Low Price
1.Engineers are available to service machinery overseas.
2. Erection and Commissioning
3. Operator Training
4. Spare Parts Supply
Optional parts for 2024 New Manufacturer 200m High 18 tons PT7532 Flat Top New Construction Tower Cranes with Low Price
(if you need them, please let me know in advance)
1) Anemometer
2) Air condition in cabin
3) Block box or space limiter
4) VFD control
5) PLC control

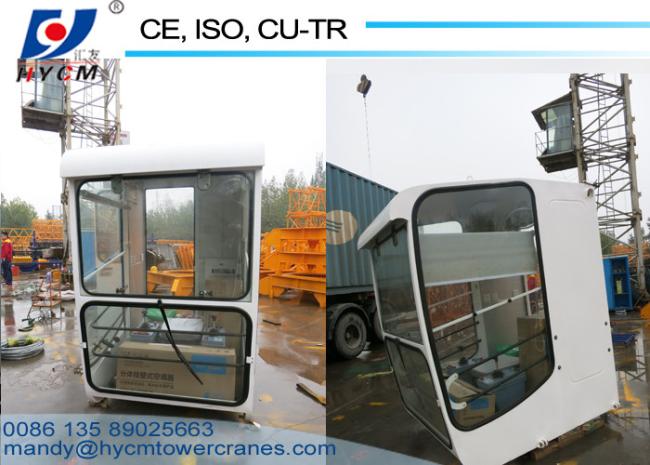

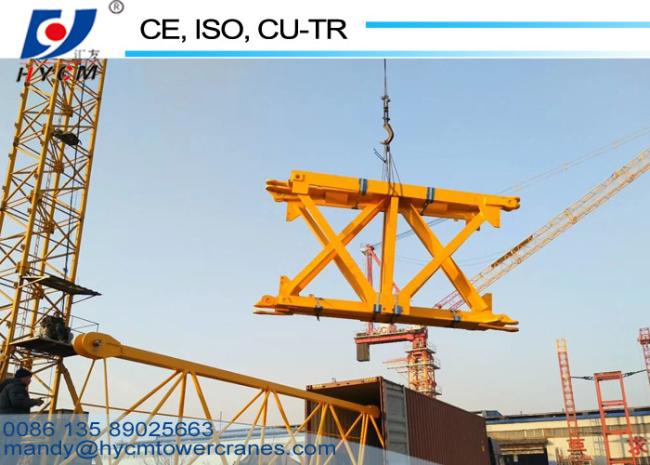

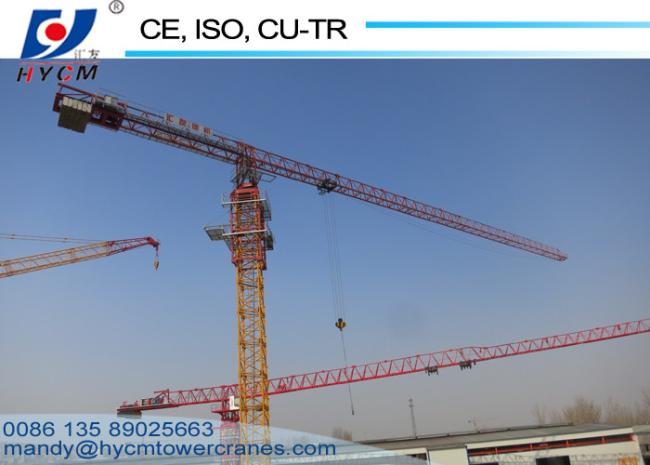

Photos for 2024 New Manufacturer 200m High 18 tons PT7532 Flat Top New Construction Tower Cranes with Low Price
Contact us
If you have any inquiry or question about our products, please feel free to contact us!
1.Mobile: 86-135-8902-5663
2.Whatsapp: 86-135-8902-5663
3.Wechat: 86-135-8902-5663
4.Skype: mandysun1987
5. E-mail: mandysun1987@hotmail.com/mandy@hycmtowercranes.com
6.Web: www.hycmtowercranes.com
