2024 Brand New Fixed Hammerhead Tower Crane Prices Of QTZ5612 Construction Cranes
Price:
Negotiation
MOQ:
1 set of 6ton topkit tower crane
Delivery Time:
about 25 days after receiving the advance payment
Brand:
HYCM TOWER CRANES
Product Description
2024 Brand New Fixed Hammerhead Tower Crane Prices Of QTZ5612 Construction Cranes
Quick Details for 2024 Brand New Fixed Hammerhead Tower Crane Prices Of QTZ5612 Construction Cranes
- This tower crane is an hammerhead with topkit head tower crane, includes foundation frame, mast sections (tower body), climbing system, slewing units, horizontal lifting jib / boom, counter-jib, tower head, operation cab, three mechanisms, electric system and safety device.
- The max. Boom length is 56m which consist of every 6meters and minimum length is 30m
- This tower crane freestanding height is 40m and max.height is 150m with more mast section and 5sets anchorages.
- The max. Load capacity is 6t and tip load at the end jib is 1.0t.
Specifications for 2024 Brand New Fixed Hammerhead Tower Crane Prices Of QTZ5612 Construction Cranes
| Main Performance | Main Specifications | |
| Rated lifting moment (KN.m) | 800 | |
| Max. lifting load(t) | 6 | |
| Tip load(t) | 1.2 | |
| Working range(m) | 56 | |
| Lifting height(m) | Freestanding height | 40 |
| Attaching height | 150 | |
| Mast section | Main limb (mm) | 135×12 Square tube/ Q345B |
| Section size(mm) | 1600×1600×2500 | |
| Lifting jib | Upper chord(mm) | Ø89×8 / 20# |
| Lower chord(mm) | 100×8 Square tube / Q345B | |
| Parallel face width (mm) | 1360 | |
| Counter jib | Main limb(mm) | ［32b/ Q235B |
| Length(m) | 12.636 | |
| Hoisting mechanism | Reducer | 24TQL15 |
| Motor | YZTD200L-2/4/16p-24/24/5.4KW | |
| Brake | YZW3H-200/45 | |
| Wire rope | 6×37-13-1770-1-1 right lay | |
| Hoisting speed (m/min) | 80/40/8.5 40/20/4.25 | |
| Slewing mechanism | Reducer | XX80.195 (double) |
| Motor | YZR132M1-6-3.7KW×2 (double) | |
| Coupler | YOX250A×2 | |
| Slewing speed (r/min) | 0.6 | |
| Trolleying mechanism | Reducer | BE3358X |
| Motor | YDEJ132S-4/8-3.3/2.2KW | |
| Trolleying speed( m/min) | 40/20 | |
| Jacking-up speed |
Hydraulic pump station Jacking oil cylinder |
TQZ80/160/125 |
| Motor | Y132M-7.5 | |
| Slewing bearing | Type | 1250.40 |
"6S" SERVICES for 2024 Brand New Fixed Hammerhead Tower Crane Prices Of QTZ5612 Construction Cranes
Smart 1- Collaborate with others to solve your entire problem
Smart 2- Our goal is to provide you with a personalized service and complete solution
Specialized 1- Strict raw material control, only the best will pass the test
Specialized 2-Strict quality control, making flawless finished products
Speedy 1- Professional sales team, guarantee reply with-in 12 hours
Speedy 2- Speedy dispatch with minimal delays
Study 1—Study traditional Chinese values. Educating to be better person first, making better products after that
Study 2-Educate ourselves with professional for better service
Support 1-We have skilled expert providing all technical support
Support 2-Our front line workers are united and skilled
Sincere1- Think from our customers' perspective and fulfill their needs with our best effort.
Sincere 2-A warm welcome for every customer, build genuine relationships from friends all over the Globle.
Main features for 2024 Brand New Fixed Hammerhead Tower Crane Prices Of QTZ5612 Construction Cranes
1.Height of the tower crane is confirmed according to height of building, lifting ability of the tower crane is independent of height.
2. The tower crane with features as high working speed, stead work condition and high efficiency.
3. Hoisting jib has three jib ranges. This meets project needs more widely.
4. Safety devices are complete. The working is reliable.
5. Lifting jib adopts rigid double tension bars with features as light structure.
6. The eyeshot of cab is well, and the cab is installed independently, which creats a preferable working condition for handlers.
7. Location of the tower crane is reasonable, and the externality of the crane is beautiful.
8. The operation is simple and the maintenance is convenient.

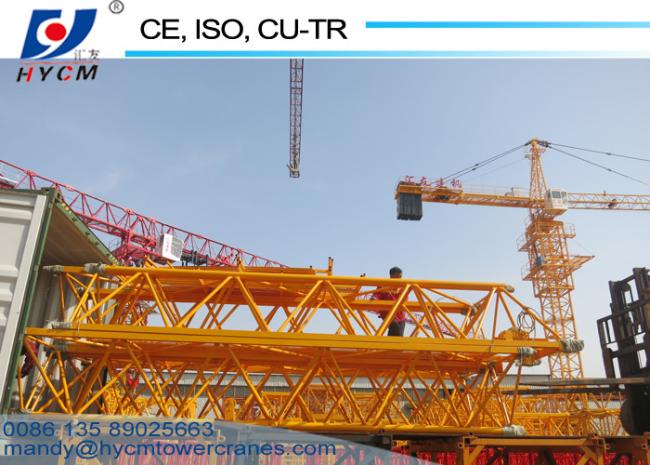

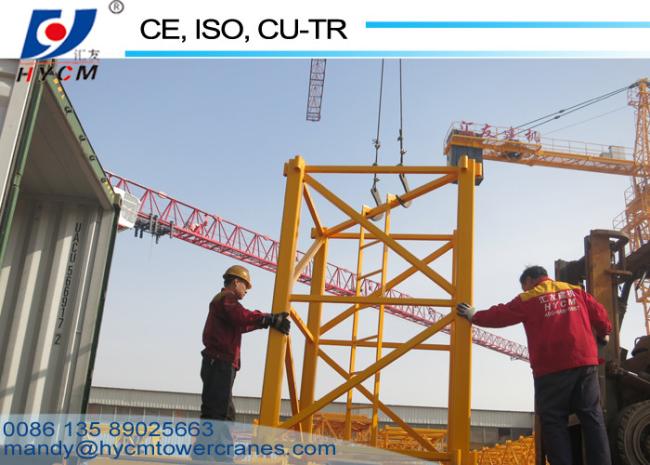

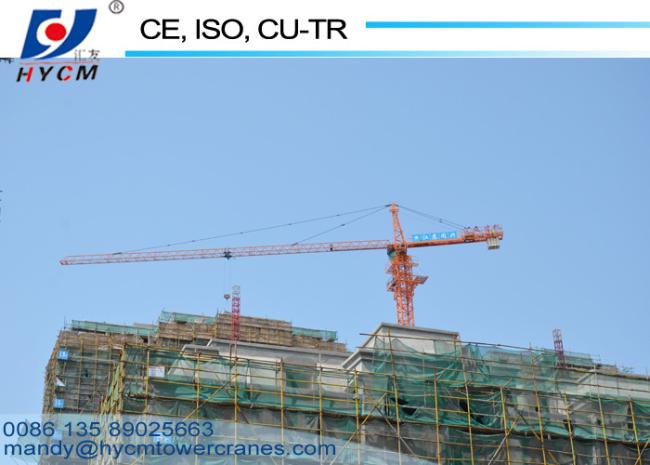

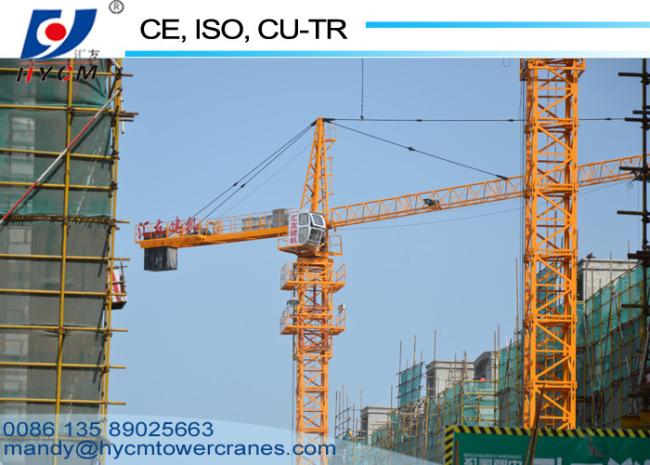

Photos for 2024 Brand New Fixed Hammerhead Tower Crane Prices Of QTZ5612 Construction Cranes
