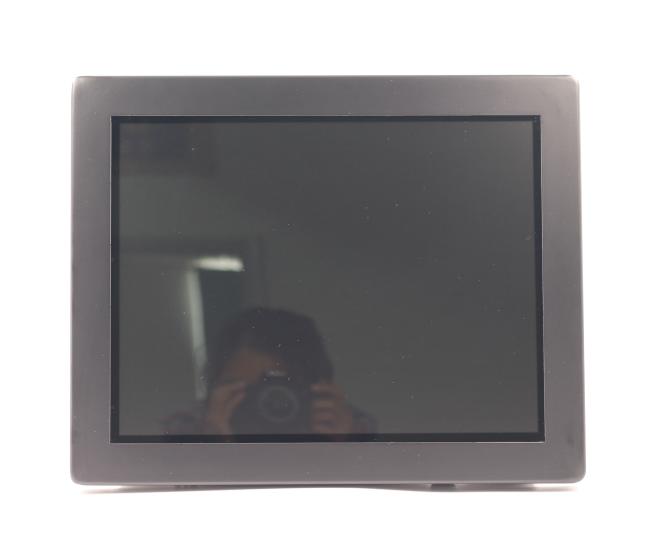

HMI PCAP/PCT Touch Monitor PC All In One 15 Inch Intel J1900 With Round Corners
HMI PCAP/PCT Touch industrial all in one panel PC 15inch Intel J1900 rugged chassis with round corners for store
ITD industrial chassis panel PCs is a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments. ITD chassis panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities which are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- All steel construction designed for harsh & industrial environments
- Easy-to-install VESA(75/100mm) wall mounting
- Optional touchscreens like resistive, IR, SAW, PCAP
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project
|
Chassis Panel PC
|
|||
| Model Name | ITD15PPCG1L** | ||
| IP Rating | IP65 Front Panel Optional | ||
|
PC Systems Options
|
|||
| ARM Android Based RK3288(RK3368 optional) | X86 Windows Based | X86 Windows Based | |
| CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel® Celeron J1900 | CPU: Intel Core i3/i5/i7 | |
| Chipset: N/A | Chipset: Intel® NM10 Express | Chipset: Intel® HD Graphics, Support 1080p | |
| Memory: 1G/2G | Memory: 2GB(Max. 8GB) | Memory: 2GB(Max. 8GB) | |
| HDD/SSD: 8G | HDD/SSD:500G/64G | HDD/SSD:500G/64G | |
| 1×HDMI | 1×VGA, 1×HDMI | 1×VGA, 1×HDMI | |
| 1×USB 2.0 | 2×USB 2.0, 2×USB3.0 | 2×USB 2.0, 2×USB3.0 | |
| 1×mini-SD slot | 1×COM(RS232/422/485) | 1×COM(RS232/422/485) | |
| 1×LAN | 1×LAN | 1×LAN | |
| 1×Audio Out | 1×Audio Out, 1×MIC In | 1×Audio Out, 1×MIC In | |
| Expansion: SSD | Expansion: USB, COM, Mini-PCIe | Expansion: USB, COM, Mini-PCIe | |
|
LCD Panel
|
|||
| Screen Diagonal (Inch) | 15” | ||
| Display Active Screen Size (cm) | 304.13(H)×228.10(V) | ||
| Aspect Ratio | 4:3 | ||
| Physical Resolution | 1024×768 | ||
| Maximum Resolution Supported | 1920×1080 | ||
| Colors | 16.2M | ||
| Brightness (cd/m²) | 250 | ||
| Contrast Ratio | 700:1 | ||
| View Angels | 80/80/60/80 | ||
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours'Lifetime | ||
|
Touch Panel
|
|||
| Touch Options | Resistive, IR, PCAP, SAW | ||
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi | ||
|
Operation
|
|||
| Operating Temperature Range | -10~60°C (-20~70°C Optional) | ||
| Humidity Range (RH) | 10-90% | ||
| 24/7/365 Use | Supported | ||
|
Power
|
|||
| Power Indicator | Green LED | ||
| Power Input | DC 12V | ||
| Power Consumption | 30W | ||
|
Order Information
|
|||
| 15”Chassis Panel PC with Resistive Touch, J1900 | ITD15PPCT1LJ1 | ||
| 15”Chassis Panel PC with PCAP Touch, J1900 | ITD15PPCT5LJ1 | ||
| 15”Chassis Panel PC with IR Touch, J1900 | ITD15PPCT2LJ1 | ||
| 15”Chassis Panel PC with Tempered Glass, J1900 | ITD15PPCG1LJ1 | ||
| 15”Chassis Panel PC with Resistive Touch, i5 | ITD15PPCT1LI5 | ||
| 15”Chassis Panel PC with PCAP Touch, i5 | ITD15PPCT5LI5 | ||
| 15”Chassis Panel PC with IR Touch, i5 | ITD15PPCT2LJ1 | ||
| 15”Chassis Panel PC with Tempered Glass, i5 | ITD15PPCG1LI5 | ||
