Industrial HMI 10 Inch PoE Panel Mount Touch Screen Pc
10 inch flat surface PC panel touch screen PoE industrial HMI with RFID 13.56MHz AR reader
FEATURES
▪ Easy-to-clean, true flat front surface without bezel
▪ Flexible, reliable, and ruggedized touch screen computers for open platform HMI/SCADA
▪ Web camera, RFID and thermal printer integrated
▪ Ten independent touch points (with Windows 7/8/10, Android, Linux operating systems)
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Provides improved power efficiency and reduced consumption
▪ Ruggedized levels of NEMA 12, NEMA 4, IP52, IP54, IP65 ratings for front panel
▪ Aluminum front bezel and steel chassis construction designed for harsh and industrial environments
▪ CE, FCC, RoHS Compliance
OPTIONALS
•DC 24V, DC9-36V, AC100-240V
•High brightness, sunlight readable
•Resistive touch screen, tempered glass
•Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, etc
Specs:
| Panel | Cell Type/Glass Surface | TFT |
| Size | 10.1” | |
| Aspect Ratio | 16:10 | |
| Active Area | 216.96(H) x 135.6(V)mm | |
| Pixel Pitch | 0.1695× 0.1695mm | |
| Native Resolution | 1280 x 800 | |
| Colors | 16.7M | |
| Brightness | 350cd/㎡ | |
| Contrast | 800:1 | |
| Response Time | 16ms | |
| Viewing Angle(Typical) | 85/85/85/85 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SPECIFICATION
| System | CPU | Intel® Celeron J3160 1.6GHz Processor |
| BIOS | AMI | |
| Chipset | Intel Braswell SoC | |
| Memory | 1xSO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB | |
| Graphic Chipset | Intel HD Graphics (By CPU) | |
| Storage | 1 x SATA, 1 x mSATA, Default to 32GB SSD | |
| LAN | 1 x 10/100/1000Mbps Ethernet | |
| Input / Output | Serial Ports | Optional |
| USB Ports | 1 x USB | |
| VGA Port | Optional | |
| HDMI Port | Optional | |
| Audio Card | Optional | |
| Power | Power Input | PoE |
| Operation/Power Saving | 20W | |
| Environment Considerations | Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ | |
| Relative Humidity | 10%~90% | |
| Order Information | 10.1” Panel PC with PCAP Touch+RFID&QR Reader /ITD101PPCT5XJ1-RFID-QR | |
| 10.1” Panel PC with Resistive Touch+RFID&QR Reader /ITD101PPCT1XJ1-RFID-QR | ||
| 10.1” Panel PC with Tempered Glass+RFID&QR Reader /ITD101PPCG1XJ1-RFID-QR | ||

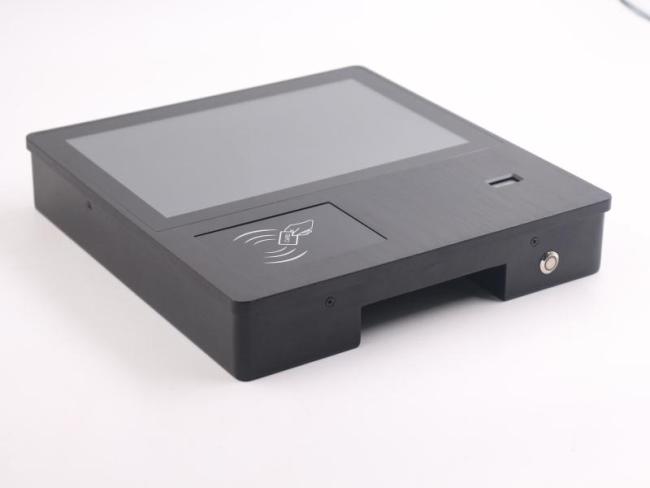

Image:
