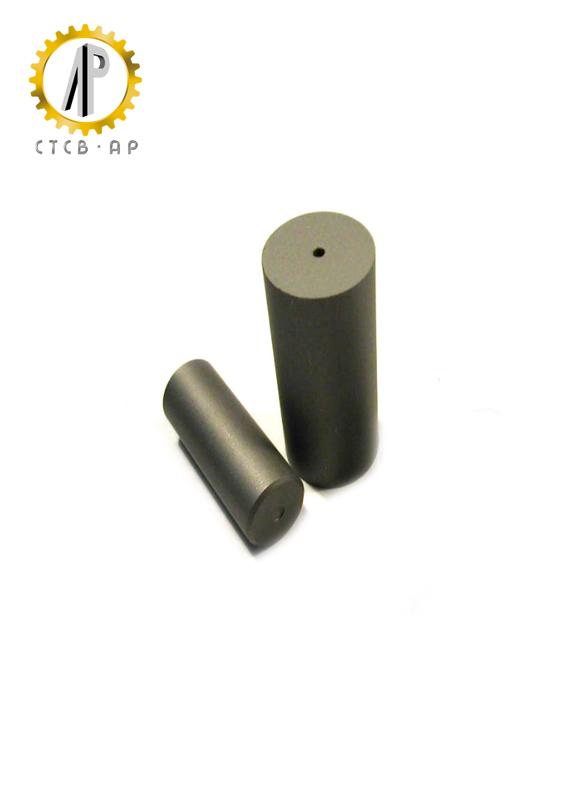

High Density Custom Tungsten Carbide Products , Industrial Cutting Tools OME/ODM
Good Wear-Reistance High Density Custom Carbide Products For Industrial:
1. Main composition : W+Ni + Fe
2.density range from 16 to 19 g/cm3
3. High tensile strength ( 800-1300 Mpa )
4. Good conductivity
5. Good brazing ability
Our advantage :
1> Use 100% tungsten carbide raw material
2> ISO 9001 Certification
3> with ten year experience
4> Advanced technology , automatic pressing , HIP sintering
5> the tolerance of polish and ground can be +0.005/-0.005m
Application:
Cemented carbide as a tool material has been increasingly used for cutting tools, wear-resistant tools, impact-resistant tools, and other products with special purpose. Cemented carbide was first used in stretching mold area and has gone though cast iron mold, alloy steel mold, diamond dies, cemented carbide dies, polycrystalline module die and other developmental stages. With the property of high wear resistance, good polishing performance, low friction coefficient, etc., cemented carbide drawing die has been a substitute of steel mould which is used to stretching steel and non-ferrous metal .
Grade list of high density carbide parts :
| Table 1. Properties of tungsten alloy (AMS -T-21014) | |||
| Class | Nominal tungsten (weight percent) | Density(g/cc) | Hardness(HRC) (maximum) |
| 1 | 90 | 16.85-17.25 | 32 |
| 2 | 92.5 | 17.15-17.85 | 33 |
| 3 | 95 | 17.75-18.35 | 34 |
| Table 2.Mechanical Properties -Minimum Value(AMS-T-21014) | |||
| Class | Ultimate tensile strength (Ksi) | Yield strength at 0.2 percent offset(ksi) |
Elongation (percent) |
| 1 | 110 | 75 | 5 |
| 2 | 110 | 75 | 5 |
| 3 | 105 | 75 | 3 |
| 4 | 100 | 75 | 2 |
If you don't see here what you are looking for, please note that we have more standard and customized sizes available from stock not listed here and can be shipped out in short time.
About us :
Zhuzhou Apple Carbide Tools Co., Ltd. is a professional manufacturer of tungsten carbide products in China.
With a wide range of products including carbide strips, STB blanks, carbide rods, carbide dies, carbide slitting saws, coated inserts, milling inserts ,end mills and many customized products. With a large selection of carbide grades for woodworking, metalworking and working of composite materials, we also provide carbide materials for your special use. For more information about us, please visit our website or contact us directly .
Any inquiry ,welcome to contact us for more details ,thanks for your support to Apple carbide !
