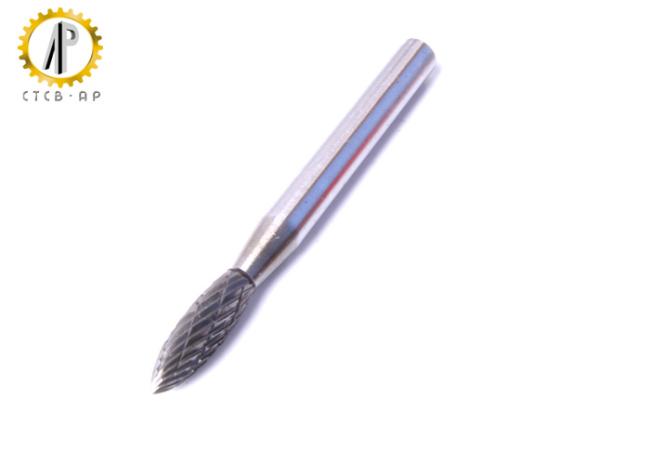

Flame Shape H Carbide Grinding Burrs , Die Grinder Carbide Burr For Aluminum
Tungsten Carbide Bur Of Flame Shape H Deburring Cutting Tools
Tungsten Carbide Bur Introduction
Tungsten carbide burs can be used with both electrically-powered and pneumatically-powered hand-held tools to cut materials like aluminium, brass, titanium alloys, cast iron, copper, zinc alloys, bronze, nickel, various plastics, alloy steels, etc.
Tungsten carbide burs can be used in a wide variety of fields, such as dentistry, diamond cutting, jewelry making, and auto head porting, sculpting, welding, and windshield repairing.
Advantages:
1. High production efficiency, 10 times higher than manual boring tool and wheel handle grinding wheel.
2. Good processing quality, highly polished, can process a variety of high-precision mold cavity.
3. Long life, durable, ten times longer than high speed steel tools and 200 times longer than alumina abrasive wheels.
4. Safe and easy to use, can reduce the labor intensity of workers and improve the working environment.
Recommended grades of carbide rotary burrs
| Grade | Co(%) | Density | Hardness | TRS (Mpa) |
Grain Size | |
| HRA | HV10: | |||||
| K10 | 6.0±0.2 | 14.85~15.01 | 90.5~91.2 | 1450~1520 | 2000 | fine |
| K20 | 8.0±0.2 | 14.64~14.80 | 89.7~90.5 | 1370~1450 | 2200 | fine |

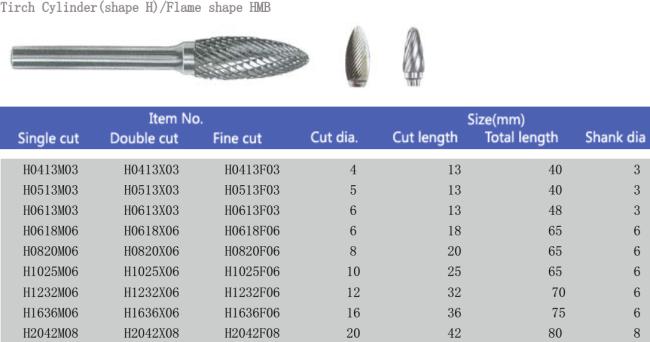

Popular Items Of Shape H Tungsten Carbide Bur
| ITEM NO. |
Cutting Diameter mm |
Cutting Length mm |
Overall Length mm |
Shank Diameter mm |
| H0307X03 | 3 | 7 | 38 | 3.0 |
| H0613X03 | 6 | 13 | 48 | 3.0 |
| H0618X06 | 6 | 18 | 65 | 6.0 |
| H0820X06 | 8 | 20 | 65 | 6.0 |
| H1025X06 | 10 | 25 | 65 | 6.0 |
| H1232X06 | 12 | 32 | 80 | 6.0 |
| H1636X06 | 16 | 36 | 80 | 6.0 |
Catalogue of Shape H Tungsten Carbide Bur
