Shape L Taper Radius End Tungsten Carbide Burs For Wood Carving Polished

Price Negotiable
Delivery Time: 7-25work days
Brand: CTCB-AP
Product Description

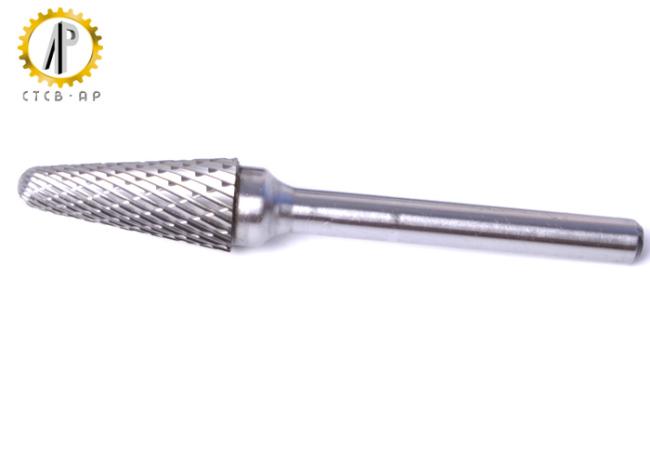

Tungsten Carbide Bur Of Shape L Taper Radius End Carbide Tools





Tungsten Carbide Bur Application:

  • They are widely used in various industrial sectors such as machinery, automobiles, ships, craft sculptures, etc.
  • Finishing various metal mold cavities, such as shoe molds.
  • Work on various metallic and non-metallic craft sculptures.
  • Cleaning of castings, forgings and weldments. Trimming, burrs and weld lines.
  • Chamfer and round the hole surface of the machine part to clear the pipe.
  • sets on the impeller wheel assembly.

Advantages:

  • 1. High production efficiency, 10 times higher than manual boring tool and wheel handle grinding wheel.
  • 2. Good processing quality, highly polished, can process a variety of high-precision mold cavity.
  • 3. Long life, durable, ten times longer than high speed steel tools and 200 times longer than alumina abrasive wheels.
  • 4. Safe and easy to use, can reduce the labor intensity of workers and improve the working environment.



Recommended grades of carbide rotary burrs

Grade Co(%) Density Hardness TRS
(Mpa)
Grain Size
HRA HV10:
K10 6.0±0.2 14.85~15.01 90.5~91.2 1450~1520 2000 fine
K20 8.0±0.2 14.64~14.80 89.7~90.5 1370~1450 2200 fine



Popular Items Of Shape L Tungsten Carbide Bur

ITEM
NO.
Cutting
Diameter
mm
Cutting
Length
mm
Overall
Length
mm
Shank
Diameter
mm
L0315X03 3 15 38 3
L0613X03 6 13 48 3
L0616X06 6 16 65 6
L0822X06 8 22 65 6
L1025X06 10 25 65 6
L1228X06 12 28 80 6
L1633X06 16 33 80 6

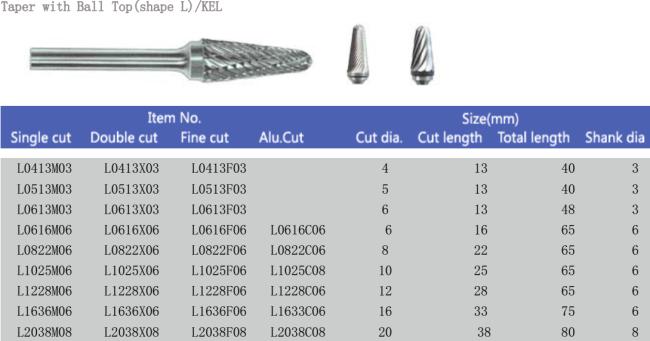

Catalogue of Shape L Tungsten Carbide Bur
