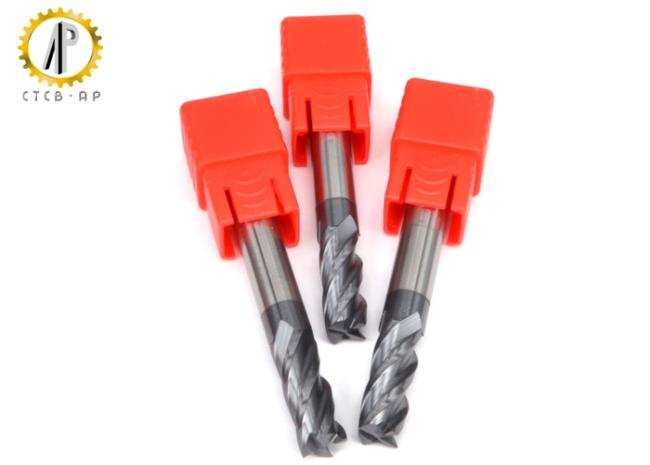

High Helix Tungsten Carbide End Mill / Flat End Mill Bits For Stainless Steel Four Flute
Four Flutes Solid Carbide Flat End Mill For Gernral Machining Purpose
Solid Carbide Flat End Mill is also known as " square end milling cutter or Flattened End Mills". The corners of these mills are sharp and generate a 90° angle. Flat End Mills can be general purpose or high perfomance geometries. They can be used used for plunging, grooving, side milling, face milling, and counter boring. These are the most popular milling cutters in the industry. Flat End Mills are available in a wide variety of diameter sizes.
End Tooth Type of Solid Carbide End Mills
|
6-flute flattened end mills
|
Machining Operation of Solid Carbide End Mills
|
Flatttend End Mills for
Side Machining
|
|
Flatttend End Mills for
shoulder Machining
|
|
Flatttend End Mills for
straight slot Machining
|
|
Flatttend End Mills for
deep slot Machining
|
Catalogue of our Carbide solid End Mill
| Specifications | (mm) Basic size |
flute |
shape |
|||
| D | d | H | L | |||
| MSS40100A-D4 | 3 | 4 | 1 | 50 | 4 | M1 |
| MSS40150A-D4 | 4 | 4 | 1.5 | 50 | 4 | M1 |
| MSS40200A-D4 | 6 | 4 | 2 | 50 | 4 | M1 |
| MSS40250A-D4 | 8 | 4 | 2.5 | 50 | 4 | M1 |
| MSS40300A-D4 | 8 | 4 | 3 | 50 | 4 | M1 |
| MSS40400A-D4 | 11 | 4 | 4 | 50 | 4 | M2 |
| MSS40100A | 3 | 6 | 1 | 50 | 4 | M1 |
| MSS40150A | 4 | 6 | 1.5 | 50 | 4 | M1 |
| MSS40200A | 6 | 6 | 2 | 50 | 4 | M1 |
| MSS40250A | 8 | 6 | 2.5 | 50 | 4 | M1 |
| MSS40300A | 8 | 6 | 3 | 50 | 4 | M1 |
| MSS40400A | 11 | 6 | 4 | 50 | 4 | M1 |
| MSS40500A | 13 | 6 | 5 | 50 | 4 | M1 |
| MSS40600A | 16 | 6 | 6 | 50 | 4 | M2 |
| MSS40700A | 20 | 8 | 7 | 60 | 4 | M1 |
| MSS40800A | 20 | 8 | 8 | 60 | 4 | M2 |
| MSS40900A | 22 | 10 | 9 | 75 | 4 | M1 |
| MSS41000A | 25 | 10 | 10 | 75 | 4 | M2 |
| MSS41100A | 26 | 12 | 11 | 75 | 4 | M1 |
| MSS41200A | 30 | 12 | 12 | 75 | 4 | M2 |
| MSS41400A | 32 | 14 | 14 | 75 | 4 | M2 |
| MSS41600A | 45 | 16 | 16 | 100 | 4 | M2 |
| MSS41800A | 45 | 18 | 18 | 100 | 4 | M2 |
| MSS42000A | 45 | 20 | 20 | 100 | 4 | M2 |
