Various Sizes Tungsten Carbide Parts Carbide Doctor Ring Knife Long Working Life

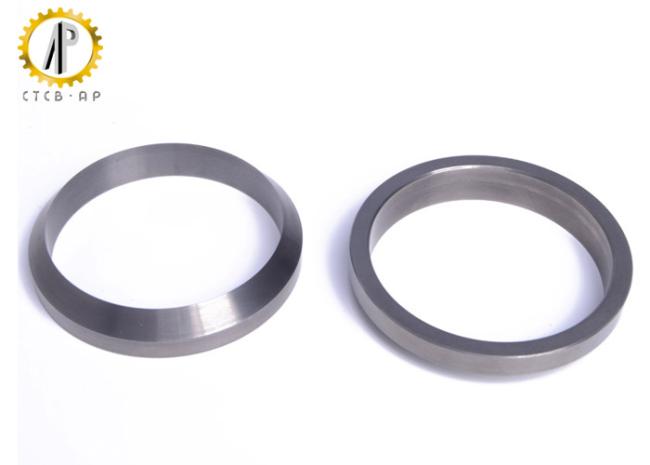

Various Sizes Carbide Doctor Ring Knife with Long Working Life
We provides an extensive list tungsten carbide rings for use in the pad printing process. The company is capable of producing any kind of doctor ring as per the requirements of customers.
Common size of carbide ring for pad printing:
| No. |
Size (Out. Dia*In. Dia*Height) |
Cutting Edge Shape | Cutting Sides |
| 1 | Φ43*Φ35*10mm | L type / V type | Single / Double |
| 2 | Φ55*Φ45*12mm | L type / V type | Single / Double |
| 3 | Φ65*Φ60*5mm | L type / V type | Single / Double |
| 4 | Φ65*Φ58*10mm | L type / V type | Single / Double |
| 5 | Φ65*Φ60*5.2mm | L type / V type | Single / Double |
| 6 | Φ70*Φ60*12mm | L type / V type | Single / Double |
| 7 | Φ78*Φ70*6mm | L type / V type | Single / Double |
| 8 | Φ80*Φ70*12mm | L type / V type | Single / Double |
| 9 | Φ70*Φ65*5.2mm | L type / V type | Single / Double |
| 10 | Φ90*Φ82*12mm | L type / V type | Single / Double |
| 11 | Φ94*Φ86*12mm | L type / V type | Single / Double |
| 12 | Φ90*Φ85*8mm | L type / V type | Single / Double |
| 13 | Φ100*Φ90*12mm | L type / V type | Single / Double |
| 14 | Φ110*Φ100*12mm | L type / V type | Single / Double |
| 15 | Φ120*Φ110*12mm | L type / V type | Single / Double |
| 16 | Φ130*Φ120*12mm | L type / V type | Single / Double |
| 17 | Φ140*Φ130*12mm | L type / V type | Single / Double |
| 18 | Φ150*Φ140*12mm | L type / V type | Single / Double |
| 19 | Φ150*Φ140*13mm | L type / V type | Single / Double |
| 20 | Φ150*Φ140*15mm | L type / V type | Single / Double |
| 21 | Φ160*Φ150*12mm | L type / V type | Single / Double |
| 22 | Φ165*Φ155*16mm | L type / V type | Single / Double |
(We can also supply sizes as per your request.)
If you don't see here what you are looking for, please note that we have more standard and customized sizes available from stock not listed here and can be shipped out in short time.
About us :
Zhuzhou Apple Carbide Tools Co., Ltd. is a professional manufacturer of tungsten carbide products in China.
With a wide range of products including carbide strips, STB blanks, carbide rods, carbide dies, carbide slitting saws, coated inserts, milling inserts ,end mills and many customized products. With a large selection of carbide grades for woodworking, metalworking and working of composite materials, we also provide carbide materials for your special use. For more information about us, please visit our website or contact us directly .
Any inquiry ,Welcome to contact us for more details ,thanks for your support to Apple carbide !
