track ceiling lights 20W 2000LM 80Ra Flicker free IP44 AC220V Citizen Chip Power gear driver for commercial lighting
track ceiling lights 25W 2500LM 80Ra Flicker free IP44 AC220V Citizen Chip Power gear driver for commercial lighting
1. LED track light Techinical Data :
| Technical Specification | Driver | |||||
| LED brand | Citizen Version 6 | Driver brand | Power gear +Osram | Housing materials | Die-casting Aluminum Alloy | Driver in track |
| CCT | 2700/3000/4000K | Output Voltage | DC36V | IP Rating | IP44 | Powergear no flicker |
| CRI | 80/90/97 | Current | 250mA | Finish color | White / Black | Global fliker free |
| Lamp efficiency | 90-100lm/W @CRI80 /90/97 | Input Voltage | AC200-240V | THD | <15% | Lifud no flicker |
| Lens beam angle | 15°/24°/38°/60° | PF | >0.9 | Dimmable | Yes | Osram no flicker |
| Track adapter | 4-wire 3-phase | System wattage | 25W | Warranty | 5 years | Powergear TCI DALI |
2. track ceiling lights 25W Introduction:
3. track ceiling lights 25W Features:
4. track ceiling lights 20W Specification:
5. Packing Details:
| Code | Dimension(mm) | Size(mm) | Produce Weight(kg) |
Carton Weight(kg) |
Carton Size |
Qty/ CTN |
||||
| A | B | C |
N.W/ PC |
G.W/ PC |
N.W/ CTN |
G.W/ CTN |
||||
|
AD-TL-O-10W |
L140 | D62 | L160 | D62*L140 | 0.45 | 0.55 | 13.5 | 16.5 | 44*37*42 | 30 |
| AD-TL-O-15W | L140 | D62 | L160 | D62*L140 | 0.45 | 0.55 | 13.5 | 16.5 | 44*37*42 | 30 |
| AD-TL-O-20W | L108 | D90 | L160 | D90*L108 | 0.85 | 0.95 | 17 | 19 | 54*39*40 | 20 |
| AD-TL-O-25W | L108 | D90 | L160 | D90*L108 | 0.85 | 0.95 | 17 | 19 | 54*39*40 | 20 |
| AD-TL-O-30W | L108 | D90 | L160 | D90*L108 | 0.85 | 0.95 | 17 | 19 | 54*39*40 | 20 |
| AD-TL-O-35W | L150 | D110 | L160 | D110*L150 | 1.07 | 1.17 | 17.12 | 18.72 | 59*43*40 | 16 |
| AD-TL-O-40W | L150 | D110 | L160 | D110*L150 | 1.07 | 1.17 | 17.12 | 18.72 | 59*43*40 | 16 |
| AD-TL-O-45W | L150 | D110 | L160 | D110*L150 | 1.07 | 1.17 | 17.12 | 18.72 | 59*43*40 | 16 |
6. Application:
Applicable for residential lighting in bedroom, living room, corridor etc, also suitable for commercial lighting in office, hotel, restaurant etc.
7. Installation Procedure:
8. Dali Driver Installation:
9. Track installation:CEILING MOUNTED:

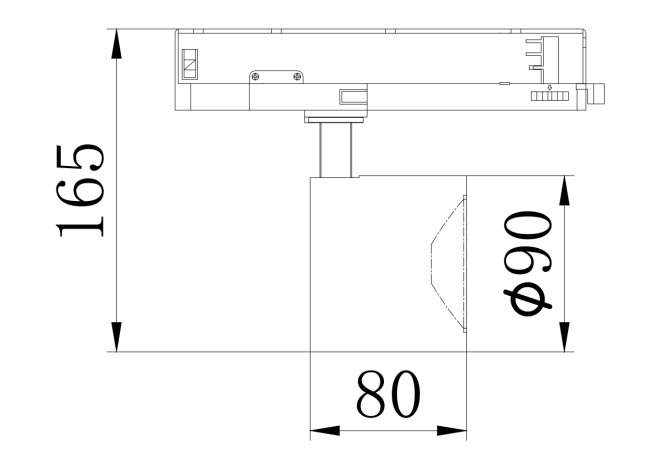

10. 25W Mechanical drawing D90*L80mm:
11. Picures of LED Track Lights:
12. Remarks
MOQ: 100pcs, if order quantity is less than MOQ, price will be 10% higher.
Deliery time: 7-15 Working days
Payment: Small order 100% paymentsi in advanced; over 10000 USD can pay 30% deposit, 70% before shipment
