Anti Glare LED Ceiling Panel Light 18W 3 colors changing 230mm 100LM/W ABS Black housing 3mm LGP IP42 home lighting
Price:
Negotiation
MOQ:
One Carton
Delivery Time:
5 - 8 work days
Brand:
ADO
Product Description
Anti Glare LED Ceiling Panel Light 18W 230mm 3 colors chaning 100LM/W ABS Black housing 3mm LGP IP42 home lighting
1. Anti Glare flat panel led ceiling light Optic&Electric Parameter :
| Optic&Electric Parameter | |
| Power | 18W |
| Driver | Non-isolated,Constant current,Built-in |
| transfer efficiency | ≥0.92 |
| Input Voltage | AC85-277V 50/60Hz |
| Output | DC70-120V 200MA |
| Power Factor | ≥0.96 |
| LED Brand | SANAN 2835 |
| Color | 3000-6500K |
| Lighting Effect | ▲ 160-170LM/W |
| LED QTY | 81*2PCS |
| Luminous Flux | ▲ 1700-1900LM |
| Ra | ▲ ≥80 |
| Beam Angle | 120º |
| Operating Temperature | -40℃-50℃ |
| Theory of Lighting | LED Sidelit+LGP+Reflecting film |
| Whole Light Effect | ▲ 100LM/W |
2. Anti Glare flat panel led ceiling light Material& Physical Parameter:
| Material& Physical Parameter | |
| Material | ABS injection molding |
| Surface Treatment | Spray white/Sand black/Other |
| LGP | 3.0MM Nanometer |
| Diffuser Plate | 1.2MM PS |
| Light's Body | ▲ Mold injection molding |
| Material of bottom | ▲ ABS |
| Installation Way | Surface Ceiling/Suspension Wire |
| Smart Mode | Change color by dial color switch |
| Material of Strip Light | High thermal conductivity aluminum substrate |
| Product's Size | Φ230*25MM |
| Carton's Size | 47*33.5*48.5CM |
| Package Way | Natural Package/ Customize Package |
| N.W ( KGS) | 0.46kg |
| QTY/CTN | 40PCS |
| Certification | CE/CB/ROHS/EMC |
| IP Rating | IP42 |
3. Features:
1. 3 colors can be changed by dial color switch
2. 3 colors can be changed by dial wall switch
3. The sizes are: Φ230*25MM, Φ300*25MM, Φ400*25MM, Φ500*27MM, Φ600*27MM, Φ750*27MM
4. 18w, other powers are 24w, 30w, 40w, 50w, and 70w.
5. The fixture color can be white and black.
6. The color temperature is 3000K-6500K.
7. Installation: can be surface mounted and suspended mounted.
7. Installation: can be surface mounted and suspended mounted.
4. Other Models:
| Model | Size(mm) | Lumen |
| AD-PL-2511-18W | Φ230*25MM | ±1800LM |
| AD-PAL66-B-24W | Φ300*25MM | ±2400LM/W |
| AD-PAL66-C-30W | Φ400*25MM | ±3000LM/W |
| AD-PAL312-B-40W | Φ500*27MM | ±4000LM/W |
| AD-PAL312-C-50W | Φ600*27MM | ±5000LM/W |
| AD-PAL612-B-70W | Φ750*27MM | ±7000LM/W |
5. Product Certifications:
1,Product Patent No.:ZL202130302456.X
2,TUV-CB Certification
3,TUV-CE Certification
4,ERP Certification
5,FCC Certification
6. Environmental Requirement:
| Storage Temperature | -40℃to+70℃ |
| Storage Humidity | 10%RH to80% RH |
| Working Temperature | -20℃to+40℃ |
| Working Humidity | 10%RH to90% RH |

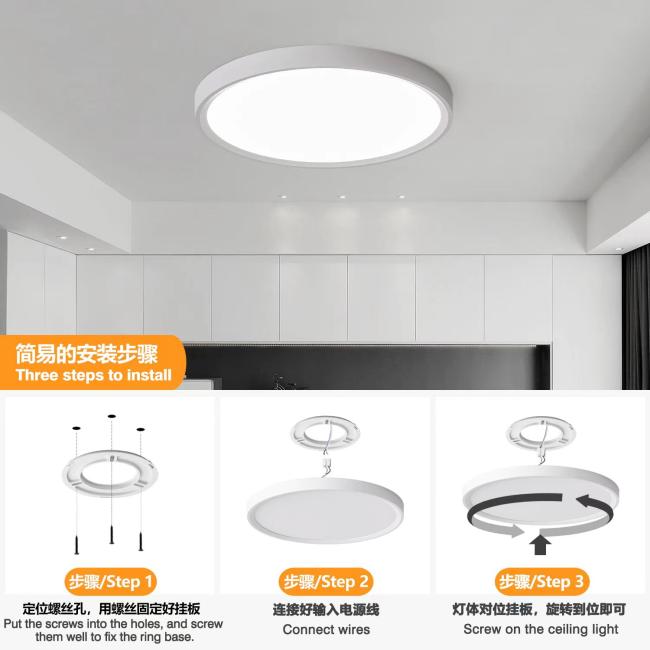

7. Surface Mounted Installation:
8. Product detail display:
9. Lighting Effect:
10. Optical Parameter Display
