China led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty for sale

led kitchen ceiling track lighting dimmable 40W White aluminum housing 15° beam angle 5000K IP44 5years warranty

Price Negotiable

Price: USD

MOQ: 100pcs

Delivery Time: 3-7 days

Brand: ADO

Product Description

track ceiling lights 25W 2500LM 80Ra Flicker free IP44 AC220V Citizen Chip Power gear driver for commercial lighting

1. LED track light Techinical Data :

Technical Specification						Driver
LED brand	Citizen Version 6	Driver brand	Power gear +Osram	Housing materials	Die-casting Aluminum Alloy	Driver in track
CCT	2700/3000/4000K	Output Voltage	DC36V	IP Rating	IP44	Powergear no flicker
CRI	80/90/97	Current	250mA	Finish color	White / Black	Global fliker free
Lamp efficiency	90-100lm/W @CRI80 /90/97	Input Voltage	AC200-240V	THD	<15%	Lifud no flicker
Lens beam angle	15°/24°/38°/60°	PF	>0.9	Dimmable	Yes	Osram no flicker
Track adapter	4-wire 3-phase	System wattage	40W	Warranty	5 years	Powergear TCI DALI

2. track ceiling lights 25W Introduction:

This track light is an elegant design. High lumen COB chip and PMMA lens and Aluminum reflflector offffer a uniform

lighting output. Die-casing aluminum lamp body provides excellent heat dissipation.

Lens and reflflector design meet difffferent customer needs, and creates a comfortable visual experience. Multiple

beam angle lens and reflflector optional,Easy installation, recreational for various application.

3. track ceiling lights 25W Features:

-Lens & reflflector design.

-CRI 80/90/97Ra available.

-Modular lens and reflflector design: 15°/24°/38°/60°

-Flicker free internal driver.

-Dimming way: Non-dim, triac dim, DALI dim.

-Power: 10w, 15w, 20w, 25w, 30w, 35w,40w, 45w

-LED Driver Options: Lifud, Powergear, Osram, Global

4. Lumen Data:

Model No.	CCT	CRI	LED Power	System Power	LED Output	System Output
AD-TL-O-15W	2700K	CRI97/90/80	12.5W	15W	1750LM	1500LM
AD-TL-O-20W	3000K	CRI97/90/80	18W	20W	2400LM	2000LM
AD-TL-O-25W	4000K	CRI97/90/80	22.5W	25W	3000LM	2500LM
AD-TL-O-30W	3000K	CRI97/90/80	27W	30.5W	3600LM	3000LM
AD-TL-O-35W	4000K	CRI97/90/80	29.5W	34.5W	3900LM	3400LM
AD-TL-O-40W	5000K	CRI97/90/80	34.5W	39.5W	4600LM	3900LM

4. track ceiling lights 20W Specification:

1. Track adapter: 2/3/4 wire 1 phase, 4/6 wire 3 phase

2. Size & Wattage: D62X140mm(10w, 15w), D90x108mm(20w, 25w, 30w), D110x150mm(35w, 40w, 45w)

3. Optics & Beam angle: Lens and Reflector, 15/24/38/60°

4. CCT&CRI: 2000K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K, Ra>80/90/97

5. Finish color: Matt White, Matt Black, Matt Grey and other customized color

6. Body materials: Die cast aluminum

7. Dimmable solution: DALI, TRIAC, 0/1-10V, BLE, ZigBee,RF

8. Warranty: 5 years from the delivery time Lens version Reflector version

9. Certificates: CE ROHS, SAA

5. Packing Details:

Code	Dimension(mm)			Size(mm)	Produce Weight(kg)		Carton Weight(kg)		Carton Size	Qty/ CTN
Code	A	B	C	Size(mm)	N.W/ PC	G.W/ PC	N.W/ CTN	G.W/ CTN	Carton Size	Qty/ CTN
AD-TL-O-10W	L140	D62	L160	D62*L140	0.45	0.55	13.5	16.5	443742	30
AD-TL-O-15W	L140	D62	L160	D62*L140	0.45	0.55	13.5	16.5	443742	30
AD-TL-O-20W	L108	D90	L160	D90*L108	0.85	0.95	17	19	543940	20
AD-TL-O-25W	L108	D90	L160	D90*L108	0.85	0.95	17	19	543940	20
AD-TL-O-30W	L108	D90	L160	D90*L108	0.85	0.95	17	19	543940	20
AD-TL-O-35W	L150	D110	L160	D110*L150	1.07	1.17	17.12	18.72	594340	16
AD-TL-O-40W	L150	D110	L160	D110*L150	1.07	1.17	17.12	18.72	594340	16
AD-TL-O-45W	L150	D110	L160	D110*L150	1.07	1.17	17.12	18.72	594340	16

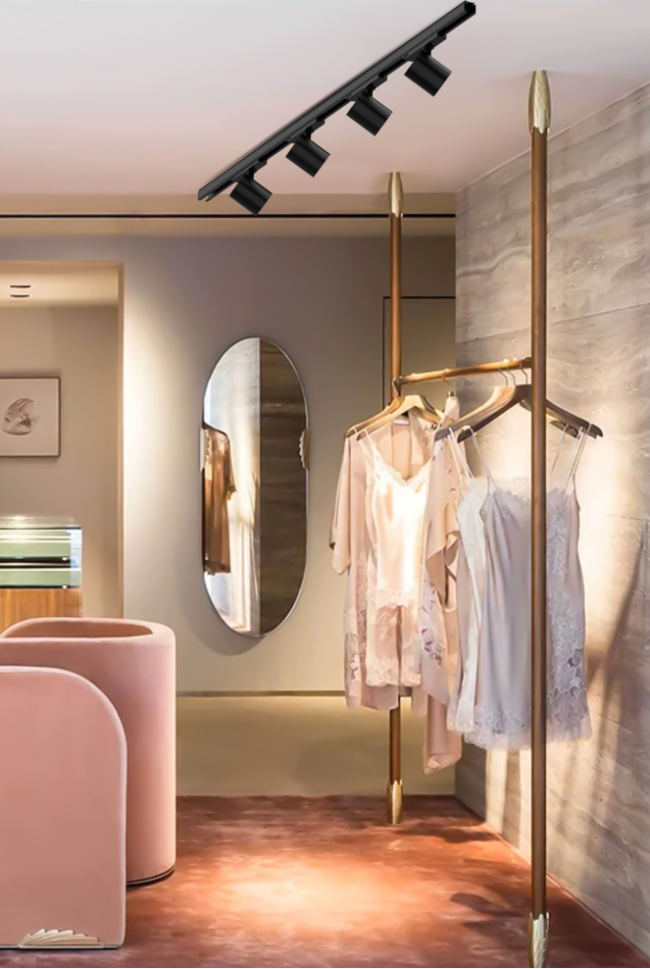

6. Application:

Applicable for residential lighting in bedroom, living room, corridor etc, also suitable for commercial lighting in office, hotel, restaurant etc.

7. Installation Procedure:

8. Dali Driver Installation:

9. Track installation:CEILING MOUNTED:

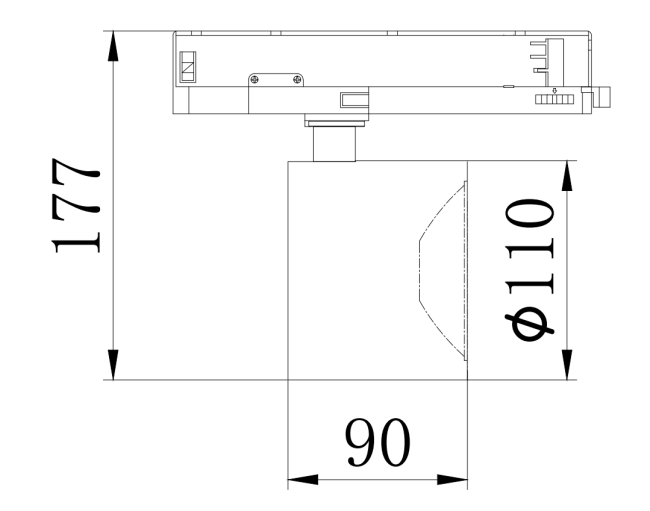

10. 40W Mechanical drawing D110*L90mm:

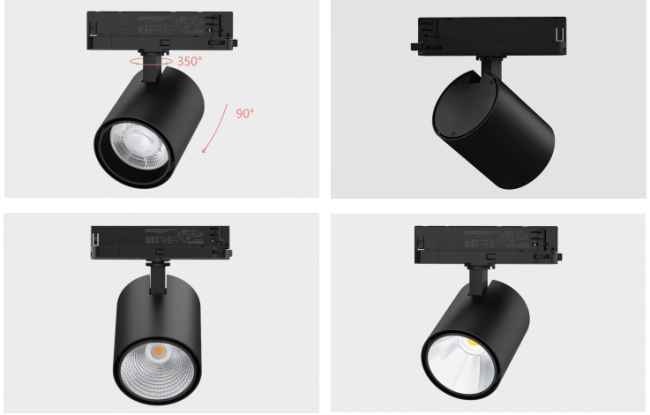

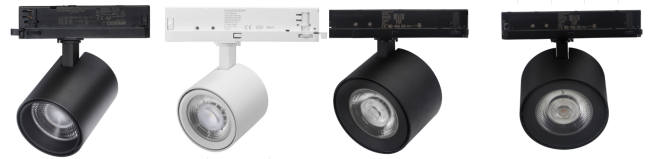

11. Picures of LED Track Lights:

12. Remarks

MOQ: 100pcs, if order quantity is less than MOQ, price will be 10% higher.

Deliery time: 7-15 Working days

Payment: Small order 100% paymentsi in advanced; over 10000 USD can pay 30% deposit, 70% before shipment

Packing: Only including white/brown box, brown carton, for customized color box/ label and laser marking, please contact us to negotiate the extra cost.
