Gray Auto Electrical Relays , 5 Pin Universal 12 Volt Relay For American Buick1078690 225289 90080-87009 MA156700-0930
EXPORT LOGO & DOMESTIC LOGO
Gray Auto Electrical Relays , 5 Pin Universal 12 Volt Relay For American Buick
Typical use:
Air conditioners, headlights, seat heating, electric tailgates, automatic control equipment, instrument vehicle control devices, etc.
Features:
Small coil size, light weight and low power consumption

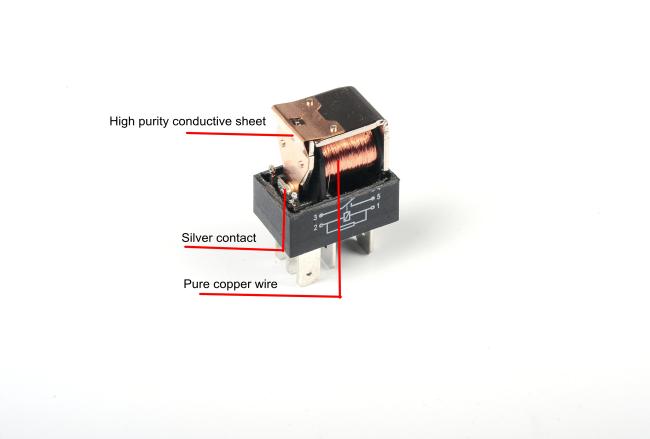

1.Breif IntrodutionHY583 is the most common relay for cars. Its reed is made of beryllium copper imported from Japan. It has a special structure and reasonable structure. It has better high temperature resistance and electrical conductivity than ordinary relays.
2.Parameter
| Contact Form | 1H(1A),1Z(1C) |
| Contact Resistance | 100mΩ(1A 6VDC) |
| Contact Material | Silver Alloy |
| Contact Load | 1H:40A 14VDC 1Z:30A/14VDC |
| Max switch Current | 40A |
| Max switch Power | 560w |
| Max switch Voltage | 60VDC |
| Mechanical Life | 1×107 times |
| Electrical Life | 5×104 times |
| Performance Parameter | |
| lsulation Resistance | 100mΩ ,500VDC |
| Operate Time | Max:15 ms |
| Release Time | Max:10 ms |
| Coil Temperature | Max:60°C |
| Temperature Ran | ﹣40°C~﹢85°C |
| Shock | Double shock:1.5mm 10~55Hz |
| Humidity | 35%~85%RH |
Application: Widely used for Buick , control the led, fans and air-conditioner.

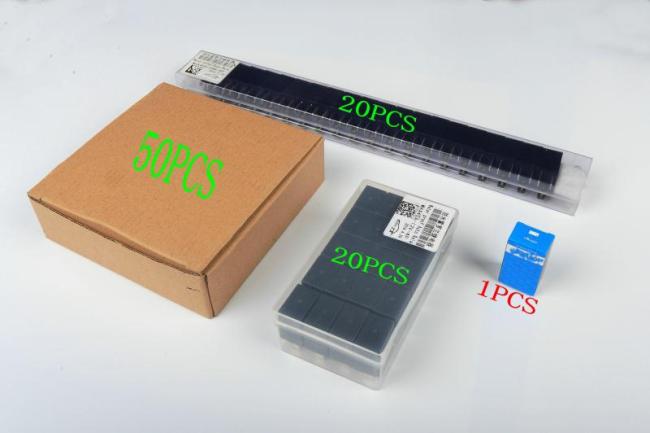

3. Package
Nowadays, package is important, we have various packing methods for your selection.
1)25pcs in a paper box, 100pcs in a master carton
2)1pcs in a paper box, 25pcs in a bigger paper box, 100pcs in a master carton
You can also customize your package, as long as the quantity is considerable.
4.Brand
The products can be our brand Mirote, or neutral, if you order large quantity, then we would print your brand on the product.
5.Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.
6.Sample Policy
To enhance more understanding of each other and our products,we’d like to provide the sample free to you for testing, you
7.Terms of payment
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
8.Terms of delivery
FOB, CFR, CIF,
9. Delivery time
Generally, it will take 20 to 45 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
Gray Auto Electrical Relays , 5 Pin Universal 12 Volt Relay For American Buick
Zhejiang Hui You Auto Parts Co., Ltd., founded in 2005, is an integrated company of industry and trade. We are specialized in the R&D of automotive electronic accessories such as auto relays, auto flashers, auto wiper relays etc. Our products are sold all over the world and get most positive feedback and won trust of our customers.

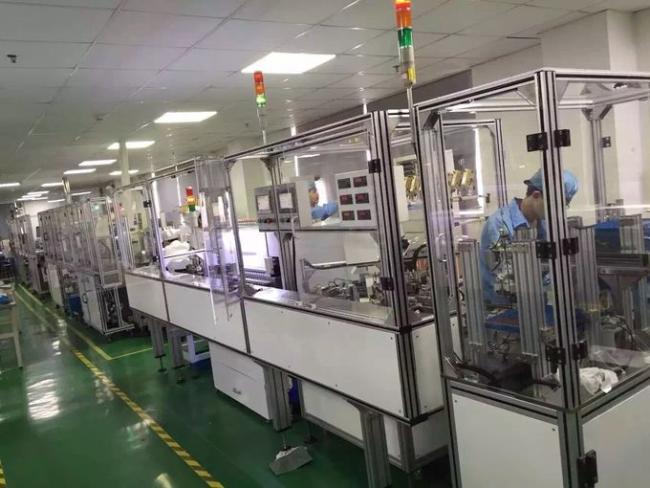

We adhere to the people-oriented management. As only by motivating the staff, can we realize the common development .We are constantly pursuing the superior quality of our products.Professional team, excellent automatic machine and testing equipment guarantee the excellent quality.
