Standard SPDT 5 Pin Changeover Relay 12V DC With Copper Wire 1H0-959-142 330-959-142
EXPORT LOGO & DOMESTIC LOGO

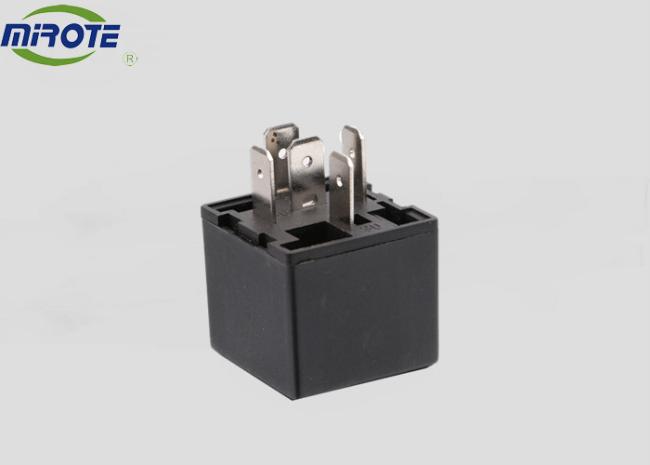

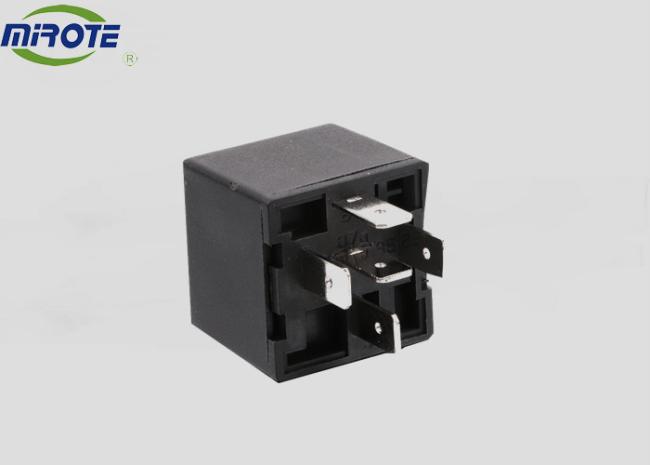

Standard SPDT 5 Pin Changeover Relay 12V DC With Copper Wire

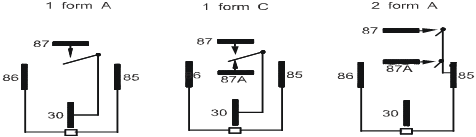

1.Circuit Diagram
Product Details
2.Parameter
| Contact Form | 1H(1A),1Z(1C) |
| Contact Resistance | 100mΩ(1A 6VDC) |
| Contact Material | Silver Alloy |
| Contact Load | 1H:40A 14VDC 1Z:30A/14VDC |
| Max switch Current | 40A |
| Max switch Power | 560w |
| Max switch Voltage | 60VDC |
| Mechanical Life | 1×107 times |
| Electrical Life | 5×104 times |
| Performance Parameter | |
| lsulation Resistance | 100mΩ ,500VDC |
| Operate Time | Max:15 ms |
| Release Time | Max:10 ms |
| Coil Temperature | Max:60°C |
| Temperature Ran | ﹣40°C~﹢85°C |
| Shock | Double shock:1.5mm 10~55Hz |
| Humidity | 35%~85%RH |
3. Feature
Slim type with 15A rated load.
Suitable plastic and metal to high temperature and various chemical solutions.
Highly adapt to harsh environment with shock and vibration.
Wash tight and flux proofed type available.
Comply with RoHS and REACH regulations.
4. Package
Nowadays, package is important, we have various packing methods for your selection.
You can also customize your package, as long as the quantity is considerable.
5.Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.10000times life time .
6. Delivery time and Shipping
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Zhejiang Hui You Auto Parts Co., Ltd., founded in 2005, is an integrated company of industry and trade. We are specialized in the R&D of automotive electronic accessories such as auto relays, auto flashers, auto wiper relays etc. Our products are sold all over the world and get most positive feedback and won trust of our customers.
We adhere to the people-oriented management. As only by motivating the staff, can we realize the common development .We are constantly pursuing the superior quality of our products.Professional team, excellent automatic machine and testing equipment guarantee the excellent quality.
