Waterproof 40 Amp 4 Pin Relay , 12v 24v 30 40 Amperage Automotive Power Relay 171937503A/7MO951253A
Waterproof 40 Amp 4 Pin Relay , 12v 24v 30 40 Amperage Automotive Power Relay
EXPORT LOGO & DOMESTIC LOGO
1. Product Detail
2. Brief Introduction
DC 12V 40A 4 pins relay. SPST type.Great for adding car stereo, starter kills,alarm system, remote start, fog lights, undercar lighting, turn on domelight, shared door handle,add ignition/accessory outputs,truck release, reverse polarity, door locks, honk the horn and more
3. Parameter
| Contact Form | 1H(1A),1Z(1C) |
| Contact Resistance | 100mΩ(1A 6VDC) |
| Contact Material | Silver Alloy |
| Contact Load | 1H:40A 14VDC 1Z:30A/14VDC |
| Max switch Current | 40A |
| Max switch Power | 560w |
| Max switch Voltage | 60VDC |
| Mechanical Life | 1×107 times |
| Electrical Life | 5×104 times |
| Performance Parameter | |
| lsulation Resistance | 100mΩ ,500VDC |
| Operate Time | Max:15 ms |
| Release Time | Max:10 ms |
| Coil Temperature | Max:60°C |
| Temperature Ran | ﹣40°C~﹢85°C |
| Shock | Double shock:1.5mm 10~55Hz |
| Humidity | 35%~85%RH |

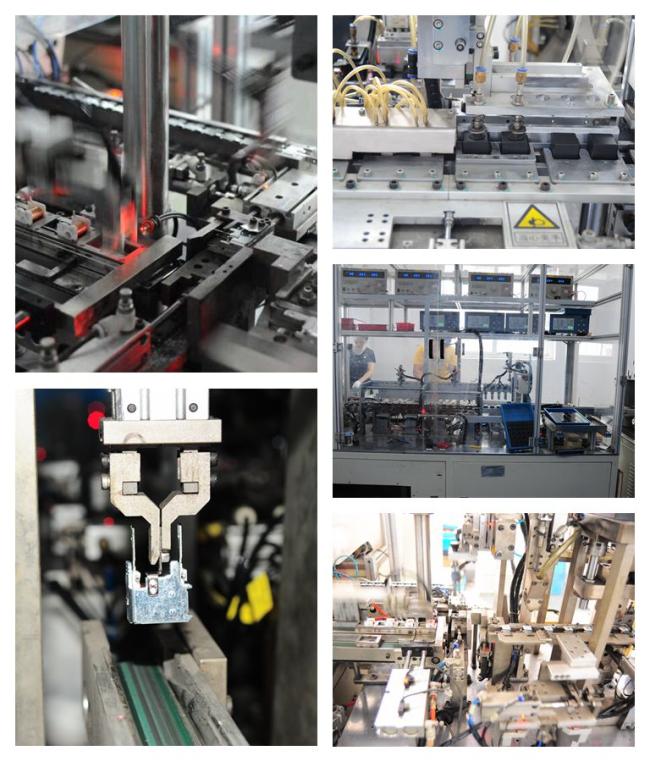

4. Excellent production equipment

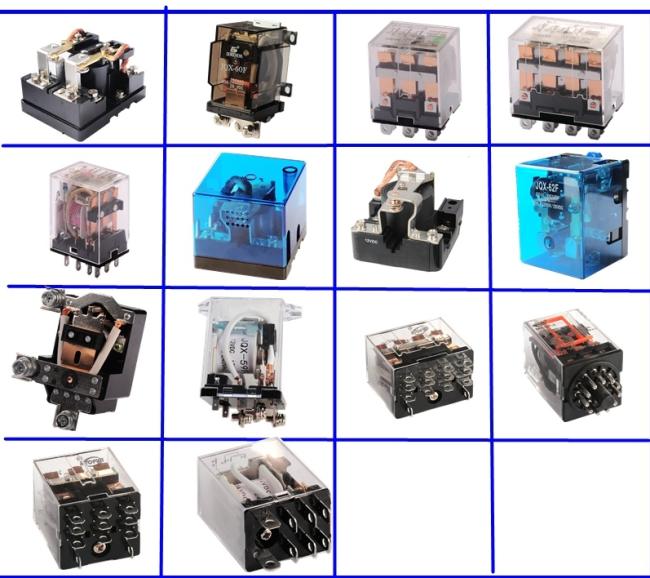

5. Other Items
6. Package
Nowadays, package is important, we have various packing methods for your selection.
You can also customize your package, as long as the quantity is considerable.
7. Delivery time and Shipping
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Shipping way : By air, we send to your forwarder warehouse.
By express, door to door deliverly.
By ship, send to your agent or forwarder warehouse.
