40A 250VAC 24VDC Coil JQX-58F Automotive Power Relay
1.JQX-58F 40A 250VAC 24VDC coil Power Relay
2. Specification
Technical Specification
| Insulation Resistance | >1000mΩ (500VDC) |
| Dielectric Strangth | Between Coil and Contacts > 2500VAC 1min |
| Between Open Contacts> 1200VAC 1min | |
| Operate/Release time | < 25ms/ 25ms |
| Terminal Type | Screw |
Contact Specification

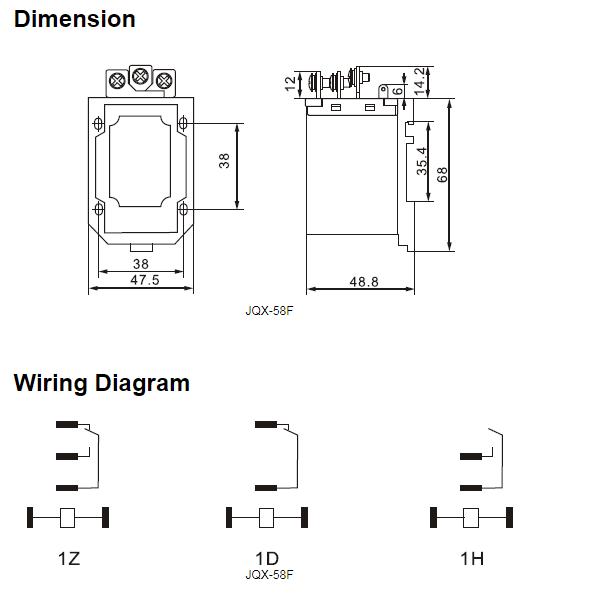

| Contact Form | 1Z, 1H, 1D |
| Contact Resistance | < 100mΩ (1A 6VDC) |
| Contact Material | AgCdO, AgSnO2 |
| Contact Capacity | 40A 250VAC/30VDC |
Coil Date
|
Nominal Voltage VDC |
Operate Voltage VDC |
Release Voltage VDC |
Coil Resistance Ω + 10% |
Nominal Voltage VAC |
Operate Voltage VAC |
Release Voltage VAC |
Coil Resistance Ω+10% |
| 6 | 4.80 | 0.60 | 18 | 6 | 4.80 | 1.80 | 14.4 |
| 12 | 9.60 | 1.20 | 72 | 12 | 9.60 | 3.60 | 57 |
| 24 | 19.20 | 2.40 | 288 | 24 | 19.20 | 7.20 | 250 |
| 48 | 38.40 | 4.80 | 1150 | 48 | 38.40 | 14.40 | 921 |
| 60 | 48.0 | 6.00 | 1800 | 110 | 88.00 | 36.00 | 5000 |
| 110 | 88.0 | 11.0 | 6050 | 220/240 | 176.00 | 72.00 | 19400/23070 |
3. Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.
4. Sample Policy
To enhance more understanding of each other and our products,we’d like to provide the sample free to you for testing.
5. Terms of payment
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
6. Delivery time
Generally, it will take 20 to 45 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
