JQX-15F (T90) Electronmagnetic PCB Automotive Power Relay DC 12V
1.JQX-15F (T90) Electronmagnetic PCB Power Relay DC 12V
2.Parameter
DC Coil Specification
| Rated Voltage | Coil Resistance | Pick-up Voltage | Drop-out Voltage | Coil Resistance |
| VDC | Ω+ 10% | VDC | VDC | Ω+ 10% |
| 5 | 27 | 3.75 | 0.5 | 185 |
| 6 | 40 | 4.5 | 0.6 | 150 |
| 9 | 97 | 6.75 | 0.9 | 92.8 |
| 12 | 155 | 9 | 1.2 | 77.4 |
| 15 | 256 | 11.25 | 1.5 | 58.6 |
| 18 | 380 | 13.5 | 1.8 | 47.3 |
| 24 | 660 | 18 | 2.4 | 36.7 |
| 48 | 2560 | 36 | 4.8 | 18.75 |
| 110 | 13450 | 82.5 | 11 | 10.6 |
Contact Ratings

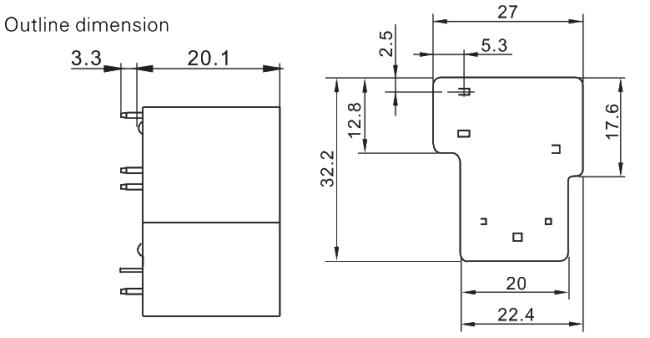

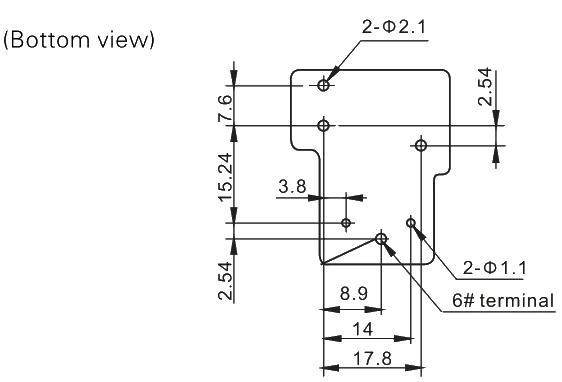

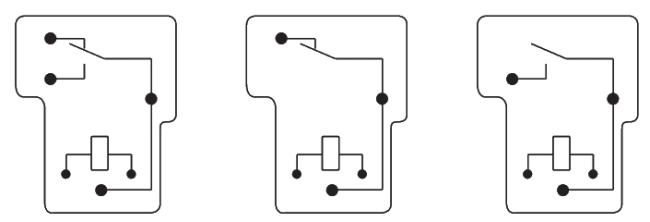

| Contact Arrangement | 1Form 1 (SPST-NO) | 1 Form C(SPDT) |
| Max. Switching Power | 7200VA/ 840W | 4800VA/560W |
| Max. Switching Voltage | 240VAC/28VDC | 240VAC/28VDC |
| Max. Switching Current | 30A | 20A |
| Contact Resistance | 50m Ω | 50m Ω |
| Initial Contact Resistance | 100m Ω | 100m Ω |
| Rating Load | 30A/240VAC 28VDC | 20A/240VAC 28VDC |
| Contact Material | Ag-CdO | |
Environmental Condition
| Temperature Range | -55~+85℃ |
| Relative Humidity | Up to 98% at + 40℃ |
| Atmospheric Pressure | 86~ 106Kpa |
| Vibration | 10~55Hz Dual Amplitude 1.65mm |
| Shock | 98 m/s2 |
| Operating Position | Optional |
| Electrical Life | > 105Operations | |
| Mechanical Life | >107 Operations | |
| Coil Dissipation | 0.9W | |
| Operate Time | 15ms | |
| Release Time | 10ms | |
|
|
Between Contact | 1500VAC. 50/60Hz 1min |
| Between Contact and Coild | 2500VAC. 50/60Hz 1min | |
| Environmental Humidity | 35% ~ 85% RH | |
| Installation Type | PCB | |
3. Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.
4. Sample Policy
To enhance more understanding of each other and our products,we’d like to provide the sample free to you for testing.
5. Terms of payment
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
6. Delivery time
Generally, it will take 20 to 45 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
