Indoor COB LED Display P1.25 320×160mm Module Die-casting Aluminium Cabinet 640×480 Panel Size
Parameters
| Pixel Pitch | P1.25 | P1.53mm | P1.86mm |
| Pixel Density | 640,000 px/㎡ | 422,753 px/㎡ | 288,906 px/㎡ |
| LED Chip | Flip Chip | ||
| Module Size (W*H) | 320*160mm | ||
| Module Resolution | 256*128 dots | 208*104 dots | 172*86 dots |
| Surface Treatment | Matt COB | ||
| Surface Hardness | 4H | ||
| Panel Size (W*H*D) | 640mm*480mm*59mm | ||
| Panel Weight | 7.5 kg / panel | ||
| Panel Resolution (dots) |
512*384 | 416*312 | 344*258 |
| Material | Die-casting Aluminium | ||
| Circuit Design | Common Anode Circuit | ||

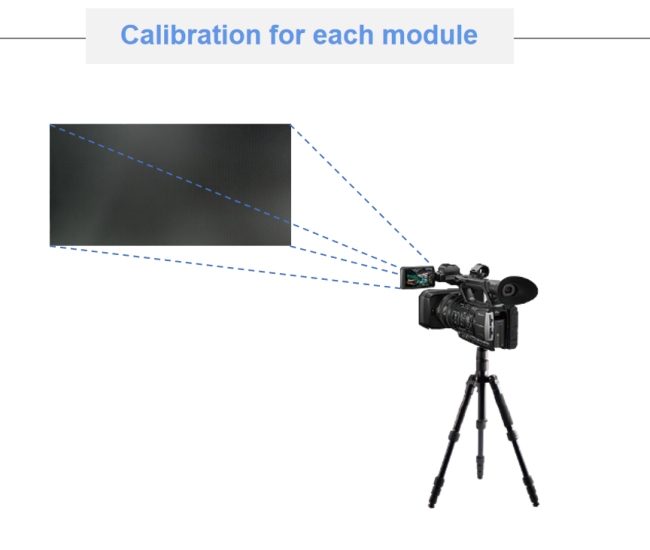

| Flash Correction Storage | Applicable | ||
| Brightness | Standard 600nits | ||
| Refresh Rate | 3840Hz | ||
| Contrast Ratio | 10000:1 (Condition without lighting) | ||
| Color Temperature | 9300K (Standard) | ||
| Viewing Angle | H160°, V160° | ||
| Input Voltage | AC 100~240V 50/60Hz | ||
| Max. Power Consumption (White Balance 600nits) |
135 w/panel | 88 w/panel | 88 w/panel |
| Maintenance Way | Front Service | ||
| IP level of PCB serface | IP54 (Washable by clean water) | ||
| Lifetime at 50% Brightness | 100,000 hours | ||
| Operating Temperature / Humidity | -10°C-+40°C/10%RH-90%RH | ||
| Stroage Temperature / Humidity | -20°C-+60°C/10%RH-90%RH | ||
| Certificate | CCC, EMC CLASS-A, ROHS, CQC | ||

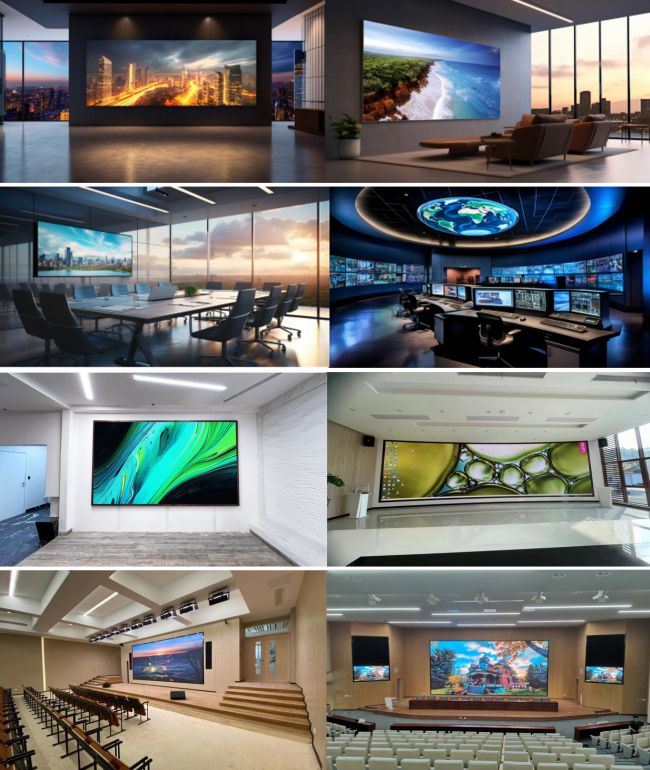

| Application | Indoor | ||
Key Features of Indoor COB P1.25 320×160mm Module
1. Pixel pitch: 1.25/1.53/1.86
2. Module size: 320×160mm
3. Panel size: 640×480mm
4. Panel weight: 7.5kg
5. Surface Treatment:COB
6. Surface Hardness:4H
7. Application:Indoor
8. IP:54
9. Refresh Rate:3840Hz
10. Brightness: 600nit
11. Certificate: CCC, EMC CLASS-A, ROHS, CQC
1. The work of Flip chip screen is more stable due to wireless welding, and have high contrast ratio 10000:1.
2. No color difference caused by different chip batches.
3. Multiple choices for cabinet. Follow the assembly holes of the traditional 320*160mm SMD module.

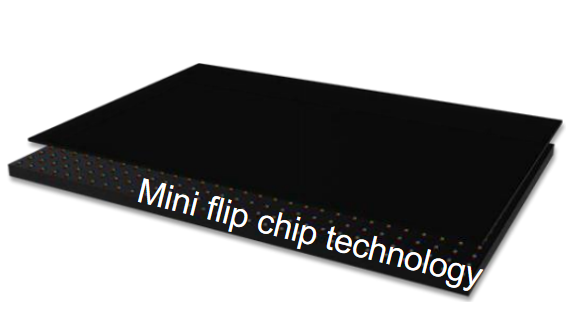

4. COB Channel LED modules replace traditional small-pitch LED modules. Mini filp chip technology, anti-collision, HDR picture quality.
5. Easy cleaning by water, anti-collision.
6. Choose power supply and receiving card as you need, backup options.
