P4.4 Outdoor S Series SMD1921 LED Advertising Display Front and Rear Maintenance 480×320 Module
P4.4 Outdoor S Series SMD1921 LED Advertising Display Front and Rear Maintenance 480×320 Module
1. Outdoor S Series Specifications
| Mode | S4.4mm |
| LEDs | 1R1G1B |
| LED type | SMD1921 |
| Pixel pitch | 4.4mm |
| Cabinet size | W960×H960mm |
| Cabinet resolution | 218×218 dots |
| Resolution | 51,529dots/㎡ |
| Brightness | 6000nit |
| Weight | 28KG/㎡ |
| Max consumption | 500W/㎡ |
| Adv consumption | 260W/㎡ |
| Viewing angle | H120°/V120° |
| Protection level | IP68 |
| Thickness | 95mm |
|
Heat dissipation |
Convective heat dissipation |
| Wind dissipaion | Level 12 |
| Power supply | Power supply with PFC |
| Installation | Fast install |
| Fire safety | 10S/unit |
| Fire resistance | Full VO grade |
| Service | Front,Back |
| Control mode | steady state |
| Color temperature | 3200-9300K |
| Refresh rate | 3840Hz |
| Working temperature | -40℃ to 70℃ |
| Storage temperature | -55℃ to 120℃ |
| Life time | ≥100,000 hours |
| Input voltage | AC110-220V |
| Grey grade | 16bit |
| Seismic capability | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes |
2. Outdoor S Series P4.4 Product Details

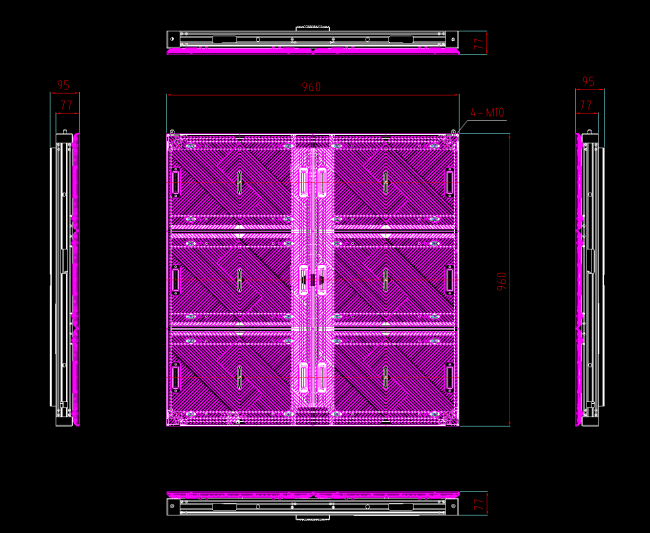

1. The cabinet is only 77 mm at its thinnest point and 95 mm at its thickest.
2. Brightness can reach up to 6,000 nits.
3. Module size is 480x320 mm, allowing flexible combinations for custom sizes; standard cabinet size is 960x960 mm.
4. The cabinet is made of die-cast aluminum, making it lightweight and slim, with the 960x960 mm cabinet weighing 27.5 kg.
5. Fire rating: 5VB.
6. IP rating: 68.
3. Features of S series P10
①High-brightness Nationstar SMD1921 LEDs deliver up to 6,000 nits, ensuring optimal visibility even in direct sunlight.
② Outdoor small pitch 4.4mm meets high-definition display requirements.

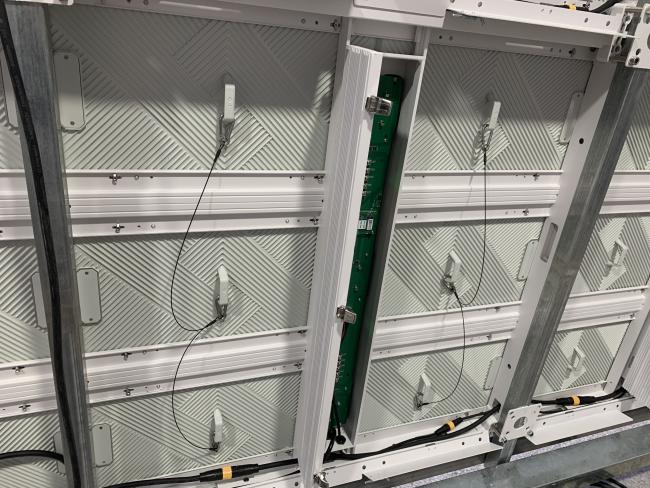

③ Dual Service with Frontal and Real Maintenance
Dual service mode of front and rear design to save you Maintenance Cost. The LED panel can be assemble and disassemble easily and quickly.
