P1.25mm COB Indoor LED Video Wall with Micron-Level Distance and Advanced Control Technology in Die-cast Aluminum
Price:
Negotiable
MOQ:
10sqm
Delivery Time:
25 days
Brand:
TBCLED
Product Description

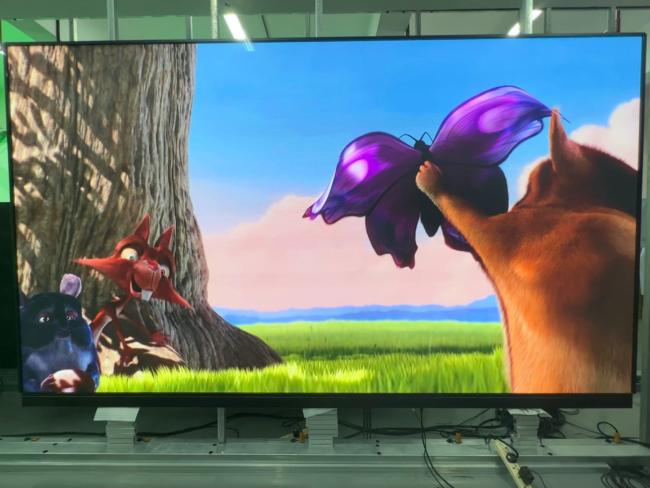

P1.25mm COB Indoor LED Video Wall
Micron-Level Distance Between LED Beads with COB Small-Pitch LED and Advanced Control Technology
The COB Indoor LED Video Wall adopts COB packaging technology, which mounts LED beads directly on the PCB board. This innovative approach enhances brightness and reliability while simplifying production and reducing costs. With micron-level spacing between LED beads, this small-pitch LED display delivers exceptional resolution and clarity. Advanced control technology ensures precise brightness control and accurate color reproduction for superior display quality.
Specifications
| Pixel Pitch | 0.78mm | 0.93mm | 1.25mm | 1.56mm | 1.87mm |
|---|---|---|---|---|---|
| Module | 150*168.75mm | ||||
| Resolution (dot) | 192*216 | 160*180 | 120*135 | 96*108 | 80*90 |
| Surface Treatment | Matt COB | ||||

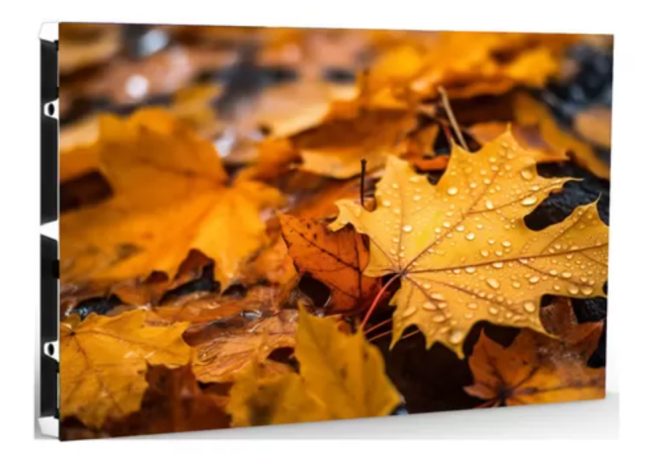

| Panel Size | 600*675*39.5mm / 600*337.5*39.5mm | ||||
| Panel Weight | 7.9kg (600*675mm) / 4kg (600*337.5mm) | ||||
| Panel Resolution (dot) | 768*864/768*432 | 640*720/640*360 | 480*540/480*270 | 384*432/384*216 | 320*360/320*180 |
| Pixel Density(dot/㎡) | 1,638,400 | 1,137,777 | 640,000 | 409,600 | 284,444 |
| Circuit Design | Common cathode circuit | ||||
| Flash Correction Storage | Applicable | ||||
| Brightness of White Balance | Standard 600nits | ||||
| Refresh Rate | 1920~3840Hz | ||||
| Contrast Ratio | 10000:1 (Condition without lighting) | ||||
| Color Temperature | 9300K(Standard) | ||||
| Viewing Angle | 160° | ||||
| Input Voltage | AC 100~240V 50/60Hz | ||||
| Max. Power Consumption (White Balance 600nit) | 170W/Panel (600*675mm); 85W/Panel (600*337mm) | 150W/Panel (600*675mm); 75W/Panel (600*337mm) | 140W/Panel (600*675mm); 70W/Panel (600*337mm) | 140W/Panel (600*675mm); 70W/Panel (600*337mm) | 130W/Panel (600*675mm); 65W/Panel (600*337mm) |
| Maintenance Way | Front Service | ||||
| IP level of PCB surface | IP54 (Washable by clean water) | ||||
| Operating Temperature | -10°C-+40°C/10%RH-90%RH | ||||
| Storage Temperature | -20°C-+60°C/10%RH-90%RH | ||||
| Certificate | 3C, CE, CB, ETL, FCC, ROHS, CQC | ||||
Key Features
Better Display: COB technology mounts LED chips directly on the circuit board, improving brightness, color saturation, and heat dissipation for long-term stability. ![COB technology diagram]()
Better Durability: Compact structure provides impact resistance and environmental adaptability for various complex applications. ![Durable COB LED structure]()
Maintenance Advantage: Modular design simplifies installation and maintenance, reducing operating costs and downtime.
Advantages
- Super thin and light: Reduces weight to 1/3 of traditional products, lowering structural and transportation costs
- Anti-collision and anti-pressure: Epoxy resin encapsulation creates a smooth, hard surface resistant to impact
- Strong heat dissipation: PCB copper layer quickly dissipates heat, minimizing light attenuation
- Wear-resistant and easy to clean: Smooth surface allows for easy maintenance and point-by-point repair
- All-weather performance: Triple protection treatment ensures waterproof, dustproof, and UV-resistant operation
Applications
Indoor Advertising: High brightness and contrast outperform traditional LCD screens, with modular design simplifying maintenance.
Conference Room/Lecture Hall: Delivers superior clarity and wide viewing angles compared to projectors for presentations.
Public Places: Ideal for shopping malls, transportation hubs, and exhibition halls with excellent long-distance visibility.
