500x500mm Rental LED Screen with 3840Hz Refresh Rate for One-Person Setup at Events
Price:
Negotiable
MOQ:
10sqm
Delivery Time:
15 working days
Brand:
TBC LED
Product Description

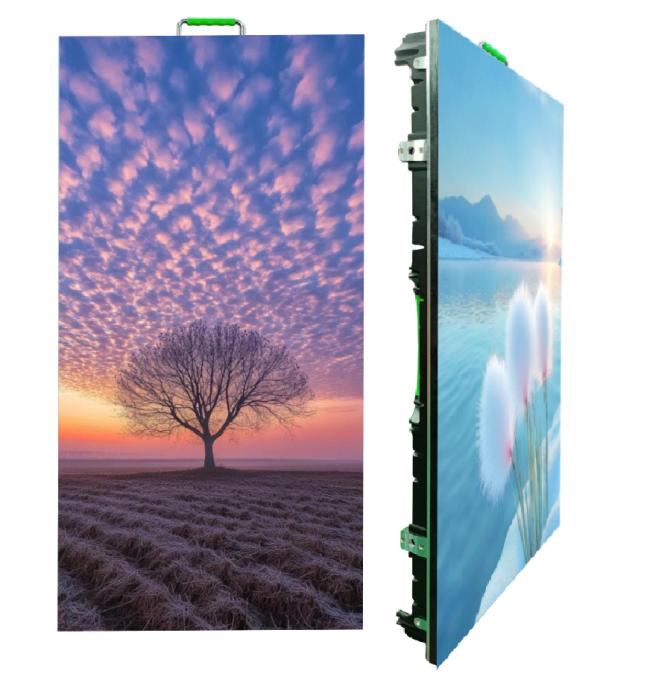

SnapFit 500x500 Rental LED Screen
Designed specifically for rental teams handling last-minute bookings, small venues, and events with limited staff, the SnapFit 500x500mm Rental LED Screen delivers professional visual solutions with unprecedented ease of use. Featuring a 3840Hz refresh rate, one-person setup capability, and intuitive design, this system enables rapid deployment of high-quality displays even under tight time and labor constraints.
Engineered for maximum user-friendliness, each panel weighs just 7.2kg and includes a built-in carrying handle for effortless transport. The slim 80mm profile allows easy navigation through narrow doorways and elevators, making it perfect for small venues such as cafes, boutique hotels, and office conference rooms. Advanced SMD LED technology delivers 6000nits brightness and 92% Rec.709 color gamut, while the 3840Hz refresh rate ensures completely flicker-free performance for presentations, photography, and video content.
Technical Specifications
| Specification | Giant 2.9mm | Giant 3.91mm | Giant 4.81mm |
|---|---|---|---|
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 86,016 pixels/m² | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions (W x H) | 250 x 500mm | 250 x 250mm | 250 x 250mm |
| Panel Dimensions | 500 x 500 x 80mm 500 x 1000 x 80mm |
500 x 500 x 80mm 500 x 1000 x 80mm |
500 x 500 x 80mm 500 x 1000 x 80mm |
| Modules Per Cabinet (W x H) | 1 x 2 | 1 x 2 | 1 x 2 |
| Module Resolution | 168 x 84 | 128 x 64 | 104 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000:1 | 5,000:1 | 5,000:1 |
| Average Power Consumption | 200 W/m² | 200 W/panel | 200 W/panel |
| Max Power Consumption | 650 W/m² | 650 W/panel | 650 W/panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840Hz | >3,840Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP68 | IP68 | IP68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan |
Innovative Features
- One-Person Snap Setup: Integrated magnetic-latch system allows panels to connect instantly—align, snap, and lock in place within 30 seconds per panel, requiring no tools or additional hardware.
- All-in-One Power Hub: Compact power hub efficiently powers up to 10 panels, significantly reducing cable clutter and setup time with a single power cord instead of multiple connections.
- Pre-Assembled Curvature Panels: Optional pre-curved corner panels (90°) enable rapid creation of L-shaped displays in minutes without manual bending or complex calibration.
- Wireless Content Sync: Load content via WiFi or Bluetooth connectivity, or use the built-in USB port—control playback directly from your mobile device without external controllers.
- Self-Diagnostic Lights: Integrated LED indicator lights on each panel provide instant visibility of power status, signal integrity, and pixel health—enabling immediate issue identification without technical diagnostics.
- Portable Stand Included: Each panel includes a lightweight, foldable stand for floor placement—simply unfold, attach the panel, and begin operation with no assembly required.
Ideal Applications
Perfect for last-minute events, small venues, office meetings, pop-up shops, weddings, and any scenario where rapid deployment, single-person setup, and operational simplicity are critical success factors.
Benefits for Rental Professionals
Maximize operational efficiency by servicing more events per day with one-person setup capabilities, eliminating the need for additional staff. The intuitive design significantly reduces training time for new team members. Wireless content control and self-diagnostic features minimize on-site troubleshooting requirements. Compact dimensions and included stands expand venue compatibility to include small spaces and tight access areas, enabling your rental business to secure bookings that competitors cannot accommodate.
