XR Series P1.25 Soft LED Module – 320mm × 160mm Flexible Display with 7680Hz Refresh Rate for Artistic Installations
The XR Series P1.25mm Indoor Soft LED Display redefines what's possible in architectural and artistic visual design. This revolutionary soft LED module offers unmatched flexibility, durability, and image quality for the most demanding creative projects, overcoming limitations of traditional special-shaped LED screens.
Built for high-end indoor environments including planning halls, science museums, urban exhibition centers, art galleries, and cultural venues. Ideal for close-up viewing from 1 to 4 meters with exceptional clarity at P1.25 pixel pitch.

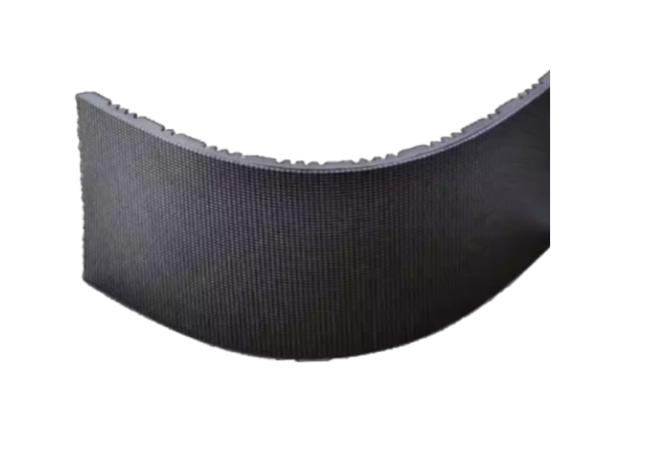

- Ultra-flexible construction with high-performance FPC substrate and reinforced locking connectors
- Premium rubber materials resist bending, twisting, and pressure for seamless installation
- Eliminates "stepped" or "mosaic" effects common in conventional curved setups
- Magnetic adsorption installation with precise alignment for flawless flatness
- Front-maintenance power box design for safe and easy servicing
- Ultra-slim 8mm thickness for discreet integration into any interior design
- Low-current, low-heat operation ensures long-term stability
| Parameter | Value |
|---|---|
| Pixel Pitch | 1.25mm |
| Pixel Density | 640,000 dots/m² |
| LED Type | SMD1010 |
| Module Size | 320 mm * 160 mm |
| Panel Size | 960 mm * 1120 mm |
| Panel Resolution | 768 * 896 dots |
| Panel Material | Cold steel |
| Screen Weight | 65 KG |
| Drive Method | 1/32 Scan |
| Gray Scale | 65,536 (16-bit) |
| Brightness | 600 nits |
| Refresh Rate | ≥7680 Hz |
| Viewing Angle | 140°H * 140°V |
| Contrast Ratio | 5000:1 |
| Input Voltage | AC110V/220V ±10% |
| Max Power Consumption | 500W |
| Average Power Consumption | 160W |
| Application | Indoor |
| Maintenance | Front Service |
| Life Span | 100,000 Hours |
Our exclusive segmented splicing technology reduces visible gaps to nearly imperceptible levels, while the cold-steel cabinet structure enhances durability while supporting complex shaping. The combination of high-quality SMD LEDs, 7680Hz refresh rate, and 16-bit grayscale ensures buttery-smooth video playback with zero ghosting or motion blur.
