P2.604 Indoor LED Poster Display with 800nit Brightness 33mm Ultra-thin Cabinet and Front Access Service
The P2.604 Indoor LED Poster Display delivers an optimal balance of high-definition visual impact and budget efficiency for professional digital signage. With 147,456 dots/sqm physical density and SMD1515 LEDs achieving 800nit brightness, this display ensures crisp, vibrant content that commands attention in retail stores, corporate lobbies, hotel receptions, airports, and exhibition venues. The precision die-cast aluminum cabinet at just 33mm thick combines sleek aesthetics with practical front-access maintenance, making it the go-to solution for scalable indoor digital signage deployments.
| Model | P2.604 |
|---|---|
| LED Type | SMD1515 |
| Physical Density | 147,456 dots/sqm |
| Screen Resolution | 384x768 / 288x768 dots |
| Module Dimension | 250x250 mm |
| Display Dimension | 1000x2000x33 / 750x2000x33 mm |
| Overall Dimensions | 1006x2181x33 / 756x2181x33 mm |
| Maintenance | Front Access Service |
| Cabinet Material | Die-Cast Aluminum |
| Brightness | 800 nit |
| Color Temperature | 5000-12000 K (Optional) |
| Viewing Angle | 160°/160° (V/H) |
| Brightness/Color Uniformity | ≥97% |
| Contrast Ratio | 10000:1 |
| Frame Frequency | 50/60 Hz |
| Scan Mode | 1/32 Scan |
| Gray Scale | 14/16 bit (Optional) |
| Refresh Rate | 3840 Hz |
| Max Power Consumption | 400 W/sqm |
| Average Power Consumption | 100-200 W/sqm |
| Power Voltage Range | AC90-264V, 47-63Hz |
| Protection Level | IP31 |
| Working Temperature/Humidity | -20~60°C / 10%-85% |
| Storage Temperature/Humidity | -20~60°C / 10%-85% |
| Certifications | CCC, CE, RoHS, FCC, CB, TUV, IEC, BIS |
| Warranty | 2 Years |
Eliminates scan lines and motion blur entirely. Broadcast-grade image fidelity with smooth gradients and true-to-life color reproduction, ensuring professional visual quality even under camera capture.
Centralized monitoring and content management across unlimited displays from a single mobile device or PC. Schedule power on/off, push updates in real time, and diagnose faults remotely--purpose-built for chain store networks.
Daisy-chain up to 8 posters for expansive video walls with resolutions reaching 2K. Mix 1006mm and 756mm cabinet widths for creative configurations. USB plug-and-play standalone mode requires zero PC setup.
Divide a single display into 2 or 3 independent content zones. Simultaneously play video in one zone while displaying product images and promotional text in others--maximizing content real estate on every screen.
| Option | Description |
|---|---|

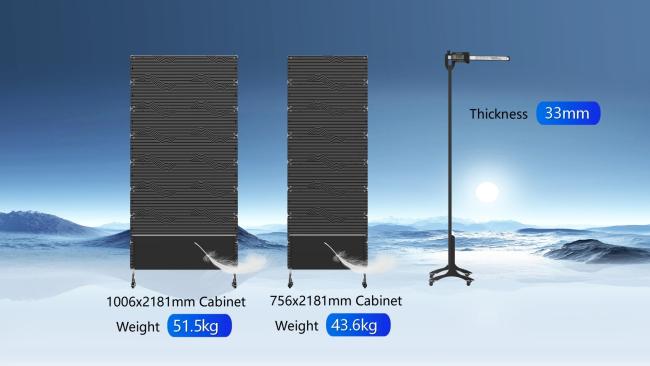

| Cabinet Size | 1006x2181x33mm (display 1000x2000mm) or 756x2181x33mm (display 750x2000mm) |
| Foldable Design | Hinged foldable frame for compact storage, easy transport, and dual-sided display capability |
| Non-Foldable Design | Rigid one-piece frame optimized for fixed-location permanent installations |
| GOB (Glue-On-Board) | Protective resin coating shields LEDs from moisture, dust, static discharge, and physical impact--recommended for high-traffic retail and public spaces |
| Non-GOB (Standard) | Bare SMD1515 LED surface for maximum brightness output in controlled indoor environments |
All configurations share the same premium die-cast aluminum chassis, 3840Hz refresh rate, front-access maintenance, and smart cluster management capability.
Integrated universal casters with locking mechanism. Tool-free positioning--roll into place and secure in seconds.
Daisy-chain up to 8 units via RJ45/data link. Build 2K video walls with synchronized playback across all screens.
Suspension mounting via reinforced top brackets for elevated visibility in atriums, concourses, and event spaces.
Shopping malls, supermarkets, boutique stores, cinema lobbies--capture foot traffic with dynamic promotional content at the point of decision.
Office lobbies, bank branches, hospital receptions, school campuses--deliver wayfinding, announcements, and brand messaging with a polished professional appearance.
Airports, train stations, bus terminals--broadcast real-time schedules, advertisements, and directional guidance to high-volume passenger flows.
Trade show booths, conference halls, wedding venues, concert arenas--create immersive visual backdrops and live information displays that captivate audiences.
