High Definition Indoor Led Video Wall 4k 4.81mm For Broadcasting / Concert

Price Negotiable

Price: Negotiable

MOQ: 10sqm

Delivery Time: 15days

Brand: TBC

Product Description

4K High Definition Indoor Led Video Wall P4.81mm with Front Service

Application:

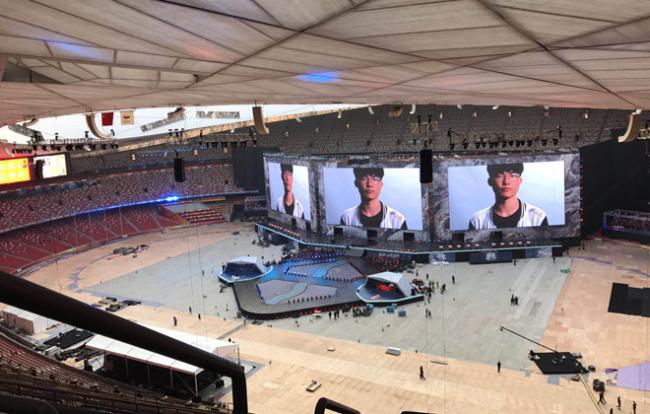

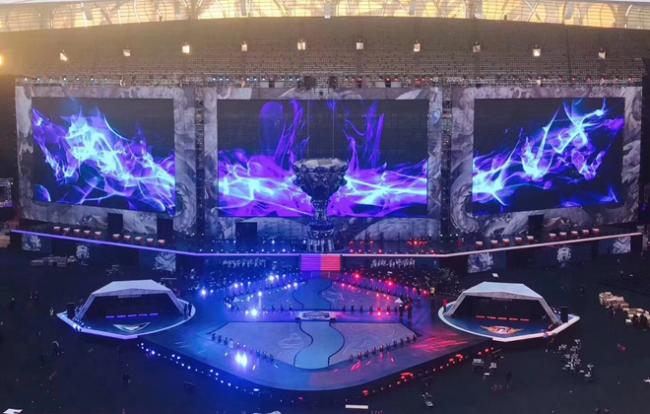

4K High Definition Indoor Led Video Wall P4.81mm are widely used for stage, events, live broadcasting etc, due to its amazing resolution and color performance

Features and Advantages:

Pop Lock & Play

Easy to install and assemble
Latch mechanism to fine adjust gaps
Curving bracket optional

No Sweat Service

Front or rear serviceable
Magnetic modular design
Ribbon-free connector

Safe And Reliable

With dual power supply
Redundant data
Made tough for mobile

Pictures

Parameters:

Brightness	nits	1000
Color temperature	deg.k	3200 ~ 9300
Viewing angle - Horizontal	deg.	160(+80/-80)
Viewing angle - Vertical	deg.	160(+80/-80)
Cabinet weight	kg	11
Cabinet width	mm	500
Cabinet height	mm	1000
Cabinet depth	mm	80
Cabinet area	sq. m.	0.50
Cabinet material		Aluminum
Aspect ratio		1:2
Ingress protection (Front/Rear)	IP	IP40/IP20
Operating temperature range	deg. C	0 to 40
Operating humidity range	HR	10％ to 90％
Pixel type and configuration	R/G/B	SMD 3in1
Pixel pitch	mm	4.808
Pixel matrix per cabinet		104x208
Pixels per cabinet		21321
Lines per meter		207
Pixels per sq. meter		43258
LEDs per sq. meter		43258
Recommended minimum viewing distance	m	5
Colours		281trillion
Gray scale	Levels	65536 levels per colour
Brightness control	Levels	100
Digital processing	bit	16
Frame rate	Hertz	60
Display refresh rate	Hertz	1920
Input voltage	VAC	110/240
Input power frequency	Hertz	50/60
Input power (max/avg)	Watts per sq.m	710/240
MTBF	Hours	≥10000
Lifetime (50%Brightness)	Hours	≥100000
Module brightness uniformity		＜5％
Blind spot rate		＜0.0001
Earth leakage current	mA	＜2
Red wavelength	nm	623
Green wavelength	nm	525
Blue wavelength	nm	470
Panel input format (with video processor)		VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection		CAT6 cable/Fiber
Operating system		Windows(XP/Vista/7/8/10)
Control distance		Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.
