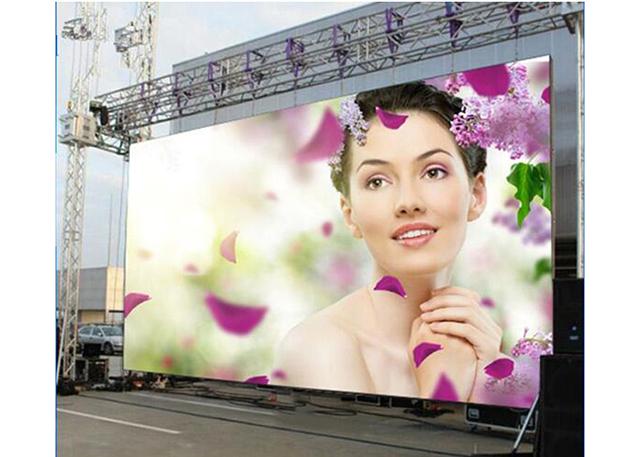

HD Outdoor Stage Rental LED Display Magnetic Front Service Stage Event Video Wall P3.91
P3.91 HD Outdoor Rental LED Display Magnetic Front Service Stage Event Video Wall
Quick Details:
1, Pixel Pitch: 3.91mm.
2, High resoltuion: 65536dots/m2.
3, SMD LEDs, Wide viewing angle: 160°/ 160°.
4, Magnetic front service panel.
Description:
TBC 3.91mm outdoor rental led displays are very hot-selling with its high definition, high color uniformity and clear image, brings you a vivid audio visual effect.
Features:
1, Super-light weight and Ultra-thin: each panel only 9kg, 80mm, can be lifted with one hand.
2, Magnetic front service module design, no screws on the modules, fast to assemble and disassemble.
3, High refresh rate 1920Hz, no strips for camera shooting, perfect event performance.
4, IP65 grade for high performance waterproof and dustproof capability.
Parameters:
| Parameter | Unit | Value | ||
| Brightness | nits | 4200 | ||
| Color temperature | deg.k | 3200 ~ 9300 | ||
| Viewing angle - Horizontal | deg. | 160(+80/-80) | ||
| Viewing angle - Vertical | deg. | 160(+80/-80) | ||
| Cabinet weight | kg | 9 | ||
| Cabinet width | mm | 500 | ||
| Cabinet height | mm | 500 | ||
| Cabinet depth | mm | 80 | ||
| Cabinet area | sq. m. | 0.25 | ||
| Cabinet material | Aluminum | |||
| Aspect ratio | 1:1 | |||
| Ingress protection (Front/Rear) | IP | IP65/IP43 | ||
| Operating temperature range | deg. C | - 20 to 50 | ||
| Operating humidity range | HR | 10％ to 90％ | ||
| Pixel type and configuration | R/G/B | SMD 3in1 | ||
| Pixel pitch | mm | 3.91 | ||
| Pixel matrix per cabinet | 128x128 | |||
| Pixels per cabinet | 16384 | |||
| Lines per meter | 256 | |||
| Pixels per sq. meter | 65536 | |||
| LEDs per sq. meter | 65536 | |||
| Recommended minimum viewing distance | m | 4 | ||
| Colours | 281trillion | |||
| Gray scale | Levels | 65536 levels per colour | ||
| Brightness control | Levels | 100 | ||
| Digital processing | bit | 16 | ||
| Frame rate | Hertz | 60 | ||
| Display refresh rate | Hertz | 1440 | ||
| Input voltage | VAC | 110/240 | ||
| Input power frequency | Hertz | 50/60 | ||
| Input power (max/avg) | Watts per sq.m | 800/280 | ||
| MTBF | Hours | ≥10000 | ||
| Lifetime (50%Brightness) | Hours | ≥100000 | ||
| Module brightness uniformity | ＜5％ | |||
| Blind spot rate | ＜0.0001 | |||
| Earth leakage current | mA | ＜2 | ||
| Red wavelength | nm | 623 | ||
| Green wavelength | nm | 525 | ||
| Blue wavelength | nm | 470 | ||
| Panel input format (with video processor) | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV | |||
| Data interconnection | CAT6 cable/Fiber | |||
| Operating system | Windows(XP/Vista/7/8/10) | |||
| Control distance | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. | |||
