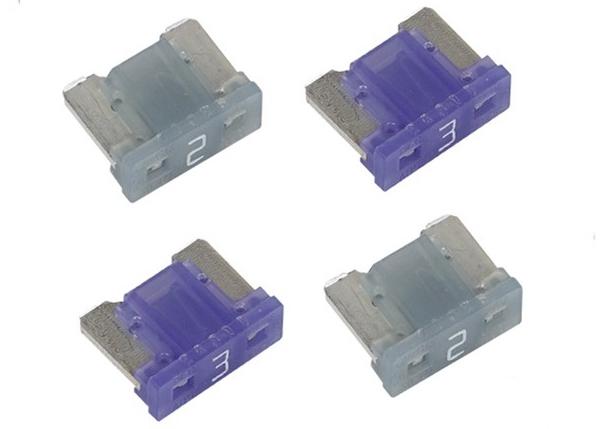

Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive
Low Back Profile Micro Auto Car Mini Blade Fuse 30A 58V Green For Infiniti Subaru Acura Mazda Automotive
Quick Specifications
Automotive fuses that are most used by the automotive manufacturers in the world
► Rated Voltage: DC58V and less
► Breaking Capacity: 1000A
► Operation Temperature: -40℃ - 80℃
► Standard Packaging :20,000
► Standard: ISO8820-9

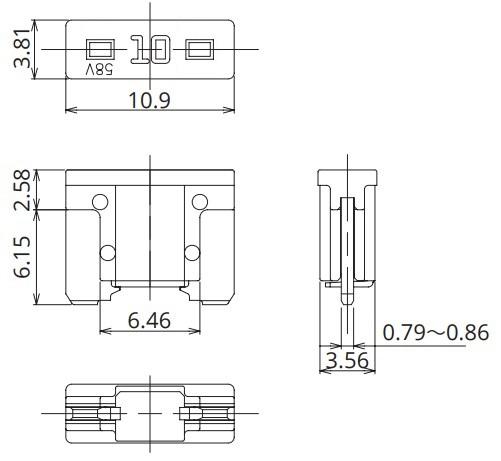

Dimension (mm)
Electrical Performances
| Ampere Rating(A) | Part Number | Housing Colors | Resistance Value | Voltage Drop |
| 2A | 1190 | Gray | 46.6 mΩ | 126 mV |
| 3A | 1191 | Violet | 33.7 mΩ | 137 mV |
| 4A | 1192 | Pink | 20.6 mΩ | 109 mV |
| 5A | 1193 | Tan | 16.5 mΩ | 115 mV |
| 7.5A | 1194 | Brown | 10.2 mΩ | 105 mV |
| 10A | 1195 | Red | 7.38 mΩ | 104 mV |
| 15A | 1196 | Blue | 4.55 mΩ | 97 mV |
| 20A | 1197 | Yellow | 3.25 mΩ | 94 mV |
| 25A | 1198 | White(natural) | 2.50 mΩ | 93 mV |
| 30A | 1199 | Green | 1.94 mΩ | 88 mV |
※The fuse characteristic may change depending on the conditions of use.
Time-Current Characteristics
| % of Ampere Rating(A) | Operating Time | |
| MIN | MAX | |
| 110% | 100 hrs. | - |
| 135% | 0.75 sec. | 600 sec. |
| 160% | 0.25 sec. | 50 sec. |
| 200% | 0.15 sec. | 5 sec. |
| 350% | 0.04 sec. | 0.5 sec. |
| 600% | 0.02 sec. | 0.1 sec. |
※The fuse characteristic may change depending on the conditions of use.

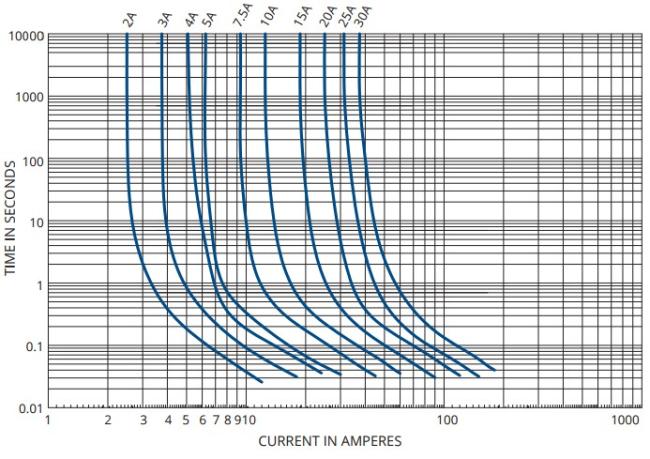

Time-Current Characteristics Chart

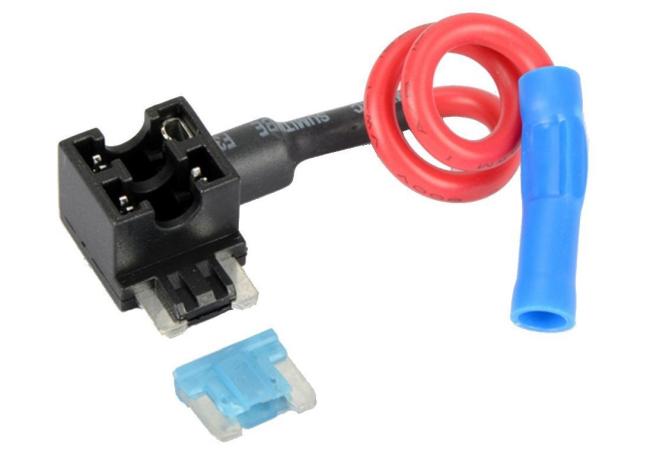

Suitable Blade Fuse Holder
Blade Fuse Series Introduction
|
BFSL Mini Blade Fuse : This state-of-the-art blade fuse was realized by reducing the width of the BFMN to offer space reduction |
BFSL-3 Auto Fuse : BFSL-3 is a multi terminal state-of-the-art blade fuse |
|
BFLP Automotive Fuse : BFLP is a lower-cost and more compact BFMN |
BFMN Car Fuse : BFMN is a lower-cost and more compact BFAT |
|
BFMN-S Auto Fuse :The BFMN-S is a blade fuse with excellent self-extinguising properties equivalent to UL standard V-0 |
BFAT-D Medium Blade Fuse The BFAT-D is blade fuse that had spread extensively in non-automotive application |
|
BFAT-S Car Blade Fuse : The BFAT-S is a BFAT with Ag plated terminals |
|
