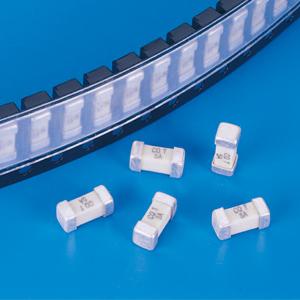

Silver Plated SET Type Slow Blow Square Ceramic SMD Surface Mount Fuse 3A 125V 2.6mmx6.1mm PSE CSA UL
Silver Plated SET Type Slow Blow Square Ceramic Surface Mount Fuse 3A 125V 2.6mmx6.1mm PSE CSA UL
Features
A hollow precise ceramic tube design
Small volume ,current rating from 62mA to 15A. Voltage rating 125Vac/dc.
Excellent inrush current withstanding capability
Excellent withstand capacity for thermal and mechanic shock
High reliability and stable solderability, 2 terminal caps can choice plating gold or silver.
Meet RoHS Requirement
Operating temperature range: -55C to +125C
Our SET,SEF series products, because the materials used in these fuses include
high melting temperature type solder and this solder contains more than 85%
lead (Pb), so these products can conform to the exempts of the requirements of
RoHS Directive (2002/95/EC)
Approval
PSE 1A~7A
UL Recognized 200mA~7A
CSA Listed 200mA~7A
Specification
| Product Type | Amp (A) | Vol. (V) | cold resistance | max voltage drop | I²T value | Breaking capacity | Weight(single product) |
| SET .200 | 200 mA | 125V | 1.5751 | 750 | 0.06 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET .250 | 250 mA | 125V | 1.2585 | 700 | 0.068 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET .300 | 300 mA | 125V | 1.2512 | 600 | 0.09 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET .350 | 350 mA | 125V | 0.9366 | 550 | 0.1 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET .375 | 375 mA | 125V | 0.5232 | 500 | 0.2109 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET .400 | 400 mA | 125V | 0.515 | 450 | 0.24 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET .450 | 450 mA | 125V | 0.5009 | 450 | 0.3037 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET .500 | 500 mA | 125V | 0.3291 | 400 | 0.375 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET .700 | 700 mA | 125V | 0.2648 | 360 | 0.49 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET .750 | 750 mA | 125V | 0.16 | 320 | 0.626 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET 001 | 1 A | 125V | 0.109 | 250 | 1.909 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET 002 | 2 A | 125V | 0.055 | 210 | 8.56 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET 003 | 3 A | 125V | 0.0228 | 190 | 22.54 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET 004 | 4 A | 125V | 0.014 | 160 | 35.82 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET 005 | 5 A | 125V | 0.013 | 150 | 54.8 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET 006 | 6 A | 125V | 0.009 | 140 | 64.8 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET 007 | 7 A | 125V | 0.0074 | 130 | 89.83 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET 1.50 | 1.5 A | 125V | 0.0511 | 230 | 3.835 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET 2.50 | 2.5 A | 125V | 0.0287 | 200 | 16.55 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET 003 | 3 A | 125V | 0.0228 | 190 | 22.540 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET 3.15 | 3.15 A | 125V | 0.0224 | 185 | 23.000 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
| SET 3.50 | 3.5 A | 125V | 0.019 | 180 | 29.4 | 50A at 125V AC/DC 300A at 32V DC | 0.12658 |
Electrical Characteristic
| Rated current | 1 ln | 2 ln | 3 ln | 8 ln | |||
| MIN | MIN | MAX | MIN | MAX | MIN | MAX | |
| 62mA~10A | 4 hr | 1 sec | 60 sec | 0.2 sec | 3 sec | 0.02 sec | 0.1 sec |
Environmental Temperature at 25°C
Interrupting Rating
50 amperes at 125V AC/DC
300 amperes at 32V DC
Material Dimension
Applications
- Video / telecom / Network
- Computer and Peripherals
- Digital products
- Power supply / Commercial
Physical Specification
Material
Body: Ceramic
Terminations: Silver Plated Brass Caps
Packaging
1,000 Fuses in 7 inches dia. reel, or 5,000
fuses in 13inches dia. reel,
12mm wide tape, per EIA Standard 481
Environmental Specification
| Operating Temperature | -55°C to +125°C |
| Thermal Shock | MIL-STD-202G, Method 107, Test Condition B (-65°C to +125°C) |
| Resistance to Solder Heat | MIL-STD-202G, Method 210, Test Condition B(10sec, at 260°C) |
| Insulation Resistance | MIL-STD-202G, Method 302, Test Condition A |
| Salt Spray | MIL-STD-202G, Method 101, Test Condition B (48Hrs) |
| Vibration | MIL-STD-202G, Method 201 (10-55 Hz,0.06 inch, total excursion) |
