0.22uH 400mA 0.4Ohm 25.2MHZ Wireless Charger Coil , Epoxy Coated Choke Axial Fixed Inductor Colour Code 2.8x4.8mm


Epoxy Coated Choke Axial Fixed Inductor Colour Code 2.8x4.8mm 0.22uH 400mA 0.4Ohm 25.2MHZ


Technical Specification


Image	Size∅A(max)×L(max)	Inductance	Rated current	Series
	∅2.8×4.8	0.22～330uH	25～400mA	CKL0204
	∅3.0×7.0	0.22～1500uH	40～740mA	CKL0307
	∅3.2×7.0
	∅4.0×10.5	0.27～6800uH	40～980mA	CKL0410
	∅4.5×12.7	1.0～10000uH	52～3300mA	CKL0412
	∅5.0×12.7
	∅5.0×11.0	4.7～30000uH	10～900mA	CKL0510
	∅5.0×12.0	22～10000uH	25～550mA	CKL0512
	∅5.0×14.0	1.0～10000uH	60～3800mA	CKL0514



Applications

For VCRs, color TVs, CRTs, stereo, car radios and radio transceivers, telephone answering.
Disk drivers, personal computers and industrial, electronal products, etc.


Features

1. Design to be compact, small and light-weight, wide range of inductance.
2.Contibute to be high Q and self-resonent frequencies, tapping type that is convenient for automatic insertion, coating epoxy resin that ensure the humidity resistance to be long life


Electrical Characteristics

 (1) Isat: DC current at which the inductance drops approximate 10% from its value without current;
(2) Irms: DC current that causes the temperature rise (△T ≤40°C ) from 25°C ambient.
(3) Rated Current: It is either the inductance is 10% lower than its initial value in DC saturation characteristics or temperature raise becomes △T=40℃(Ta=25℃), whichever is lower.
(4) Operating Temperature Ranges: -25～85℃. (5) Dielectric with standing voltage:250V AC r.m.s.


Test Equipments

(1) Inductance(L): HP 4284A/HM 9481/CD 1063/HP 4291A;
(2) Q: HP 4284A/HM 9481;
(3) DCR: CH 502A/CH 502BC;
(4) SRF: HM 9461;
(5) Rated Current/Isat./Irms.: HP 4284+HP 4284A/CD 1068+CD 1320. Test Condition: at 25℃,75%H.


● Color Coding



Appearance Dimensions




Appearance Dimensions of Forming

1.U-forming(Horizontal)



2.U-forming(Vertical)

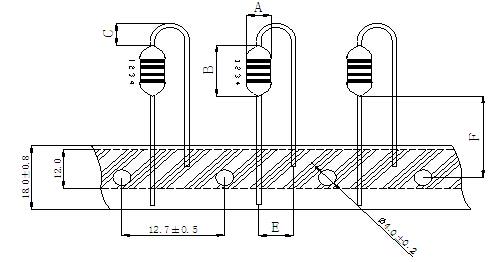

3.U-forming and Taping

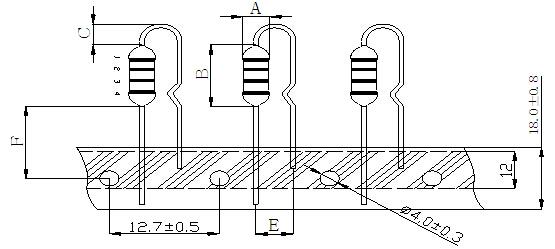

4.UK-forming and Taping



5.R-forming and Taping
