Multi Holes Post Tension Anchor Round Prestressed Strand Coupler Connector
Price:
Negotiable
MOQ:
1 pcs
Delivery Time:
30 days
Brand:
NC120
Product Description

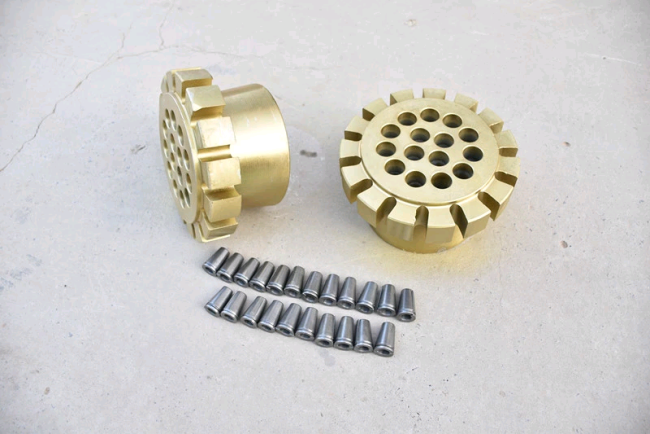

Multi Holes Post Tension Anchor Round Prestressed Strand Coupler Connector
Description
Strand Coupler
1. LQM strand coupler include LQM 15L and LQM 13L periphery hanging connectors. They are mainly suitable for the connection long of dia.0.5" and 0.6" PC strand bundles, and used in the post-tensioning continuous beam structure.
2. LQM strand coupler periphery hanging connectors consist of coupler, wedge, squeezing socket, anchor bearing plate, spiral reinforcements, restraining ring, protective sleeve, metal corrugated duct, and PC tendon etc..
3.This strand coupler performance is better and it is suitable for the connection of various tonnage PC strand bundle.
Product Details
| Type | Strand No. |
Anchor Fitting A×B×ΦC |
Corrugated Pipe Inner Dia |
ΦE×F Anchor Ring |
Spiral Bars | Anchor Fitting | Tensioning Jack Type | ||
| ΦG×ΦH×1 | Ribs | Holes Distance | Holes Dia. | ||||||
| YJM15-1 | 1 | 80×80×Φ12 | Φ45×45 | Φ70×Φ6×30 | 4 |
YDC260Q (YDC240Q) |
|||
| YJM15-2 | 2 | 130×85×Φ71.5 | Φ50 | Φ88×48 | Φ100×8Φ×40 | 4 | 88 | M12 | |
| YJM15-3 | 3 | 130×85×Φ71.5 | Φ50 | Φ88×50 | Φ100×8Φ×40 | 4 | 88 | M12 | YCW100B |
| YJM15-4 | 4 | 140×90×Φ80 | Φ55 | Φ102×50 | Φ130×10Φ×40 | 4 | 100 | M12 | YCW100B |
| YJM15-5 | 5 | 150×110×Φ89 | Φ55 | Φ108×50 | Φ140×10Φ×50 | 4 | 120 | M12 |
YCW100B (YCW150B) |
| YJM15-6 | 6 | 180×120×Φ102 | Φ70 | Φ126×50 | Φ170×Φ12×50 | 4 | 140 | M12 | YCW100B |
| YJM15-7 | 7 | 180×120×Φ102 | Φ70 | Φ126×50 | Φ170×Φ12×50 | 4 | 140 | M12 |
YCW150B (YCW250B) |
| YJM15-8 | 8 | 200×140×Φ118 | Φ80 | Φ136×50 | Φ180×Φ14×50 | 5 | 170 | M12 | YCW250B |
| YJM15-9 | 9 | 210×160×Φ118 | Φ80 | Φ147×50 | Φ200×Φ14×50 | 5 | 170 | M12 | YCW250B |
| YJM15-10 | 10 | 240×190×Φ136 | Φ90 | Φ158×50 | Φ230×Φ14×60 | 5 | 190 | M12 | YCW250B |
| YJM15-11 | 11 | 240×190×Φ136 | Φ90 | Φ158×50 | Φ230×Φ14×60 | 5 | 190 | M12 | YCW250B |
| YJM15-12 | 12 | 240×190×Φ136 | Φ90 | Φ166×50 | Φ230×Φ14×60 | 5 | 190 | M12 | YCW250B |
| YJM15-13 | 13 | 240×190×Φ136 | Φ90 | Φ166×56 | Φ230×Φ14×60 | 5 | 190 | M12 | YCW350B |
| YJM15-14 | 14 | 240×200×Φ148 | Φ90 | Φ177×60 | Φ230×Φ16×60 | 5 | 190 | M12 | YCW350B |
| YJM15-15 | 15 | 240×200×Φ153 | Φ90 | Φ178×60 | Φ230×Φ14×60 | 5 | 190 | M12 | YCW350B |
| YJM15-16 | 16 | 260×220×Φ159 | Φ90 | Φ195×60 | Φ230×Φ16×60 | 5 | 200 | M12 |
YCW350B (YCW400B) |
| YJM15-17 | 17 | 260×220×Φ159 | Φ90 | Φ195×65 | Φ230×Φ16×60 | 5 | 200 | M12 |
YCW350B (YCW400B) |
| YJM15-18 | 18 | 270×220×Φ176 | Φ100 | Φ205×65 | Φ230×Φ16×60 | 5 | 200 | M12 | YCW400B |
| YJM15-19 | 19 | 270×220×Φ176 | Φ100 | Φ205×65 | Φ250×Φ16×60 | 6 | 200 | M12 |
YCW400B (YCW500A) |
| YJM15-21/22 | 21/22 | 320×260×Φ210 | Φ120 | Φ235×72 | Φ280×Φ18×70 | 6 | 240 | M12 | YCW500A |
| YJM15-25/26/27 | 25/26/27 | 350×295×Φ222 | Φ130 | Φ256×100 | Φ300×Φ22×70 | 6 | 260 | M12 | YCW650A |
| YJM15-30/31 | 30/31 | 390×346×Φ222 | Φ130 | Φ275×100 | Φ420×Φ18×70 | 7 | 290 | M12 | YCW650A |
| YJM15-34/37 | 34/37 | 465×390×Φ246 | Φ140 | Φ305×120 | Φ450×Φ20×70 | 8 | 350 | M12 | YCW900A |
| YJM15-43/44 | 43/44 | 500×450×Φ286 | Φ160 | Φ336×130 | Φ500×Φ50×80 | 8 | 376 | M12 | YCW900A |
| YJM15-54/55 | 54/55 | 540×510×Φ295 | Φ160 | Φ345×160 | Φ230×Φ16×60 | 8 | 400 | M12 |
YCW1200A |
Package
We will use standard export package with wooden case. We can also packed as per customers' requirements.
Payment
We accept T/T, L/C, 40% as deposit and balance payment before delivery.
