Acti 9 C120 Miniature Circuit Breaker Schneider 125A MCB B C D Curves
Price:
consult best discount
MOQ:
5 PCS
Delivery Time:
2-3 days
Brand:
SCHNEIDER
Product Description

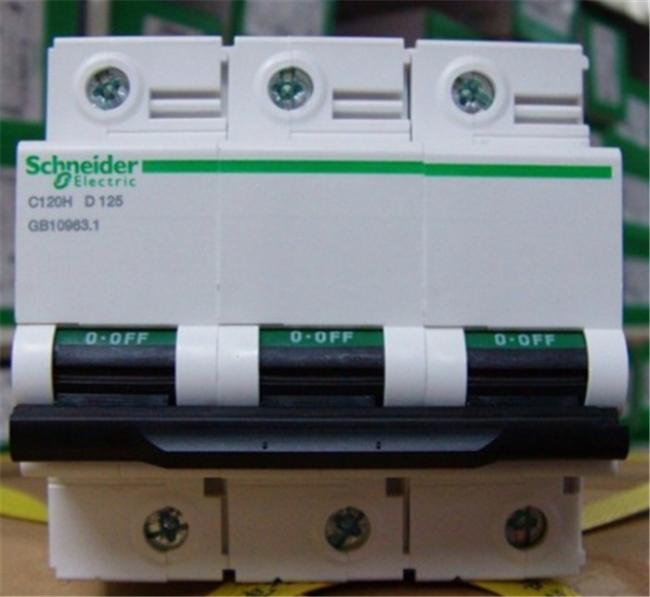

Schneider Acti 9 C120 Miniature Circuit Breaker 125A Mini circuit breaker MCB B C D Curves
Application
C120H is mainly used in AC50/60Hz single pole230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl
the product is suitable for industry,business,building,ressidence,etc.
It's conformity with GB10963,IEC60898 standards.
Features
- Nominal current: 10 to 125 A
- Large choice of breaking capacities and tripping curves: B, C, D…
- Compliance with standards: IEC EN 60898 or IEC 60947-2 depending on the version, certified by national official authorities
- Suitable for isolation in accordance with industrial standards: IEC 60947
- Operating voltage: up to 440Vac, insulation voltage: 500V

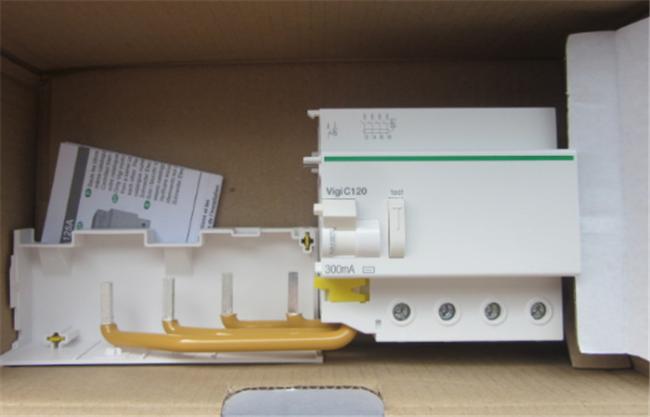

- Optional add-on earth leakage modules: C120 Vigi
- Optional auxiliaries: indication of state and tripping, shunt trip, undervoltage trip, overvoltage trip
TECHNICAL DATA of Acti 9 C120 Miniature Circuit Breaker
| Standard | IEC60898,EN898,GB10963 | |
| Number of poles | 1P,2P,3P,4P | |
| Rated current(In) | 32,63,80,100,125A | |
| Rated voltage(Un) | AC240/415V | |
| Rated frequency | 50/60Hz | |
| Tripping curve | B,C,D | |
| Release action characteristics | Time delay | 1.13In>2h Non-trip |
| 1.45In<2h trip | ||
| 2.55In 1s~60S trip | ||
| Instantaneous(Curve C) | 5In >0.1s Non-trip | |
| 10In<0.1s trip | ||
| Magnetic releases operate | B curve:between 3 and 5In | |
| C curve :between 5 and 10In | ||
| D curve: between 10 and 15In | ||
| Ratedbreaking capacit(Lcn) | 3000A | |
| Endurance | >2500 | |
| Circumstance temperature | -5~+40 | |
| Electrical life | >6000times | |
| Mechanical life | 20000 times | |
| Tropical ration | Treatmen 2(RH95%,at 55°C) | |
| Protection degree | IP20 |
