Oil Free Dry Scroll Vacuum Pump 16m3/h,IDSP16 Painting Surface Air Cooled
16 m³/h Dry Scroll Vacuum Pump IDSP16, Sky Blue, Air cooling, Oil-Free
Description
The Scroll pump is a new kind of oil-free mechanical pump with the features of compact construction, hermetically sealing, high vacuum, etc. Improved performance, exceptional pumping capability, and quiet operation make IDSP the ultimate dry choice. As a high-technology product, it has highly technical requirements in design and manufacture. With the benefits of low consumption, long working life, high reliability, and low noise, it has the incomparable advantage in the application of clean processes and has been popular used in the market. In order to meet the featured applications of domestic and overseas customers, Baosi Vacuum developed the IDSP series dry scroll pump with excellent performance and high-cost efficiency.
Technical Data
| Model | IDSP16 | |
| Nominal rotational speed | rpm | 1800 |
| Displacement | m³h-1 | 16 |
| Motor power | W |
400 |
| Ultimate Vacuum | mbar | 0.008 |
| Voltage input | V | 1-ph, 100-120/200-240 |
| Noise level | dB (A) | 54 |
| Inlet flange | - | KF25 |
| Exhaust flange | - | KF25 |
| Max water vapour pumping rate | gh-1 | 268 |
| Leak tightness | mbar ls-1 | ＜1×10-6 |
| Weight | kg | 29 |
| Cooling Method | - | Air-cooled |

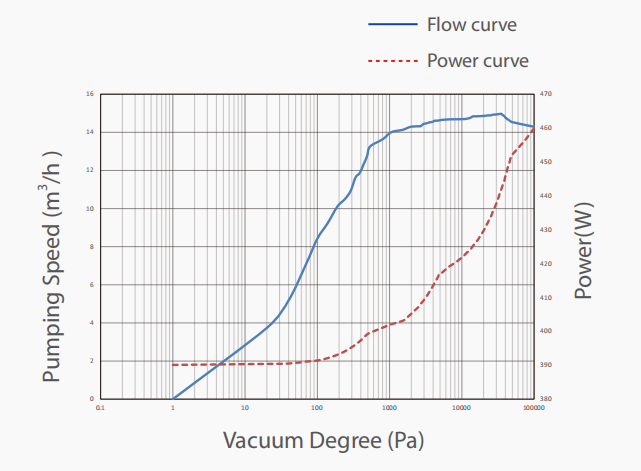

Performance Curve

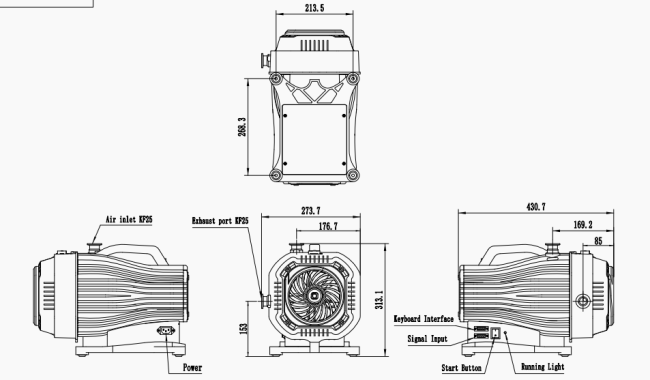

Dimensions
Application
- Electron microscopy
- High energy physics
- Mass spectrometry
- Glove box
- Beam welding/laser welding
- Space simulation
- Coating(PVD/CVD)
