90 m³/h Two-stage Oil Sealed Rotary Vane Vacuum Pump DRV90 RAL 7047
DRV90 90m3/h Two-Stage Oil Sealed Rotary Vane Vacuum Pump
When the ambient temperature range is under 40℃, the air inlet pressure is less than 1300Pa, which allows long-term continuous operation. However, when pumped gas relative humidity is above 90%, it should open the gas ballast valve.
Features&Benefits
*Using a non-spring rotary vane to achieve low noise, low vibration, and long service life.
*A Built-in oil check valve is used to avoid the oil return phenomenon.
*A Built-in forced-fed oil pump is used to ensure the long-term continuous operation of the pump at atmospheric pressure.
*The use of air cooling, oil cooling, water cooling, and other cooling methods to ensure a good cooling effect, and make the long-term stable running of the pump and the stable pumping performance.
*Reasonable structure has the advantages of easy assembly and disassembly as well as fast and easy maintenance.
Technical Data
| Units | DRV90 | ||
| Pumping Rate | 50 Hz | m³h-1 / Lmin-1 | 90/1500 |
| 60 Hz | 108/1800 | ||
| Ultimate Vacuum | Gas ballast off | Pa/ mbar | 0.5/5×10-3 |
| Gas ballast on | 4/4×10-2 | ||
| Inlet | KF40 | ||
| Outlet | KF40 | ||
| Oil Capacity | liter | 5.5 | |
| Noise Level | dB(A) | ≤65 | |

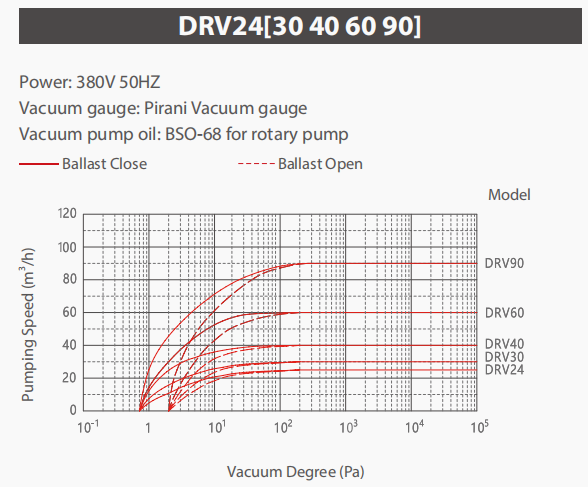

Performance Curve

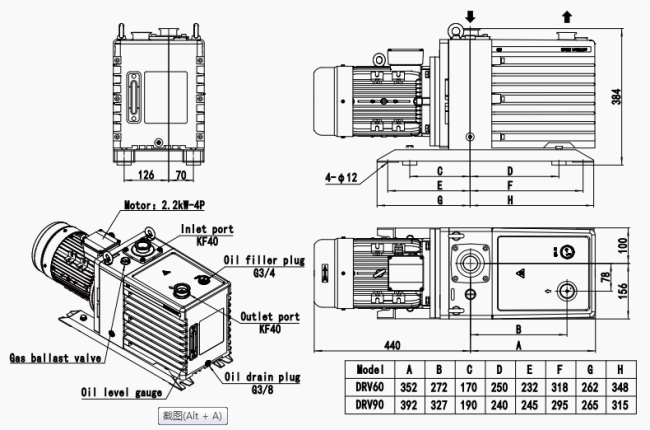

Dimensions
DRV60［90］
Application
Vacuum metallurgy
Thin film coating
Freeze drying
