10 m³/h air cooled Oil free vacuumpump,IDSP10 dry scroll pump
10 m³/h Vacuum Pump, Sky Blue Oil-Free Dry Scroll Pump IDSP10
Description
The scroll pump is a new type of oil-free mechanical pump characterized by its simple construction, effective sealing, and high vacuum capabilities.
As a high-technology product, it has highly technical requirements in design and manufacture. With its benefits of low consumption, long working life, high reliability, and low noise, it has an incomparable advantage in the application of clean processes and is widely popular in the market. To meet the requirements of domestic and overseas customers, Baosi Vacuum developed the GVD and GSP series dry scroll pumps with excellent performance and high cost efficiency.
Technical Data
| Model | IDSP10 | |
| Nominal rotational speed | rpm | 1800 |
| Displacement | m³h-1 | 10 |
| Motor power | W |
400 |
| Ultimate Vacuum | mbar | 0.008 |
| Voltage input | V | 1-ph, 100-240 |
| Noise level | dB (A) | 54 |
| Inlet flange | - | KF25 |
| Exhaust flange | - | KF25 |
| Max water vapour pumping rate | gh-1 | 136 |
| Leak tightness | mbar ls-1 | ＜1×10-6 |
| Weight | kg | 28 |
| Cooling Method | - | Air cooled |

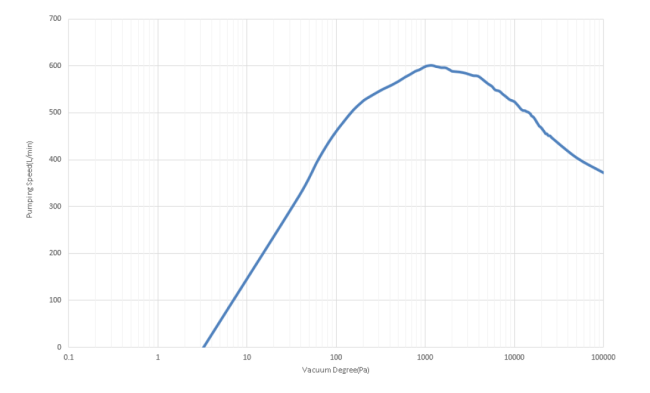

Performance Curve

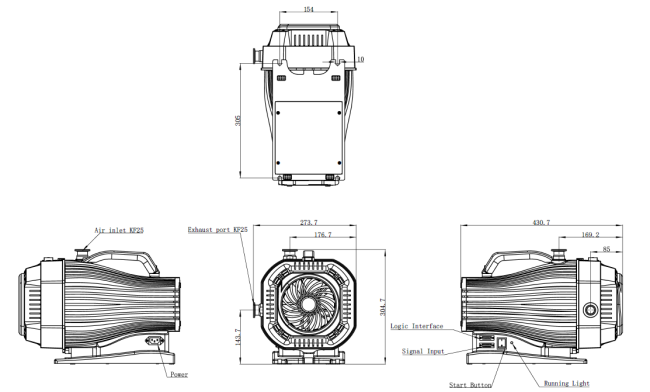

Dimensions
Application
- Electron microscopy
- High-energy physics
- Mass spectrometry
- Glove box
- Beam welding/laser welding
- Space simulation
- Coating(PVD/CVD)
