3 m³/h air cooled 10kgs Oil free vacuum pump, dry scroll pump DSP3
Price:
$
MOQ:
1
Delivery Time:
Negotiable
Brand:
BAOSI
Product Description
3 m³/h air-cooled 10kgs Oil-free vacuum pump, dry scroll pump DSP3
Description:
The scroll pump is a new kind of oil-free mechanical pump with features of simple construction, good sealing, high vacuum, etc. As a high-technology product, it has highly technical requirements in design and manufacture. With the benefits of low consumption, long working life, high reliability, and low noise, it has the incomparable advantage in the application of clean processes and has popular use in the market. To meet the featured application requirement of domestic and overseas
Application :
- Electron microscopy
- High-energy physics
- Mass spectrometry
- Glove box
- Beam welding/laser welding
- Space simulation
- Coating(PVD/CVD)
Parameter:
| Model | DSP3 | |
| Nominal rotational speed | rpm | 3200 |
| Displacement | m³h-1 | 3 |
| Motor power | W | 180 |
| Ultimate Vacuum | mbar | 0.15 |
| Voltage input | V | 1-ph, 100-240 |
| Noise level | dB (A) | 55 |
| Inlet flange | - | KF16 |
| Exhaust flange | - | KF16 |
| Leak tightness | mbar ls-1 | ＜1×10-6 |
| Weight | kg | 10.5 |
| Cooling Method | - | Air cooled |

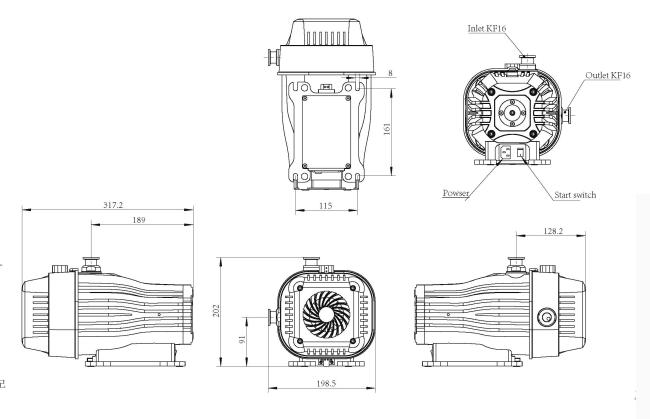

Outline Drawing:

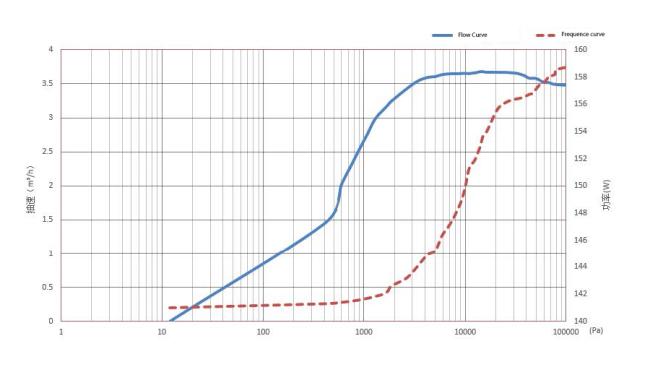

Pumping Curve :
