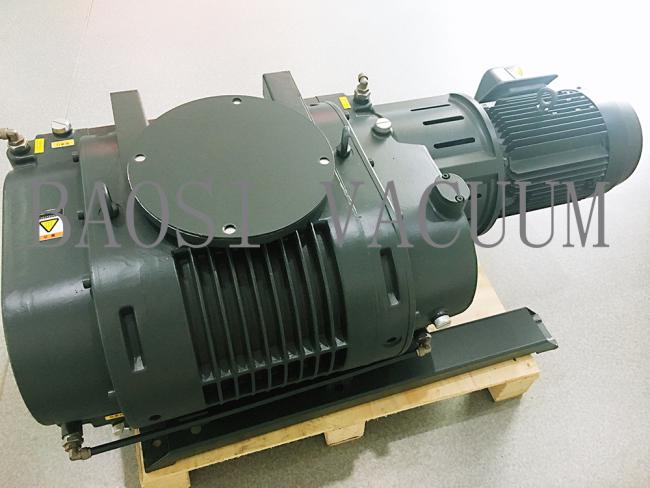

BSJ600L 600 L/s Booster Vacuum Pump / Roots Vacuum Pump Whole Aluminium Alloy Made
Whole Aluminium Alloy Made 600L/s 50Hz 5hp Army Green Booster Pump, Mechanical Roots Pump BSJ600L
Description :
We offer you a comprehensive consultationservice.
Only the vacuum technology combined with application experience can find the right solution.
Characteristics:
- Special shaft seal is used to achieve the long stable running without oil leakage.
- The use of oil-free intermediat seal,multiple sealed way to ensure the hight clean vacuum environment in the rotor chamber .
- Advanced proceesing to ensure the good geometrical symmetry of the rotors,as well as low noise and long service life.
- Compact structure,light weight and small volume .
Technical Parameter :
| Model | Units | BSJ600L | |
| Pumping Rate | 50 Hz | m³h-1 / Lmin-1 | 2000/33330 |
| 60 Hz | 2400/40000 | ||
| Max allowed differential pressure | 50 Hz | Pa | 5.6x103 |
| 60Hz | Pa | 4.7x103 | |
| Max Inlet Pressure | 50Hz | Pa | 8.0x103 |
| 60Hz | Pa | 6.7x103 | |
|
Ultimate Vacuum
|
mbar |
4×10-4
|
|
| Motor Voltage | v | 380V~440V | |
| Motor Power | kW(hp) | 5.0 (7.5) | |
| Inlet | -- | VG200 | |
| Outlet | -- | VF200 | |
| Flow Rate | L/min | 3 | |
| MPa | 0.1 | ||
| Water Temp. | 5~30 | ||
| Oil Need | L | 4.0 | |
| Ambient Temp. | ℃ | 5~40 | |
| Vacuum Pump Oil | -- | BSO-46 | |
Note: The value of 'Ultimate Pressure' in this sheet is measured by Pirani gauge when the Baosi special pump oil is used,and the value should be 4x10-3 if the Mcleod gauge is used.

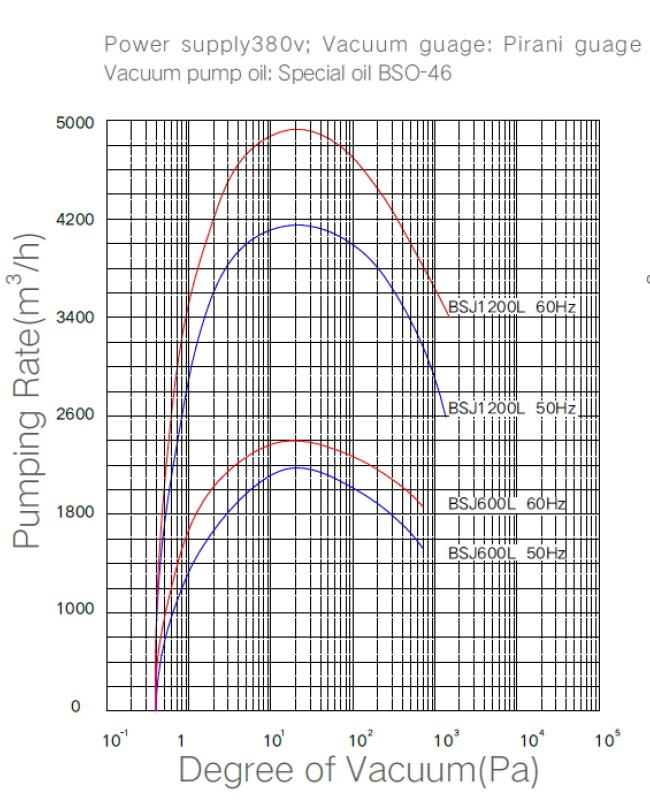

Performance Curve:
Dimensions:
Applications
It can be matched with backing pump used in Leak testing systems,Vacuum Coating,Semiconductor production,Vacuum Furnace,Chemistry ,Electric Power Engineering,Machinofacture,
Optical Filming,Solar energy,Analysis and laboratory and other so many fields.
We provide you with individual support,we train you and we offer 24/7 service worldwide.
