16L/s oil mist filter for two stage oil rotary vane vacuum pump BSF16B
16L/s oil mist filter for two-stage oil rotary vane vacuum pump BSF16B
Description:
When the oil rotary vacuum pump is operated at atmospheric pressure or under low vacuum, the oil will be discharged together with the gas that has been pumped.
This kind of exhaust gas is composed of many tiny oil droplets and exhausted in the form of smoke through the pump outlet.
The oil mist filter is used to ensure a clean environment to protect the equipment from oil mist pollution.
Application :
Used with an oil rotary vacuum pump or a vacuum system.
Parameter:
| Model | BSF16B |
| Filter Specification | 16L |
| Maximum Processing Flow m³/h(L/s) | 57.6(16) |
| Inlet | KF40 |
| Outlet | KF40 |
| Pump |
DRV24 BSV30/BSV40(underload) DRV30/DRV40(underload) |
| Weight(kgs) | 1.5 |

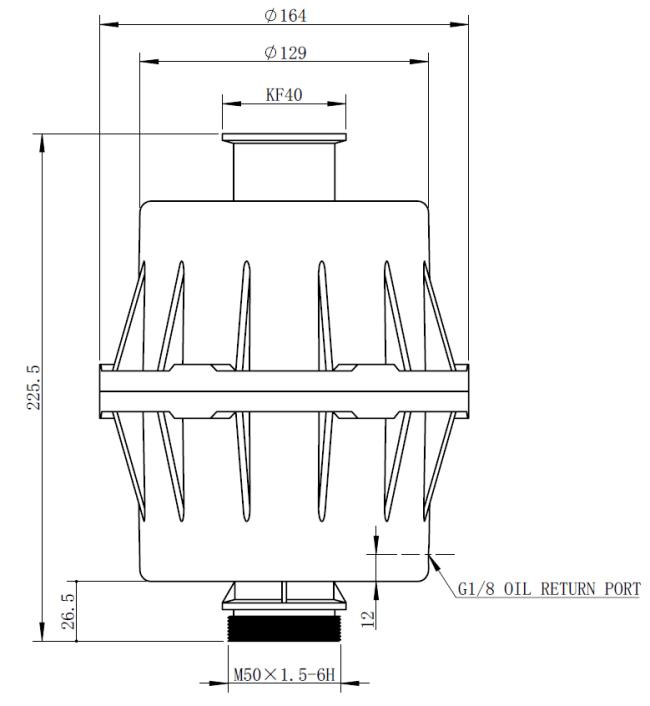

Outline Drawing:
