Water Cooled Dry Vacuum Pump 1200m³/h,≤0.15Pa,1.9kw,GRM1201
Price:
1
MOQ:
1
Delivery Time:
7 working days
Brand:
BSC
Product Description
BAOSI VACUUM DRY VACUUM PUMP GRM1200 Water-cooled,pumping speed 1200m³/h, 380V
Feature:
- Utilizes a permanent magnet synchronous motor for lower energy consumption.
- Advanced rotor structure enhances the pump's dust removal capacity.
- Insensitive to dust and water vapor in the pumped gas;
- Compact structure, small overall size, and high system efficiency;
- Comprehensive protection functions and strong self-adaptability;
- Low vibration and noise during operation; an advanced lip seal and labyrinth seal system, combined with nitrogen purging, effectively ensures an oil-free pump chamber, improving the vacuum cleanliness of the process chamber.
- Remote control and monitoring functions are possible via the I/O interface and RS-485 interface (Moudbus protocol).
Technical Parameter
| Model | Unit | GRM1201 | ||
| Pumping speed | m³/h | 1200 | ||
| Ultimate pressure | Pa | ≤0.15 | ||
| Rated Power | kW | 1.9+1.9 | ||
| Rated Voltage | V | 380 | ||
| Cooling Water | Pressure | MPa | 0.1-0.6 | |
| Flow | L/min | ≥4 | ||
| Temp. | ℃ | 5~30 | ||
| Connector | - | G3/8 | ||
| N2 Purge | Pressure | MPa | 0.2~0.6 | |
| Flow | L/min | 12~50 | ||
| Connector | - | G1/4 | ||
| Inlet | - | ISO160 | ||
| Outlet | - | KF25 | ||
| Noise | dB | ≤63 | ||
| Working Temp. | ℃ | 5~40 | ||
| Weight | kgs | 260 | ||

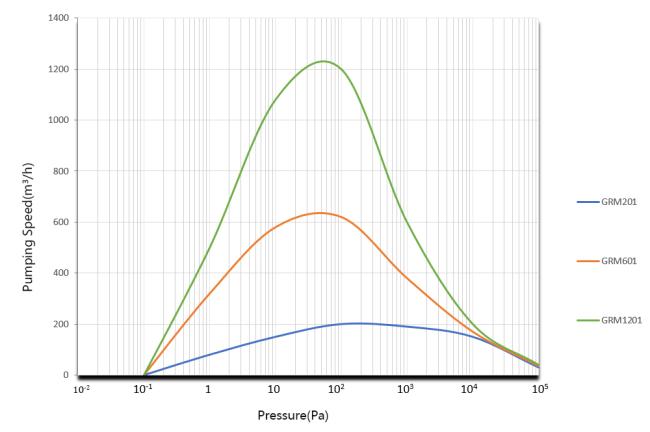

Pumping Curve
OUTLINE DIMENSIONAL DRAWING
1. Semiconductor & Microelectronics Industry
2. Vacuum Coating Industry
3. Pharmaceutical & Biochemical Industry
4. Chemical & Petrochemical Industry
5. Food Processing Industry
6. Metallurgical & Heat Treatment Industry
7. Environmental Protection Industry
8. New Energy Industry
9. Aerospace & Aviation Industry
10. Machinery Manufacturing & Mold Industry
11. Optical & Glass Industry
Core Advantages for These Industries
