Preventer Plate Laser Shielding Material Laser Safety Sheet 1200×1000×5mm
Preventer Plate 520nm Laser Protection Window 1200mm × 1000mm × 5mm Safety Sheet
The Laser Safety Windows supplied by Xi’an Xinland International Co., Ltd. Meanwhile, The Laser Safety Windows wavelength including 190~550nm, 580~750nm, 800~1100nm, 800~1700nm, 850~1300nm 10600nm and CO2 laser.The products are in high protection grade. They are produced without any optical distortion and flaw.
Specifications:
| Dimension | 1280*1000*5mm |
| Optical Density(OD) | 5+ |
| Protection Wavelength | 190~550nm |
| Thickness | 5mm |
| VLT | 15% |

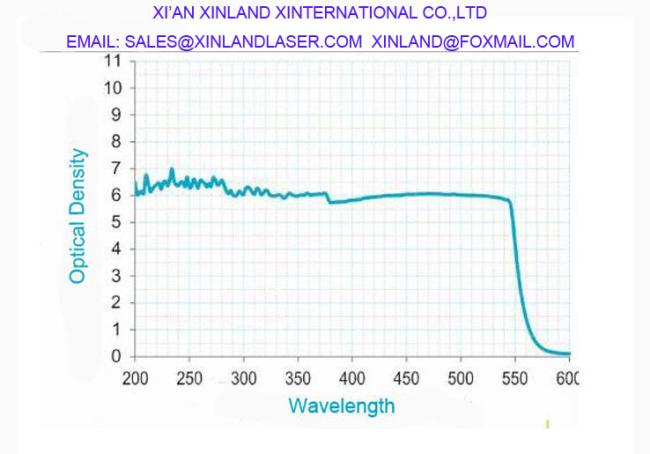

Product Diagram :
Notes:
1. We can cut it free according to the customer's requirements, The whole sheet maximum size is 1280*1000*5mm.
2. The laser safety window can extensively apply in laser industry manufacturing, range finding,aligning,medical treatment, etc.
Packaging Details: Protective Packing
Delivery Time: 3-7 working days
Our Services:
Shipping Method: DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
Payment Method: PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and .
Laser Safety Window Catalog:
| Series NO. | Protection Wavelength | Dimension(mm) | OD |
| XL1PW4D3T | 190~550nm | 1280*1000*3.3mm | 4+ |
| XL1PW5D5T | 190~550nm | 1280*1000*5mm | 5+ |
| XL2PW4D5T | 580nm~750nm | 1280*1000*5mm | 5+ |
| XL3PW4D5T | 800~1100nm | 1280*1000*5mm | 4+ |
| XL3PW6D5T | 800~1100nm | 1280*1000*5mm | 6+ |
| XL3PW8D5T | 800~1100NM | 1280*1000*5mm | 8+ |
| XL3PW4GD5T | 190~540nm & 800~1100nm | 1280*1000*5mm | 4+ |
| XL4PW4D5T | 190~450nm & 800~1700nm | 1280*1000*5mm | 4+ |
| XL5PW4D5T | 190~420nm & 860~1300nm | 1280*1000*5mm | 4+ |
| XL6PW4D3T | 1064nm&10600nm | 1200*1000*3.3mm | 4+ |
| XL6PW5D5T | 1064nm&10600nm | 1200*1000*5mm | 5+ |
| XL6PW6D5T | 1064nm&10600nm | 1200*1000*5mm | 6+ |
| XL7PW4D5T | 10600nm | 1200*1000*5mm | 6+ |
Our advantages:
1) Customized services available.
2) Complete product series and styles covering wide applications.
3 High quality products with 100% quality guaranteed.
4) Comfortable hand feeling with cool appearances.
5) Sufficient stock in our warehouse to ensure timely delivery or small batch delivery.
6) Strong comprehensive strength, with 4 workshops and quite a few offices covering an area of 5,000 square meters.
7) Quick delivery services via DHL, UPS, FedEx, SF or EMS to make sure the goods arrives at the worldwide destinations within 7 days.

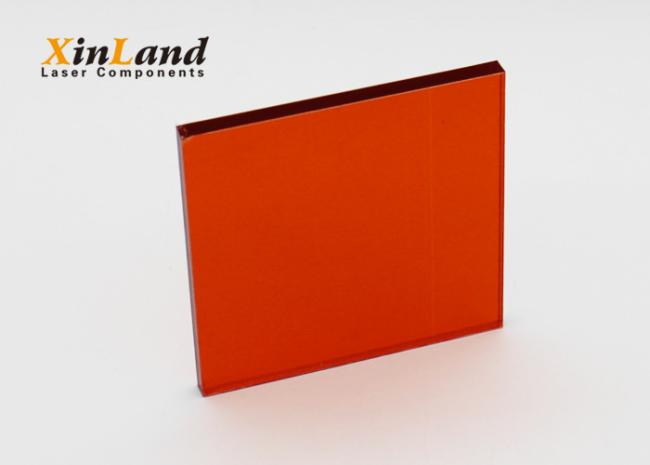

Product Photo:
